Product Description

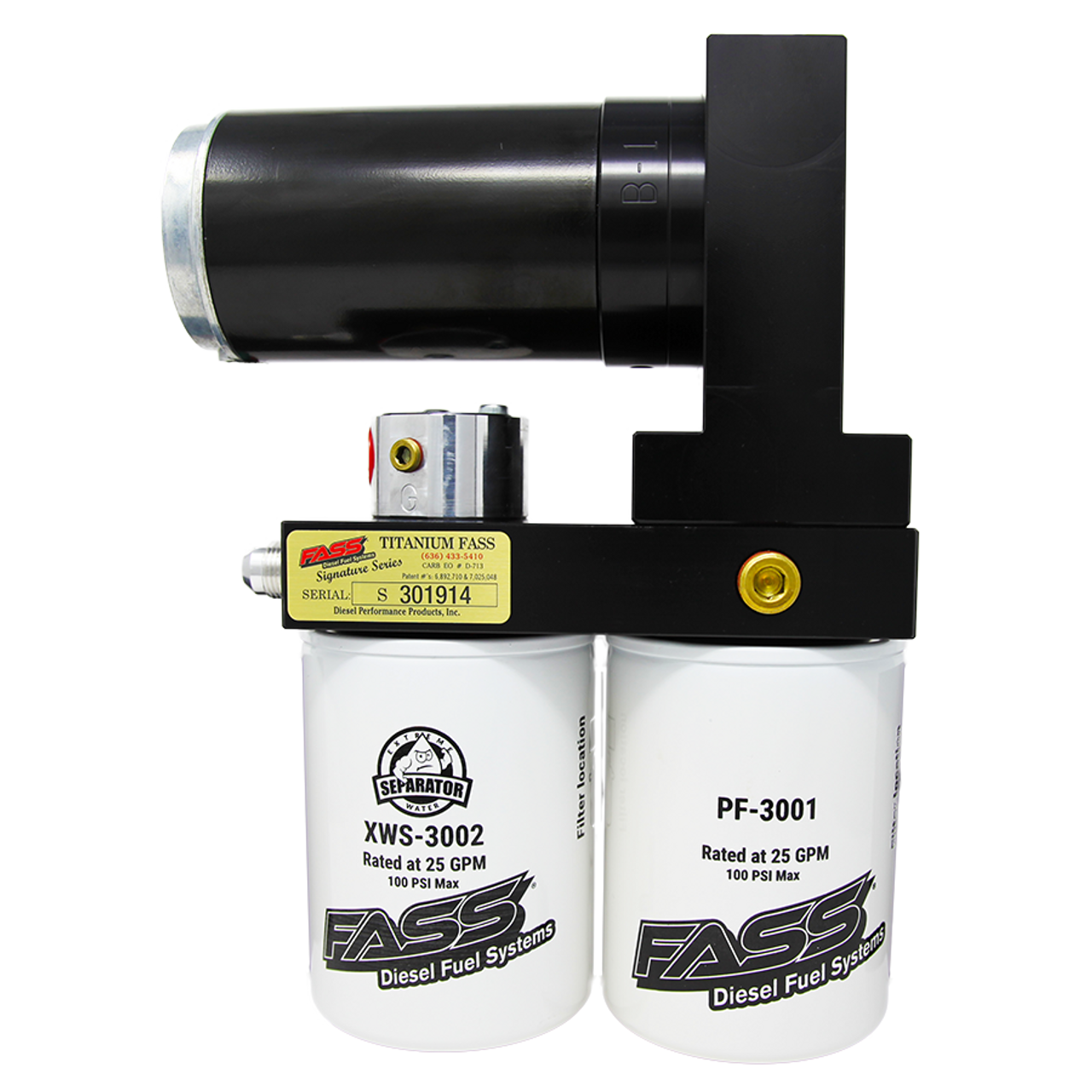

FASS TSF14290F240G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 290F 240GPH@45–50 PSI FOR 1999–2007 FORD POWERSTROKE 7.3L AND 6.0L
The FASS TSF14290F240G is a high-flow 240 GPH Titanium Signature Series system engineered for the 1999–2007 Ford Powerstroke 7.3L & 6.0L. It delivers a preset 45–50 PSI to support serious power while polishing fuel with 2-micron absolute filtration, FASS Whisper Technology (quiet operation), Mass Flow Return (MFR) and Performance Radius Cuts (PRC) for smooth, air-free delivery.
Fitment & System Notes
- Vehicles: 1999–2007 Ford F-250/F-350/F-450 Super Duty, Powerstroke 7.3L & 6.0L.
- Output/Pressure: 240 GPH @ preset ~45–50 PSI.
- Horsepower support: Typically suitable for ~900–1200 HP builds (application dependent).
- Filter strategy (current): Run XWS3002 Extreme Water Separator on the pressure side and PF3001 Particulate Filter on the suction side. Extended-length options: XWS3002XL + PF3001XL.
- Includes: Bulkhead & 5/8" Suction Tube kit and bolt-on bed-bolt brackets for streamlined install.
Installation & Manuals
Access the official FASS manuals here: FASS Installation Manuals. Direct system manual: TS-F14-290F/240G Installation Manual (PDF).
Cross-Reference & Related FASS Items (CPP Diesel)
- Other 99–07 Ford Titanium Signature systems: TSF14180F140G (140GPH), TSF14250F220G (220GPH), TSF15290F240G (Excursion).
- PLUS / No-Drop variants: TSPF14290F240G (PLUS), NDTSPF14290F240G (No-Drop PLUS).
- Filters & service parts: XWS3002, PF3001, FP3000 Filter Pack, FP3000XL Filter Pack.
FAQ
What pressure does this Ford system run?Preset ~45–50 PSI for the 7.3L/6.0L Powerstroke platform.
Which filters should I use?
Use the current pair: XWS3002 (pressure side) and PF3001 (suction side). Extended-length: XWS3002XL + PF3001XL.
What’s included in the kit?
Complete TSF system with bracketry, plumbing, bulkhead and 5/8" suction tube kit. See the install manual for the full parts list.
Is it loud?
FASS Whisper Technology keeps operating noise extremely low while maintaining high flow.
Specifications for Fass TSF14290F240G
| Brand | FASS Fuel Systems |
| Part Number | TSF14290F240G |
| Flow / Pressure | 240 GPH @ ~45–50 PSI (preset) |
| Engine / Years | Ford Powerstroke 7.3L & 6.0L (1999–2007) |
| Filter Pair | XWS3002 (pressure side) + PF3001 (suction side) |
| UPC | 850044106554 |
| GTIN | 0850044106554 |
| Package Dimensions | 14.00" W × 11.50" H × 18.00" D |
| Shipping | Free Shipping (Continental U.S.) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
