PACBRAKE

PACBRAKE HP10164 ONBOARD AIR WITH 2 1/2 GALLON AIR TANK W/AIR COMPRESSOR AIR TANK FITTINGS

(No reviews yet) Write a Review
SKU:
PACHP10164
MPN:
HP10164
Shipping:
Calculated at Checkout
  • PACBRAKE HP10164 ONBOARD AIR WITH 2 1/2 GALLON AIR TANK W/AIR COMPRESSOR AIR TANK FITTINGS
  • PACBRAKE HP10164 ONBOARD AIR WITH 2 1/2 GALLON AIR TANK W/AIR COMPRESSOR AIR TANK FITTINGS
  • PACBRAKE HP10164 ONBOARD AIR WITH 2 1/2 GALLON AIR TANK W/AIR COMPRESSOR AIR TANK FITTINGS
$350.42

Description

OVERVIEW

Onboard Air Kit with 2.5 gallon air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories.

Fill your tires (tp to 33") and check tire pressure. Inflate air mattresses, sports balls, beach toys, etc.. Blow air for cleaning, dusting and quick removal of dust and debris. Onboard air is the ultimate in convenience!

PRODUCT DESCRIPTION

Onboard Air Kit with 2 1/2 Gallon Air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories

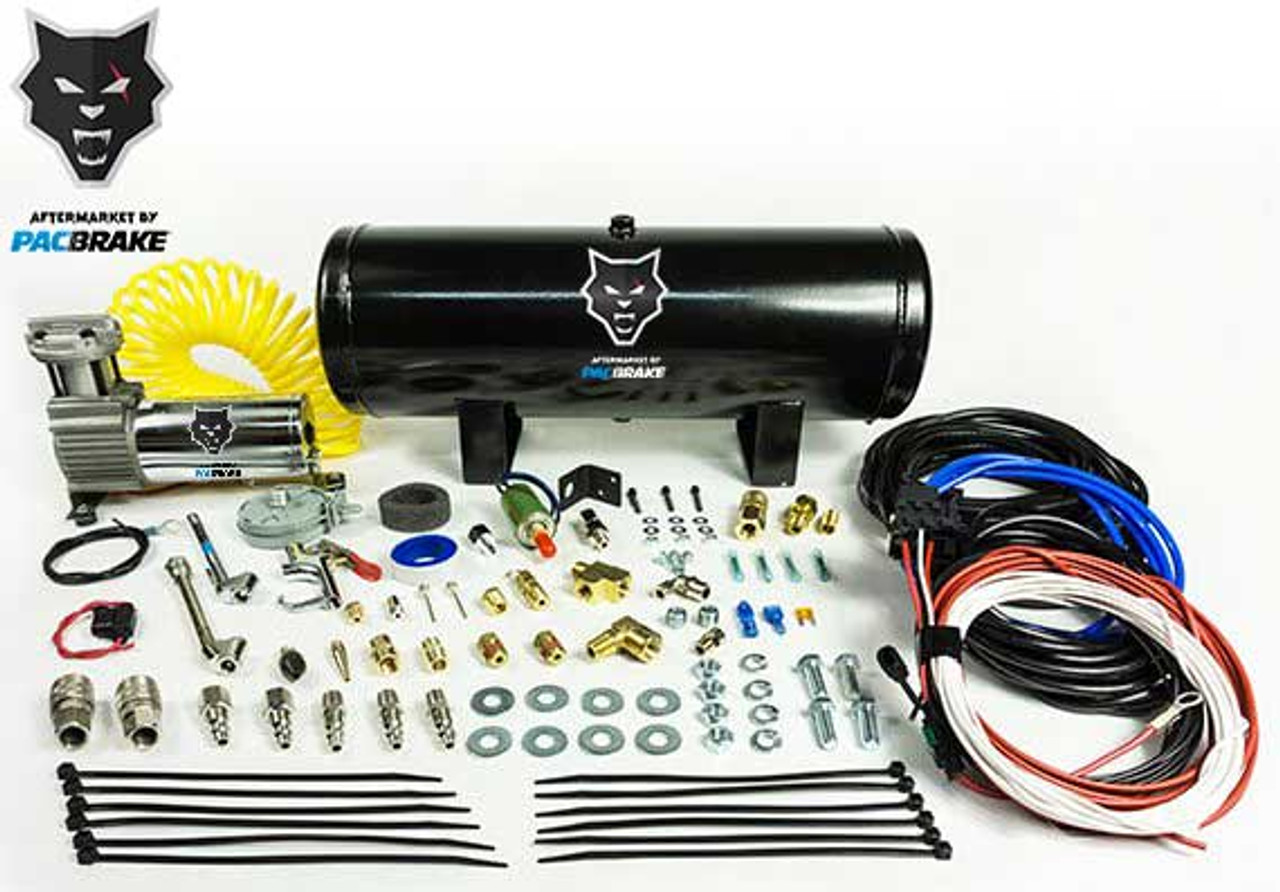

Each Onboard Air System comes complete with:

  • HP325 Series 12V DC compressor (Part Number HP10143)
  • 2 1/2 Gallon air tank (Part Number HP10013)
  • Fittings
  • Pressure switch
  • Relay(s)
  • Electrical connectors and all applicable accessories

Compressor Specifications

  • (Part Number HP10143)-12 VDC
  • 100 percent (1 Hour at 100 PSI) duty cycle
  • 1/4 HP
  • Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
  • Weight is 5.5 lbs

Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

Air Tank Specifications

  • (HP10013)-2 1/2 gallon capacity
  • 5-3/8' NPT ports
  • Rust inhibitor applied to inside of tank
  • Max working pressure 150 PSI
  • Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)
  • Weight is 9.8 lbs
  • Welded on mounting brackets.

VEHICLE APPLICATION



  • Universal



APPLICATION NOTES

  • This kit comes with a 2.5 Gallon Air Tank

FEATURES



  • Each onboard air system comes complete with a steel air tank, pressure switch, relay(s), HP325 series compressor, fittings, electrical connectors, Pacbrake curly hose, and an air accessory kit housed in a heavy duty zipped canvas bag for easy storage on the go.
  • Use it for Air Horns, Air Lockers and filling tires upto 33-inches.
  • Inflate air mattresses, sports balls, beach toys, etc.
  • Blow air for cleaning, dusting and quick removal of dust and debris.
  • 12VDC
