PACBRAKE HP10163-AL ONBOARD AIR WITH 1/2 GALLON AIR TANK W/AIR COMPRESSOR AIR TANK FITTINGS

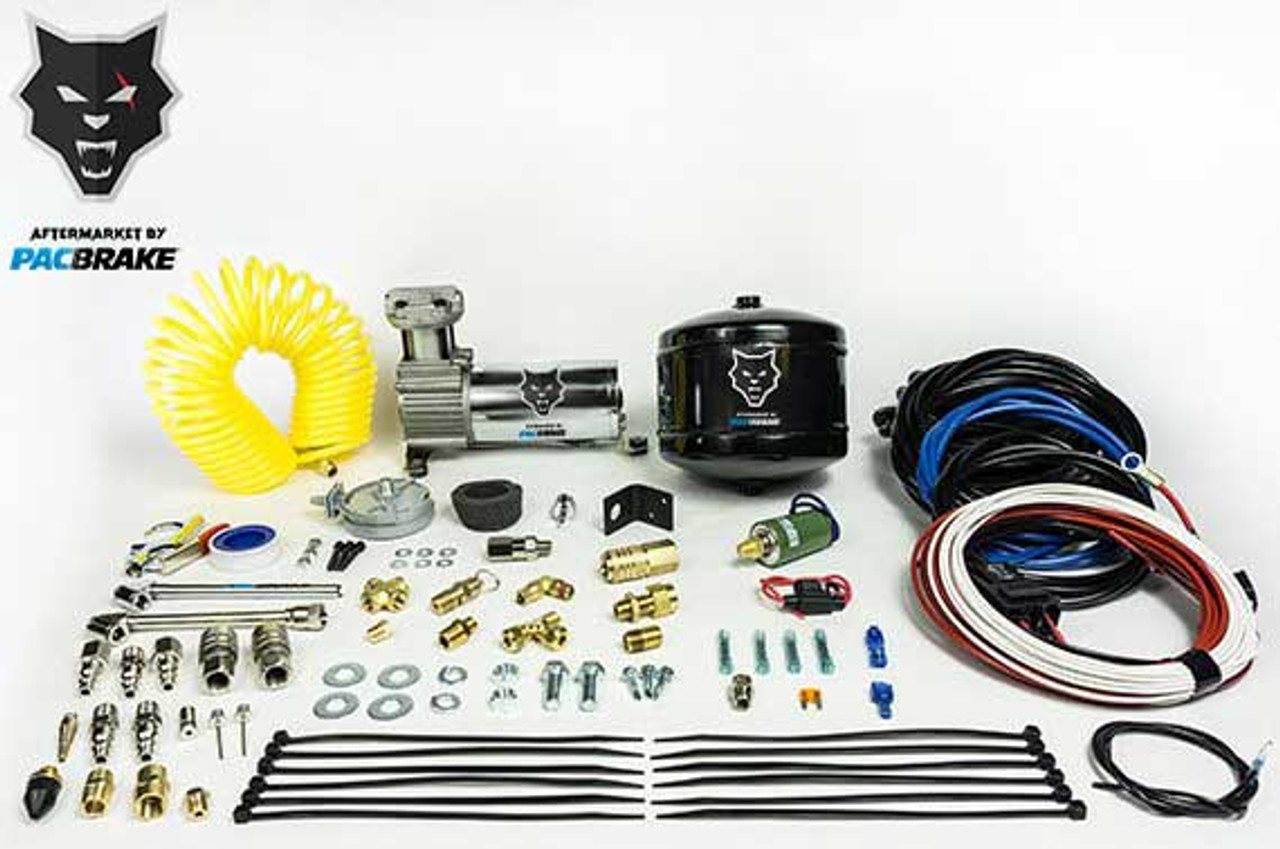

Onboard Air Kit with 1/2 Gallon Air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories.

Each Onboard Air System comes complete with

• HP325 Series 12V DC compressor (Part Number HP10143)
• 1/2 Gallon aluminum air tank
• Fittings, pressure switch, relay(s)
• Electrical connectors and all applicable accessories

Compressor features

• Copper wire wound permanent magnet motor
• Oil-less design; sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve

Compressor Specifications

• Part Number HP10143 -12 VDC
• 100 percent (1 Hour at 100 PSI) duty cycle
• 1/4 HP
• Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
• Weight is 5.5 lbs.
• 2-1/4 inch NPT ports
• Rust inhibitor applied to inside of tank
• Max working pressure 150 PSI
• Size is 6.4 inch x 5.5 inch x 6.5 inch (LxWxH)
• Weight is 3.4 lbs
• Welded on mounting brackets
