Product Description

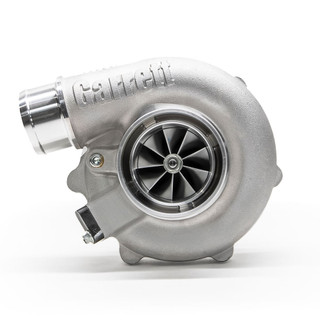

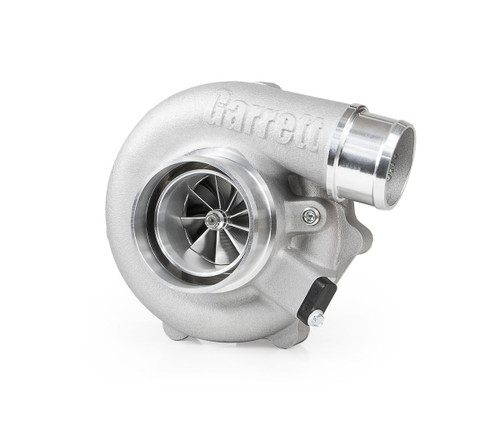

The Garrett 934115-5002S G25-585 Reverse Rotation G-Series II Turbocharger is engineered for high-performance applications requiring compact size, fast spool, and exceptional efficiency. Featuring reverse rotation capability, this turbo is ideal for unique engine configurations, twin-turbo setups, and custom fabrication projects.
Built on Garrett’s proven G-Series II platform, the G25-585 delivers up to 585 horsepower with improved aerodynamics, enhanced compressor efficiency, and a robust center housing for durability under extreme conditions. The 0.92 A/R turbine housing with V-band inlet and outlet ensures optimal exhaust flow and simplified installation.
This internally wastegated (IWG) turbocharger provides precise boost control and is perfect for street, track, and motorsports builds demanding high reliability and performance.
Key Features:
- G-Series II aerodynamics for maximum efficiency and power
- Supports up to 585 horsepower
- Reverse rotation design for custom and twin-turbo applications
- 0.92 A/R turbine housing for balanced spool and top-end power
- V-band inlet and outlet for secure, leak-free connections
- Internally wastegated (IWG) for precise boost control
- Compact design for tight engine bay fitment
Fitment:
- Universal / Custom Applications
- Ideal for twin-turbo and reverse rotation setups
- Compatible with gasoline and diesel performance builds
- Requires custom fabrication and tuning
FAQ
What is a reverse rotation turbo?
A reverse rotation turbo spins in the opposite direction of standard turbos, allowing for mirrored twin-turbo setups and unique engine bay configurations.
How much horsepower can this turbo support?
The G25-585 supports up to approximately 585 horsepower depending on engine setup and tuning.
Is this turbo internally wastegated?
Yes, this model includes an internal wastegate (IWG) for easier installation and boost control.
Is this a direct bolt-on turbo?
No, this is a universal performance turbocharger and requires custom fabrication for installation.
Specifications for Garrett 934115-5002S
| Specification | Details |
|---|---|
| Part Number | 934115-5002S |
| Brand | Garrett Motion |
| Series | G-Series II |
| Model | G25-585 |
| Rotation | Reverse Rotation |
| Horsepower Rating | Up to 585 HP |
| Turbine Housing A/R | 0.92 A/R |
| Inlet Type | V-Band |
| Outlet Type | V-Band |
| Wastegate | Internal (IWG) |
| Cooling | Oil & Water Cooled |
| UPC | N/A |
| GTIN | N/A |
| Shipping Weight | Approximately 25 lbs |
| Shipping Dimensions | 14" x 14" x 12" |
