Product Description

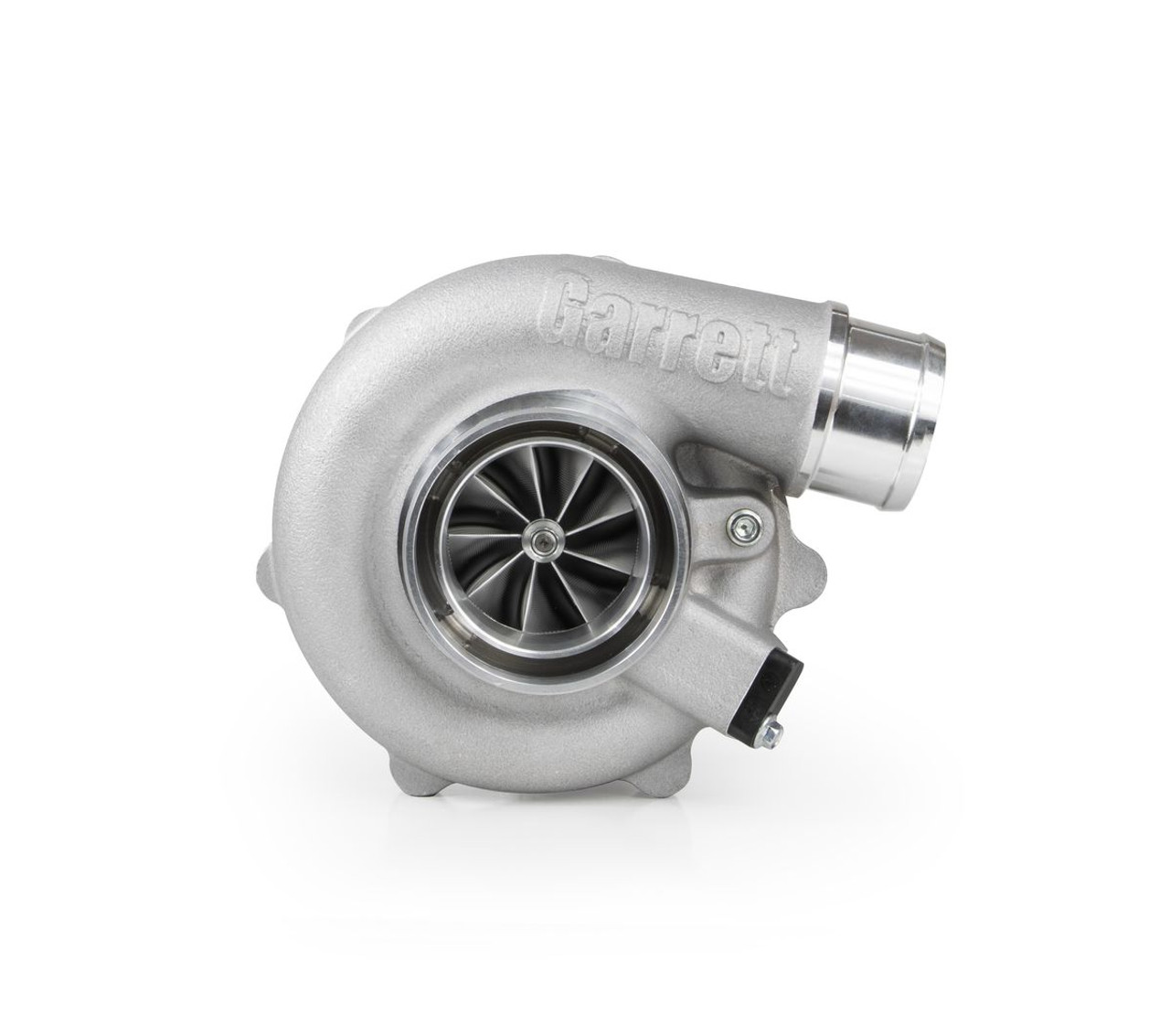

The Garrett 934076-5005S G25-700 G-Series II Turbocharger delivers cutting-edge performance, fast spool, and high efficiency for street and race applications. Designed with Garrett’s latest G-Series II aerodynamics, this turbo provides increased airflow, improved transient response, and higher horsepower capability compared to previous generations.
Capable of supporting up to 700 horsepower, the G25-700 is ideal for high-performance builds that demand quick boost response without sacrificing top-end power. The 0.72 A/R turbine housing paired with a V-band inlet and outlet ensures optimal exhaust flow and easy installation in custom turbo setups.
This internally wastegated (IWG) configuration simplifies installation while maintaining precise boost control, making it a perfect choice for performance enthusiasts, racers, and custom fabrication builds.
Key Features:
- Supports up to 700 horsepower
- G-Series II compressor aerodynamics for increased efficiency
- Fast spool and excellent transient response
- 0.72 A/R turbine housing for balanced performance
- V-band inlet and outlet for secure, leak-free connections
- Internally wastegated (IWG) for simplified boost control
- Compact design ideal for tight engine bays
Fitment:
- Universal / Custom Turbo Applications
- Gasoline and Diesel Performance Builds
- Fabrication Required for Installation
FAQ
How much horsepower can the G25-700 support?
This turbocharger is rated to support up to approximately 700 horsepower depending on engine setup and tuning.
What makes the G-Series II different?
G-Series II turbos feature improved compressor and turbine aerodynamics, providing faster spool, higher efficiency, and increased power over the original G-Series lineup.
Is this turbo internally wastegated?
Yes, this model includes an internal wastegate (IWG), making it easier to install and control boost without an external wastegate.
What type of connections does this turbo use?
It features V-band inlet and outlet connections for secure sealing and simplified installation.
Specifications for Garrett 934076-5005S
| Specification | Details |
|---|---|
| Part Number | 934076-5005S |
| Brand | Garrett Motion |
| Turbo Series | G-Series II |
| Model | G25-700 |
| Horsepower Rating | Up to 700 HP |
| A/R Ratio | 0.72 |
| Turbine Housing | V-Band Inlet / V-Band Outlet |
| Wastegate Type | Internal Wastegate (IWG) |
| Cooling Type | Oil & Water Cooled |
| UPC | N/A |
| GTIN | N/A |
| Shipping Weight | Approximately 25 lbs |
| Shipping Dimensions | 14" x 14" x 14" |
| Prop 65 Warning | This product may contain chemicals known to the State of California to cause cancer and reproductive harm. |
