Product Description

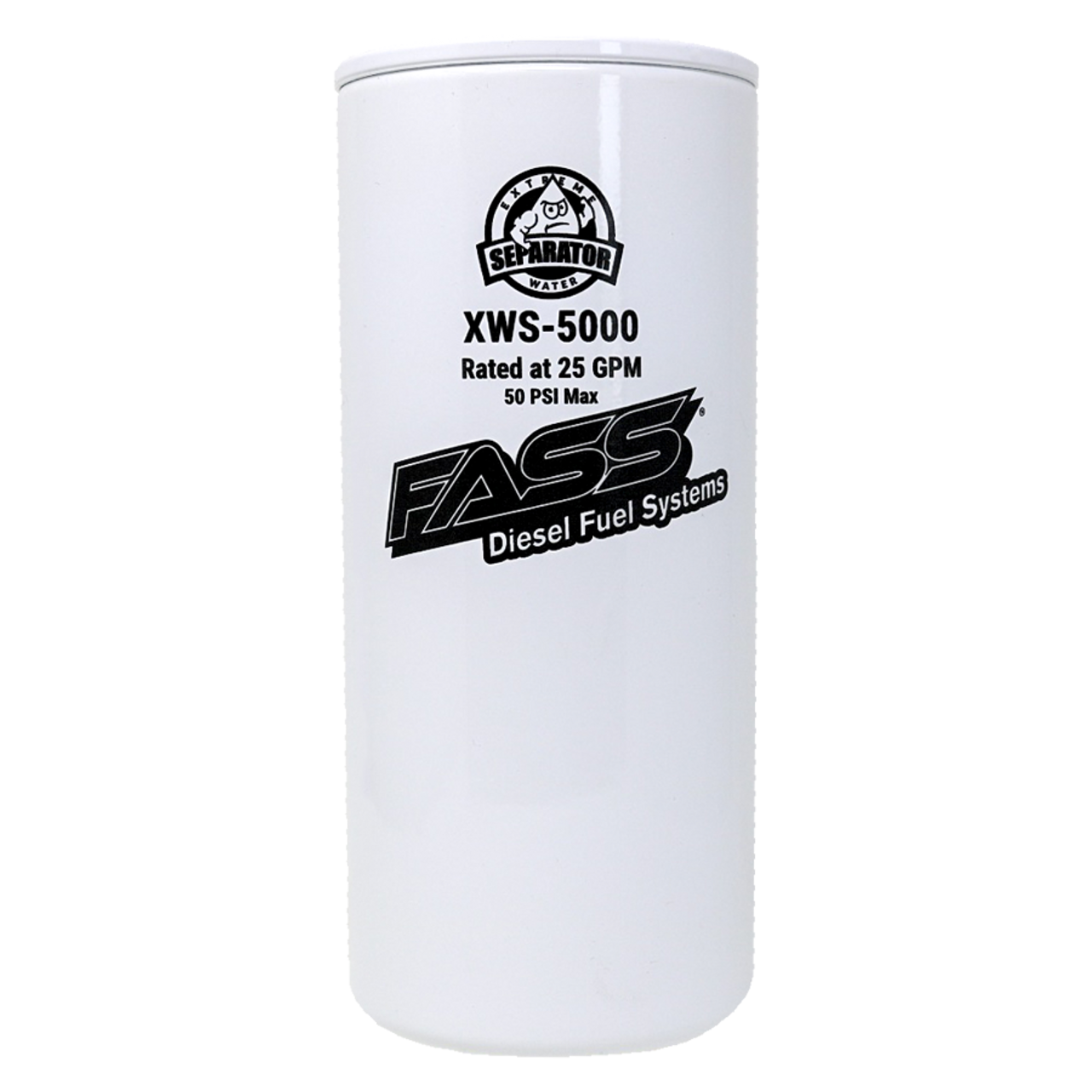

FASS XWS5000 1-12" TRANSFER TANK FILTER is an extreme water separator designed specifically for diesel transfer tanks and fuel transfer systems. It traps water and contaminants down to 10 microns to protect your equipment when filling tractors, construction machinery, generators, and other diesel-powered assets.
- Purpose-built for transfer/storage tank use (not a replacement for engine-mounted FASS pump filters)
- 10-micron filtration with over 99% water removal
- 1"-12 thread for common transfer tank heads
- High flow capability suitable for rapid fueling
Fitment
Universal: Fits transfer tank/filter heads with a 1"-12 UNF thread. Intended for off-vehicle transfer/dispense systems. For FASS pump systems on the vehicle, use the XWS3002 series water separators.
Cross-Reference / Related FASS Items (CPP Diesel)
- FASS XWS3002 Extreme Water Separator (for FASS on-vehicle systems)
- FASS XWS3002XL Extended Length Extreme Water Separator
- FASS PF3001 Particulate Filter
- FASS PF3001XL Extended Length Particulate Filter
- FASS FLP3000 Fleet Filter Pack
Installation & Manuals
View FASS installation manuals and guides here: https://www.fassride.com/manuals.
Specifications for FASS XWS5000
| Brand | FASS Fuel Systems |
| Part Number | XWS5000 |
| UPC | 860003521106 |
| GTIN | 0860003521106 |
| Thread | 1"-12 UNF |
| Filtration Rating | 10 micron |
| Water Separation | >99% (element traps water; no drain) |
| Flow Capability | Up to ~25 GPM (transfer applications) |
| Intended Use | Diesel transfer/dispense systems (not for engine-mounted FASS pump filter heads) |
| Shipping Weight | ~1.6 lb |
| Shipping Method | Ground (Small Parcel) |
| Prop 65 | WARNING: Cancer & Reproductive Harm — www.P65Warnings.ca.gov |
FAQ
Is the XWS5000 a replacement for the XWS3002 on my FASS pump?
No. XWS5000 is for transfer tanks. For FASS pump systems on the vehicle, use XWS3002/XWS3002XL.
What thread does it use?
It mounts to a 1"-12 UNF head (common on many transfer tank filter bases).
What micron rating and flow can I expect?
It’s a 10-micron water separator designed for high flow transfer duties (up to ~25 GPM).
Does it have a water drain?
No. The media captures and holds the water within the element.
