Product Description

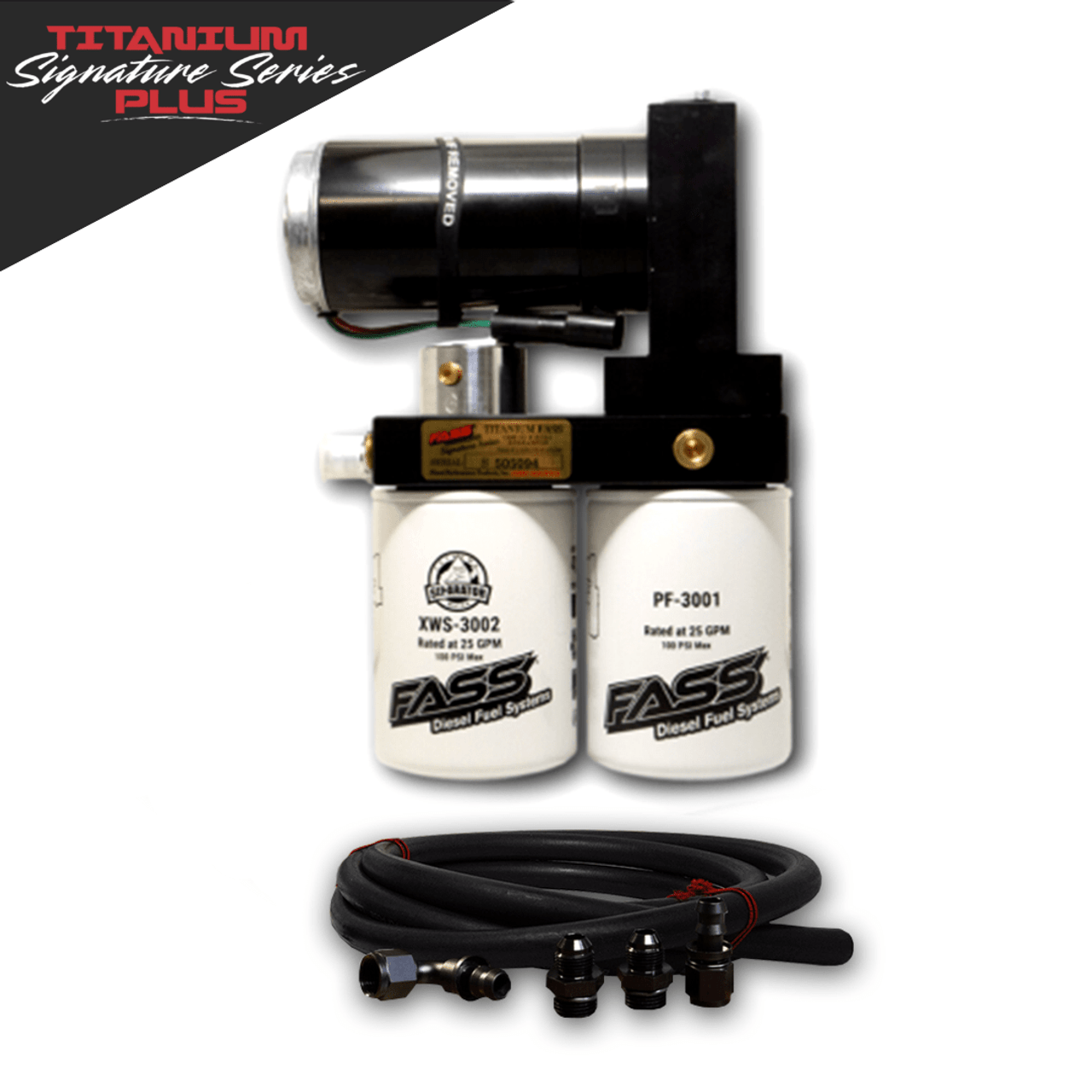

Give your 2000–2005 Ford Excursion 6.0L/7.3L a steady, air-free fuel supply with the FASS TSPF15180F140G Titanium Signature Series PLUS 140 GPH system. It combines FASS Whisper Technology, advanced air/vapor separation, and 2-micron absolute filtration to protect injectors and stabilize rail pressure on builds up to 700 HP.
Why Choose TSPF15180F140G
- 140 GPH flow to support stock–700 HP Excursion builds.
- Air/vapor separation + integrated water separation + 2-micron filtration.
- ORB fittings, 6061 black-anodized components, black fuel line for a clean install.
- Bolt-on bracketry utilizes factory bed bolts—no welding or drilling required.
- Limited lifetime warranty with registration.
Fitment
- 2000–2003 Ford Excursion 7.3L Powerstroke
- 2003–2005 Ford Excursion 6.0L Powerstroke
- Note: Cab & chassis or heavily modified fuel tanks may require minor tweaks.
Recommended FASS Cross-Reference / Complements (CPP Diesel)
- NDTSPF15180F140G No-Drop Series PLUS (stock–700 HP)
- TSPF15250F220G Titanium Signature Series PLUS (700–1100 HP)
- TSPF15290F240G Titanium Signature Series PLUS (1100–1500 HP)
- TSF15180F140G Titanium Signature (non-PLUS alternative)
- Service filters (current style): XWS3002 + PF3001 (or XL length: XWS3002XL + PF3001XL)
- Filter packs: FP3000 and FP3000XL
Installation Instructions
Download the latest Titanium Signature Series manuals directly from FASS: https://www.fassride.com/manuals
FAQ
Q: Is 140 GPH enough for my Excursion?
A: Yes—this PLUS system is rated for stock–700 HP builds, ideal for daily, towing, and mild performance setups.
Q: Which way do the current-style filters mount?
A: Install PF3001 (particulate) on the suction side and XWS3002 (extreme water separator) on the pressure side. For XL, pair PF3001XL with XWS3002XL.
Q: Do I need a “No-Drop” kit?
A: Not required for this PLUS kit, but the No-Drop kit (NDTSPF15180F140G) simplifies pickup plumbing and avoids dropping the tank.
Q: Warranty concerns?
A: The system carries a limited lifetime warranty (with registration). Vehicle warranty impacts vary by dealer—keep install documentation and follow FASS guidelines.
Specifications for Fass TSPF15180F140G
| Brand | FASS Fuel Systems |
|---|---|
| Part Number | TSPF15180F140G |
| Flow Rating | 140 GPH |
| Supported Power | Stock–700 HP |
| Fuel Pressure | ~60–65 PSI (system spec) |
| Vehicle Fitment | 2000–2003 Excursion 7.3L; 2003–2005 Excursion 6.0L |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Package Dimensions (W × H × D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (standard ground) |
| Prop 65 | See California Proposition 65 at P65Warnings.ca.gov |
What’s Included
- Titanium Signature Series PLUS pump assembly (140 GPH)
- Model-specific install kit, lines, fittings, harness
- Mounting brackets & hardware
- Current-style filter set (service with PF3001/XWS3002 or XL equivalents)
Notes
- Follow FASS filter service intervals; use clean diesel fuel.
- Verify injection system health and tuning on modified trucks.
