Product Description

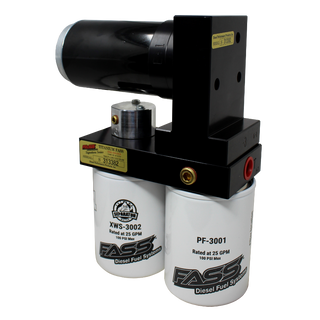

FASS TSF15290F240G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 290F 240GPH FOR 2000–2005 FORD EXCURSIONS 6.0L & 7.3L
The FASS TSF15290F240G delivers a stout 240 GPH at approximately 45–50 PSI for high-demand Ford Excursion builds (2000–2005, 6.0L & 7.3L). It combines air/vapor separation with 2-micron absolute filtration, FASS Whisper Technology for quiet operation, and flow-friendly Performance Radius Cuts with Mass Flow Return to keep fuel polished for the injectors.
Fitment & System Notes
- Vehicle: 2000–2005 Ford Excursion, 6.0L & 7.3L Powerstroke.
- Output: 240 GPH flow, ~45–50 PSI operating pressure.
- Power support: Suitable for high-HP builds; manufacturer guidance supports up to ~1500 HP on this application.
- Filter strategy (current): Run XWS3002 Extreme Water Separator on the pressure side and PF3001 Particulate Filter on the suction side.
- Includes: Bulkhead fitting & 5/8" suction tube kit, bolt-on bracketry for faster installs.
Installation & Manuals
Official manuals are hosted by FASS: FASS Installation Manuals. Direct PDF covering TS-F15-180F/250F/290F (includes 240GPH systems): Titanium Signature Series Installation Manual (PDF).
Cross-Reference & Related FASS Items (CPP Diesel)
- Other Excursion Titanium Signature systems: TSF15180F140G (140GPH), TSF15250F220G (220GPH), TSPF15290F240G (PLUS).
- Similar F-Series system: TSF14290F240G (1999–2007 F-Series).
- Filters & service parts: XWS3002, PF3001, XWS3002XL, PF3001XL, FP3000 Filter Pack, FP3000XL Filter Pack, FLP3000XL Fleet Pack.
FAQ
What fuel pressure does this 240GPH system run?Approximately 45–50 PSI during normal operation (see linked installation manual for TS-F15 series).
Which filters should I use?
Run the current pair: XWS3002 on the pressure side and PF3001 on the suction side. XL setups use XWS3002XL and PF3001XL.
Does it include the suction tube and bulkhead?
Yes—bulkhead fitting and 5/8" suction tube kit are included for streamlined installation.
How much horsepower will it support?
Manufacturer guidance indicates support for high-power builds up to roughly 1500 HP on this application.
Specifications for Fass TSF15290F240G
| Brand | FASS Fuel Systems |
| Part Number | TSF15290F240G |
| Flow / Pressure | 240 GPH @ ~45–50 PSI |
| Engine / Years | Ford Excursion 6.0L & 7.3L (2000–2005) |
| Horsepower Support | High-HP builds; up to ~1500 HP (application-dependent) |
| Filter Pair | XWS3002 (pressure side) + PF3001 (suction side) |
| UPC | 850044106585 |
| GTIN | 0850044106585 |
| Package Dimensions | 14.00" W × 11.50" H × 18.00" D |
| Shipping | Free Shipping (Continental U.S.) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
