Product Description
The BILSTEIN 46-276827 5162 Series High Performance Leveling Kit is the ultimate front suspension upgrade for 2017-2022 Ford F250 and F350 Powerstroke 4WD trucks. Designed to provide approximately 2" of front lift, this kit levels your truck’s stance while dramatically improving ride quality, handling, and off-road capability.
This premium kit includes Bilstein 5160 remote reservoir monotube shocks paired with matched front coil springs, delivering superior damping performance and increased oil capacity for better heat dissipation. The remote reservoir design ensures consistent performance under heavy loads, towing, and aggressive off-road driving.
Engineered with Bilstein’s gas pressure monotube technology and digressive valving, the 5162 Series reacts instantly to changing terrain, providing maximum control without sacrificing ride comfort. This kit bolts directly into factory mounting locations for a straightforward installation with no major modifications required.
Key Benefits:
- Provides approximately 2" of front lift for a leveled stance
- Includes Bilstein 5160 remote reservoir shocks for superior cooling and performance
- Improves ride quality, handling, and towing stability
- Increases wheel travel and allows for larger tire fitment
- Direct bolt-on installation using factory mounting points
- Engineered specifically for diesel-powered Ford Super Duty trucks
FITMENT:
- 2017-2022 Ford F250 Super Duty 4WD (Powerstroke Diesel)
- 2017-2022 Ford F350 Super Duty 4WD (Powerstroke Diesel)
- Front suspension leveling kit
- Designed for diesel models only
- Not compatible with Tremor package models
- Fits stock height trucks for leveling purposes
FAQ
How much lift does this kit provide?
This kit provides approximately 2" of front lift, leveling the front of your truck with the rear.
What components are included in this kit?
The kit includes (2) Bilstein 5160 remote reservoir shocks and matched front coil springs for a complete front leveling solution.
Does this improve ride quality?
Yes, the monotube gas pressure design and remote reservoir shocks improve ride comfort, control, and performance both on and off-road.
Is installation complicated?
No, the kit is designed as a direct bolt-on system that installs in factory locations without major modifications.
Will this work on gas engine trucks?
No, this kit is specifically designed for Powerstroke diesel models due to front weight differences.
Specifications for BILSTEIN 46-276827
| Category | Details |
|---|---|
| Brand | Bilstein |
| Part Number | 46-276827 |
| Product Line | B8 5162 Series |
| Product Type | Front Suspension Leveling Kit |
| UPC | 651860820958 |
| GTIN | 00651860820958 |
| Lift Height | Approx. 2.0" Front Lift |
| Shock Series | Bilstein 5160 Remote Reservoir |
| Shock Design | 46mm Monotube Gas Pressure |
| Reservoir | Yes (Remote Reservoir) |

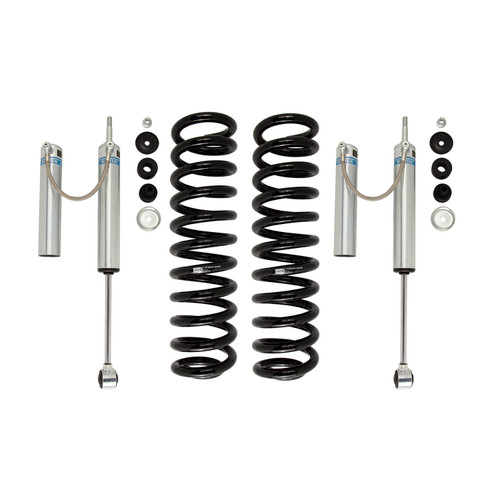

| Included Components | (2) 5160 Shocks, (2) Coil Springs, Hardware |
| Vehicle Fitment | 2017-2022 Ford F250/F350 4WD Diesel |
| Drive Type | 4WD |
| Installation Type | Direct Bolt-On |
| Finish | Zinc Plated / Bilstein Yellow |
| Adjustability | Non-Adjustable |
| Shipping Weight | Approx. 75 lbs |
| Warranty | Bilstein Limited Lifetime Warranty |
| California Prop 65 | WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov |
| Shipping Information | Ships via Ground due to oversized weight |
