Product Description
The BILSTEIN 46-276810 5112 Series High Performance Leveling Kit is a premium suspension upgrade designed specifically for 2017-2022 Ford F250 and F350 6.7L Powerstroke 4WD trucks. This complete front leveling solution eliminates factory rake while significantly improving ride quality, handling, and overall suspension performance.
Unlike basic spacer leveling kits, the Bilstein 5112 kit includes matched coil springs and Bilstein B8 5100 monotube gas pressure shocks, engineered to work together for optimal damping and ride comfort. This system provides approximately 2 inches of front lift, allowing for larger tires, improved ground clearance, and a more aggressive stance.
Bilstein’s proven monotube gas pressure technology and digressive valving ensure consistent, fade-free performance under heavy loads, towing, off-road use, and daily driving. The result is a smoother, more controlled ride both on and off the road.
Key Benefits:
- Provides approximately 2" of front lift to level factory rake

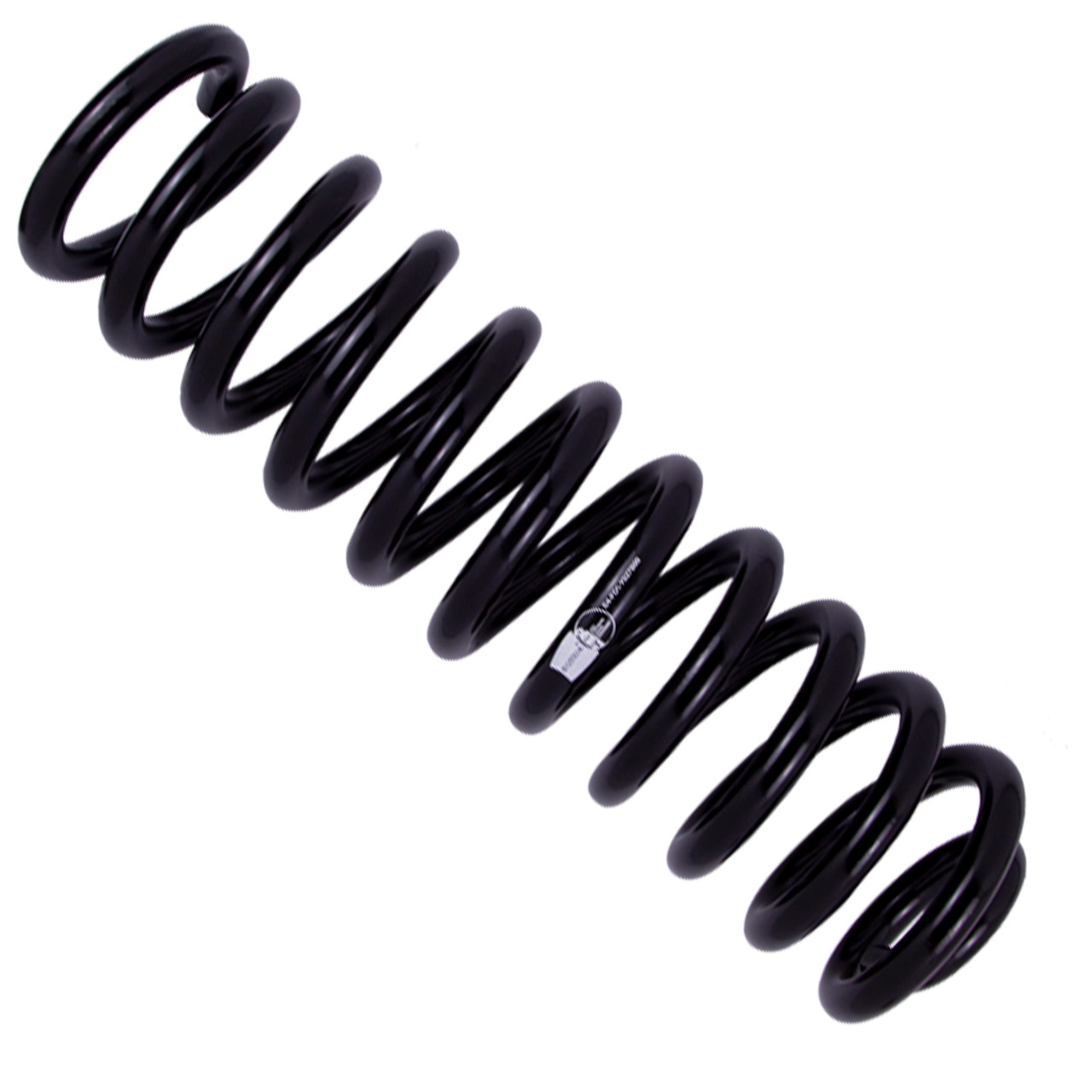

- Includes matched coil springs and Bilstein 5100 shocks
- Improves ride quality over factory suspension and spacer kits
- Increases ground clearance and allows for larger tires
- Better stability, handling, and control on and off-road
- Direct bolt-on installation using factory mounting points
- Ideal for towing, hauling, and daily driving applications
FITMENT:
- 2017-2022 Ford F250 Super Duty 4WD 6.7L Powerstroke
- 2017-2022 Ford F350 Super Duty 4WD 6.7L Powerstroke
- Front suspension leveling kit only
- Fits diesel models only
- Does NOT fit 2WD models
- Provides approximately 2" front lift (may vary with added weight)
- Compatible with factory suspension mounting points
FAQ
How much lift does this kit provide?
This kit provides approximately 2 inches of front lift to level the truck stance.
Is this better than a spacer leveling kit?
Yes, unlike spacer kits, the Bilstein 5112 includes matched shocks and springs, improving both ride quality and performance.
Will this fit gas engine trucks?
No, this kit is specifically designed for diesel (Powerstroke) applications.
Do I need additional components?
An adjustable track bar or drop bracket is recommended for optimal alignment and handling.
Is installation bolt-on?
Yes, this kit installs using factory mounting locations with no major modifications required.
Specifications for BILSTEIN 46-276810
| Category | Details |
|---|---|
| Brand | Bilstein |
| Part Number | 46-276810 |
| Series | B8 5112 Series |
| Product Type | Front Suspension Leveling Kit |
| UPC | 651860820941 |
| GTIN | 00651860820941 |
| Lift Height | Approx. 2.0 inches (Front) |
| Position | Front |
| Vehicle Fitment | 2017-2022 Ford F250/F350 4WD Diesel |
| Drive Type | 4WD |
| Included Components | (2) B8 5100 Shocks, (2) Coil Springs, Hardware |
| Shock Design | 46mm Monotube Gas Pressure |
| Finish | Zinc Plated for Corrosion Resistance |
| Adjustability | Non-Adjustable |
| Reservoir | No |
| Body Diameter | 46mm (2.0 in OD) |
| Installation | Direct Bolt-On (Factory Mounting Points) |
| Shipping Weight | Approx. 57.8 lbs |
| Warranty | Bilstein Limited Lifetime Warranty |
| California Prop 65 | WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov |
