AFE POWER

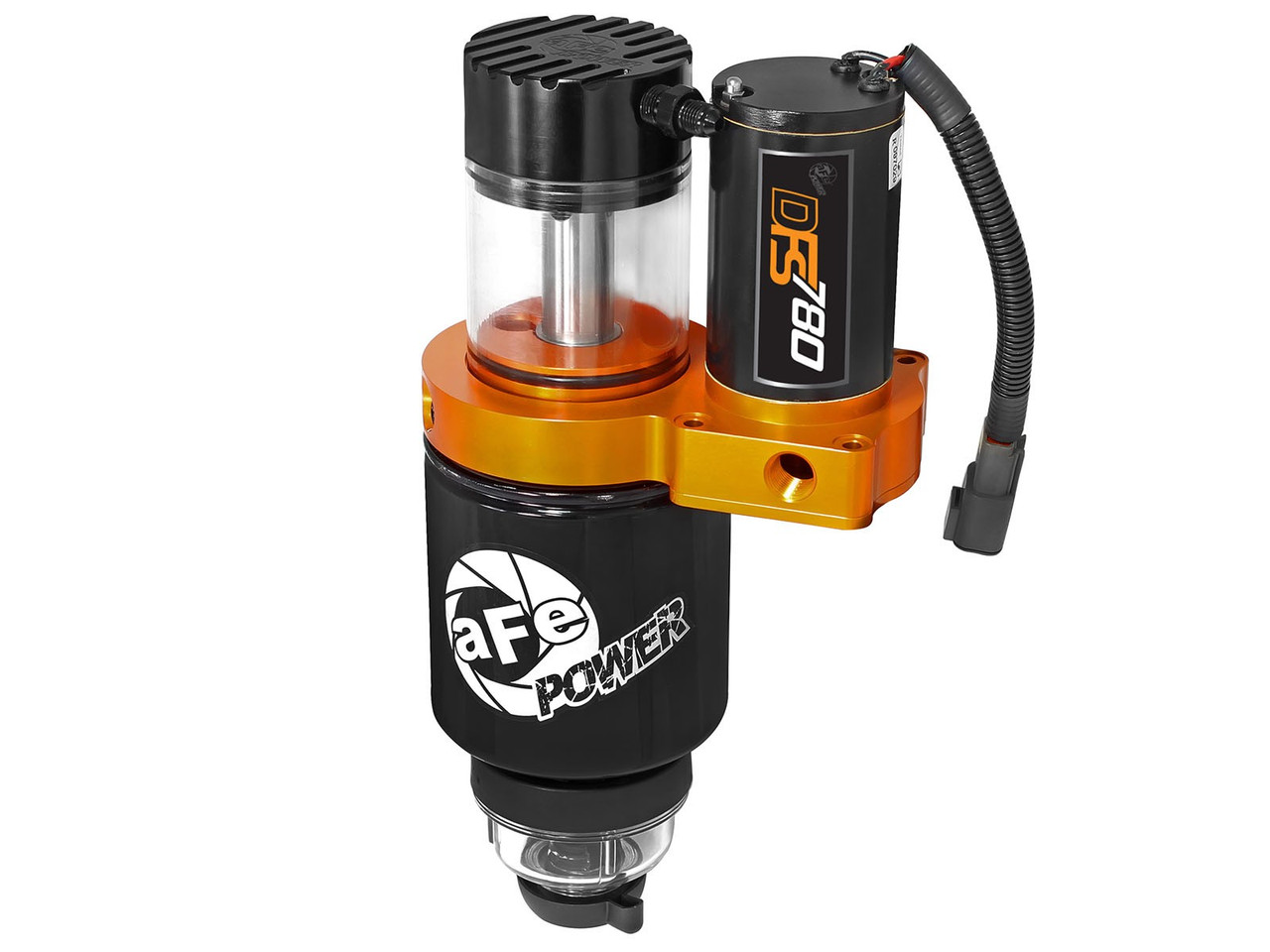

AFE 42-14023 DFS780 Fuel System - Full-time Operation GM Diesel Trucks 17-19 V8-6.6L (td) L5P
- SKU:
- AFE42-14023
- MPN:
- 42-14023
- Shipping:
- Calculated at Checkout
Description
Clear High-Impact Polycarbonate Sight Glass:
Allows visual inspection of fuel.
Helical Bronze Spur Gears:
Bronze gears more forgiving of contaminants than steel gears. The helical spur gear design runs quieter than straight cut gears.
Billet 6061-T6 Aluminum Manifold:
Eliminates porosity concerns with cast aluminum.
"Marine Grade" Motor:
Protected against dust intrusion and powerful water jets.
Plug & Play Installation:
Supplied harness attaches directly to battery and utilizes Deutsch weather-proof connectors. No cutting or modifications of the stock fuel lines required. Vehicle can easily be returned to stock.
PEEK Bearing Wear Surfaces:
The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.
Contoured CNC Machining Of Manifold Passages:
Enhances flow through the manifold to reduce pressure drop due to flow restrictions.
Direct Bolt-on Steel Mounting Bracket:
Heavy duty bracket mounts to the frame and utilizes existing hole to secure.
Fuel Pressure Gauge Port:
1/8 IN NPT port allows customer to attach an external pressure gauge to monitor fuel pressure.
O.E Quality Viton Seals:
Compatible with diesel and biodiesel fuels.
Emissions Disclaimer:
Some or all of the applications listed are 50-state exempt, please see CARB EO# D-550-37 for details.
- Clear high-impact polycarbonate sight glass for visual inspection of fuel
- Helical spur gears runs quieter than straight cut gears
- "Marine Grade" motor protects against dust and water
- 187 GPH @ 8-10 psi Flow Rating
- Contoured CNC manifold enhances flow
- Fuel pressure gauge port
- O.E. quality Viton Seals
- Typical install is 2 hours
- Built in the U.S.A.
2017-2019 | Chevrolet | Silverado 2500 HD | Duramax | V8 6.6L (td) | Diesel |
2017-2019 | Chevrolet | Silverado 3500 HD | Duramax | V8 6.6L (td) | Diesel |
2017-2019 | GMC | Sierra 2500 HD | Duramax | V8 6.6L (td) | Diesel |
2017-2019 | GMC | Sierra 3500 HD | Duramax | V8 6.6L (td) | Diesel |
