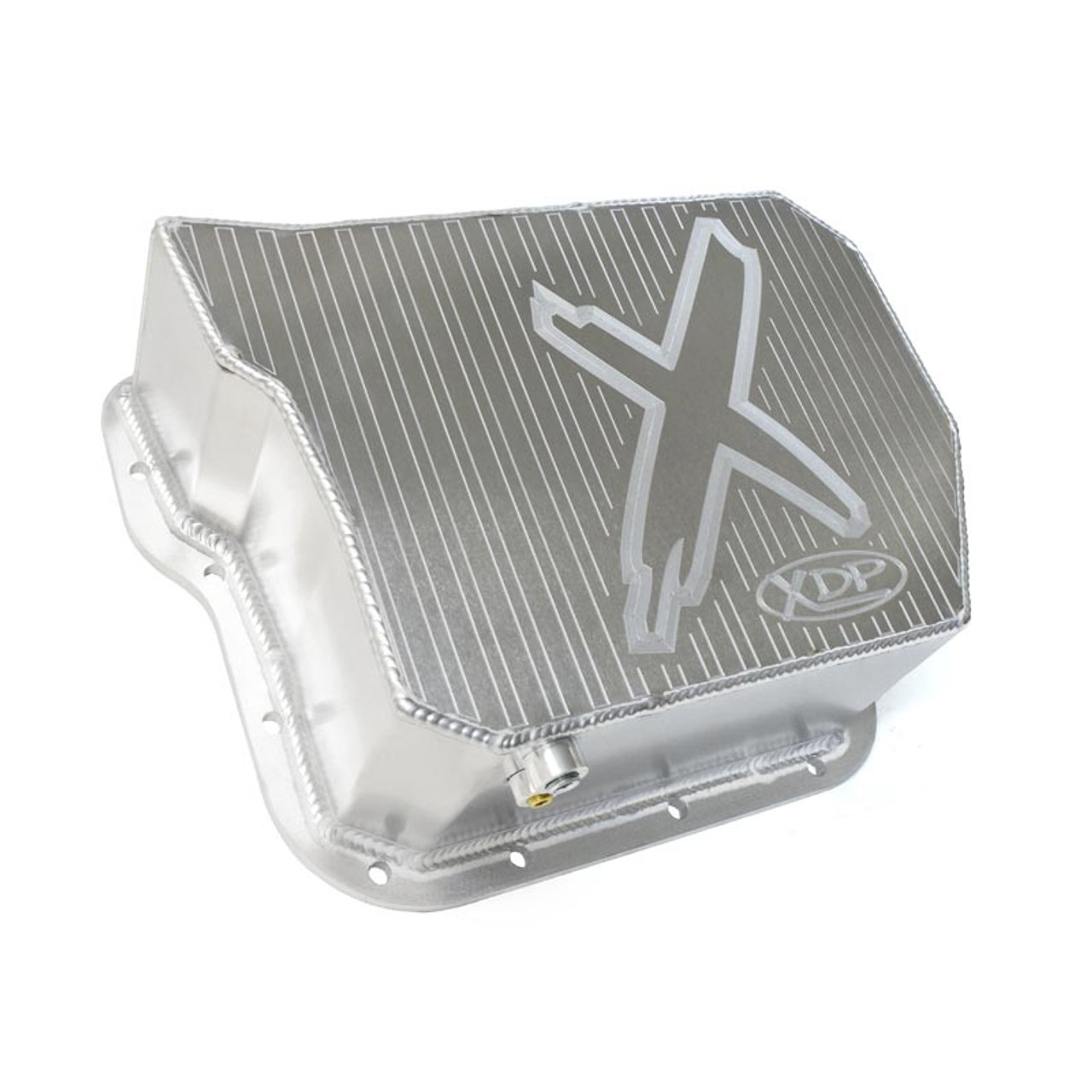

XDP XD450 47RE / 48RE XTRA DEEP ALUMINUM TRANSMISSION PAN FOR 96-07 DODGE RAM WITH CUMMINS ENGINE

Add 4 quarts of extra fluid capacity to your 47/48RE transmission with the XDP X-TRA Deep Aluminum Transmission Pan (47/48RE) XD450. The XDP X-TRA Deep Transmission Pan features a fabricated aluminum sheet metal construction that gives your truck a race-inspired look that is lightweight, durable, and sleek.

Each pan is fully-welded with a 3/8 inch thick mounting flange for resistance to warping and added strength.

The CNC engraved bottom provides you with enhanced looks and style and the direct-fit design lets you install this transmission pan using any OE-style gasket. Designed to be an upgrade over the factory transmission pan, the X-TRA Deep Pan is equipped with an 1/8 inch NPT temperature port and a magnetic drain plug.

This pan comes ready to install with new stainless steel hardware and is backed by the XDP 1-year unlimited mileage warranty.

Features:

• 1/8 inch NPT Temperature Port
• Deep Sump For Added Capacity
• Fabricated Aluminum Construction
• 4 Quarts Added Capacity Over Stock
• Includes Stainless Steel Mounting Hardware

Applications:

• 1989-2007 Dodge 5.9L Cummins equipped with 727/518/47RH/47RE/48RE Transmissions

Application Note:

• This transmission pan does not include or require the use of a transmission filter spacer
• Does not include gasket or filter
