WEHRLI WCF100466 06-10 GM LBZ/LMM DURAMAX PASSENGER SIDE INTERCOOLER OUTLET ELBOW KIT

The 3.5" High Flow Intercooler Outlet Elbow for 2006-2010 LBZ/LMM Duramax replaces the factory plastic piece pipe with a high flow, 14 ga. aluminum fabricated 3.5" pipe. This part uses a CNC machined flange with a double o-ring seal, comes supplied with a new wire clip ring, and uses an upgraded silicone reducer boot with stainless steel t-bolt clamps to withstand higher boost pressures than the factory components to increase reliability and eliminate blown factory boots and horsepower robbing boost leaks. Finished in your choice of custom powder colors to match your existing WCFab products.

NOTE: Designed for use with aftermarket and custom fabricated high flow piping and turbo kits running higher boost pressures which can cause failures of the aging plastic OEM intercooler outlet connection.

***NOTE: Not compatible with OEM passenger / cold side intercooler pipe. CSF Aftermarket intercoolers require modification / grinding of intercooler outlet lip for installation.***

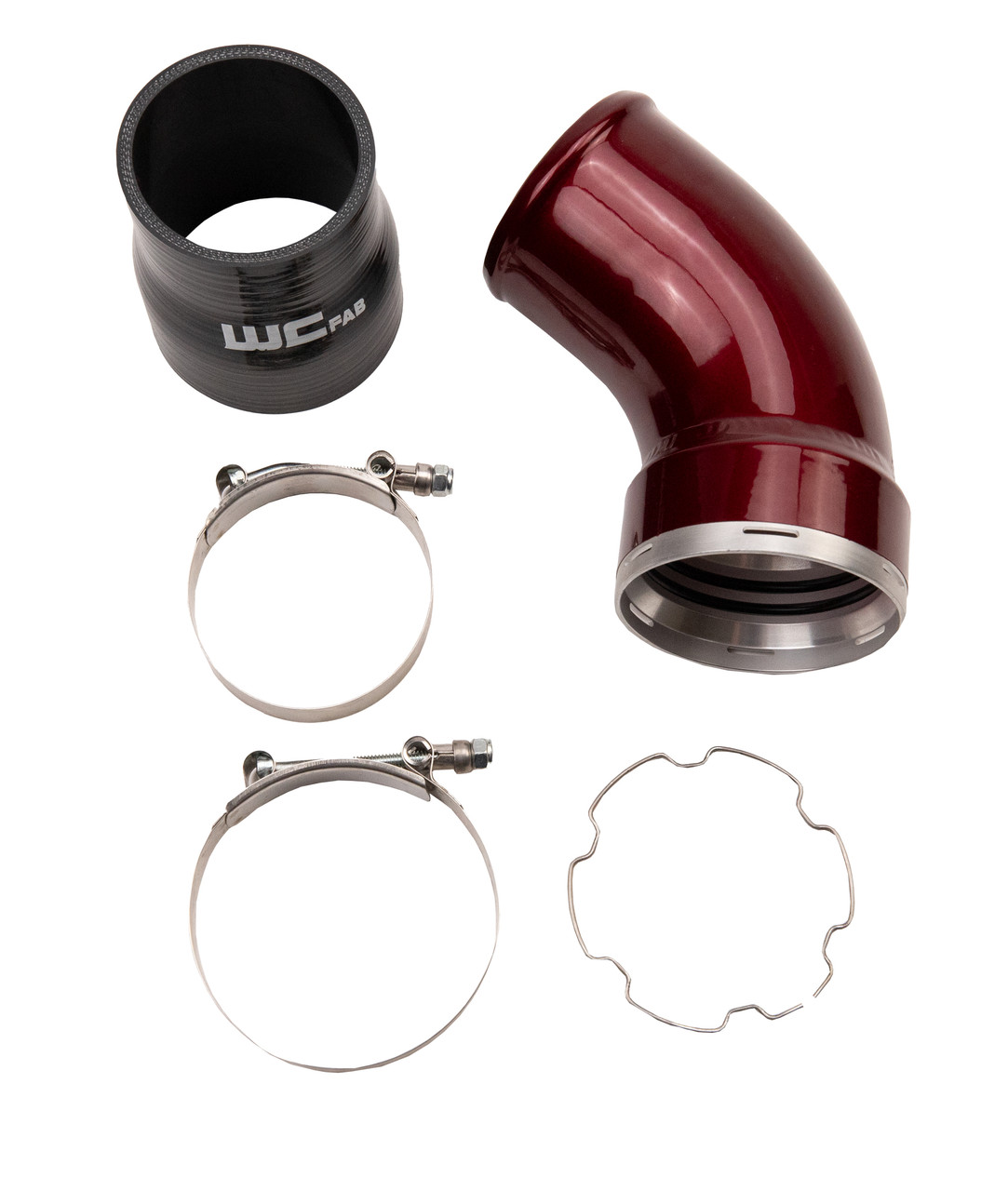

- 3.5 in. Intercooler Outlet Elbow
- HD Silicone 3.5 in. x 3 in. Reducer Boot
- Stainless Steel T-Bolt Clamps
- O-Rings
- New Wire Clip Ring for Intercooler Flange Connection
- 14g Aluminum Construction
- CNC Machined Billet Aluminum Flange with Double O-Rings Provides an Improved Sealing Surface to Eliminate Boost Leaks
- Durable Custom Powder Coat Finish

The WEHRLI WCF100466 06-10 GM LBZ/LMM Duramax Passenger Side Intercooler Outlet Elbow Kit is a performance-driven upgrade designed to enhance the capabilities of your 2006-2010 LBZ/LMM Duramax. Crafted from high-quality 14 ga. aluminum, this 3.5" High Flow Intercooler Outlet Elbow replaces the factory plastic pipe component to provide superior airflow and durability.

Featuring a CNC machined flange with double o-ring seal technology, this kit includes a new wire clip ring and an upgraded silicone reducer boot with stainless steel t-bolt clamps. These enhancements ensure that the intercooler outlet elbow can handle higher boost pressures, reducing the risk of blown factory boots and power loss due to boost leaks. Customizable in a variety of powder coat colors, this kit can be color-matched to your existing WCFab products for a cohesive look.

It is important to note that this upgraded intercooler outlet elbow is specifically designed for aftermarket and custom high-flow piping and turbo kits running increased boost pressures. Not compatible with the OEM passenger/cold side intercooler pipe, this kit is engineered to optimize performance and reliability under demanding conditions.

At Wehrli Custom Fabrication, our powder coating services offer exceptional quality and durability. With over 30 different colors in stock and the option to choose from over 5000 unique shades from Prismatic Powders, you have endless possibilities to customize your vehicle components. For additional protection against corrosion, consider adding a Zinc-Rich Base Coat primer before the final color application, providing nearly ten times the corrosion resistance of a standard coat of powder. Trust Wehrli Custom Fabrication for premium quality, innovative design, and reliable performance enhancements for your vehicle.
