Product Description
Hold up to ~650 HP / ~1,200 FT-LBS while keeping street/tow manners. The VALAIR NMU70NV56DDSN is a street dual disc kit for 2001–2005 Ram 2500/3500 5.9L Cummins with the NV5600 6-speed. It pairs ceramic facings with a heavy clamp load plate and a dual-disc flywheel for serious bite that you can still daily drive.
Fitment
- 2001–2005 Ram 2500/3500, 5.9L Cummins NV5600 6-speed manual
- Direct bolt-on with the included NV5600 dual-disc flywheel and hardware
Tip: Some 2005 trucks may be G56. If yours is G56, choose the G56 street dual disc instead.

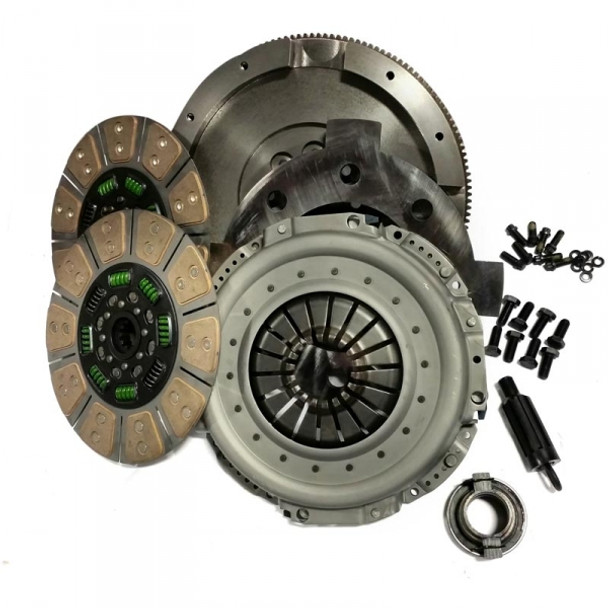

What’s Included
- NV5600 dual-disc flywheel (nodular iron)
- Heavy-duty (approx. 3800#) pressure plate & billet floater
- Dual ceramic lined discs (spring hub)
- Release bearing & HD pilot bearing
- Alignment tool & mounting hardware
Recommended Supporting Parts
- Valair Heavy Duty Hydraulics (’03–’05): NMU70HYD-03
- Valair NV5600 6-Speed Flywheel (service replacement): V3434
- ARP Flywheel Bolt Kit (1989–2004 5.9L): ARP 147-2802
Cross-Reference / Alternatives
- Street Dual Disc – Organic (~550 HP) for NV5600: NMU70NV56DDSN-ORG
- Single-Disc Upgrades for NV5600:
- Organic (~400 HP): NMU70279-01
- Kevlar/Ceramic (~500 HP): NMU70279-06
- Ceramic (~600 HP): NMU70279-04
- South Bend Street Dual Disc (NV5600, heavy towing alt): SDD3250-6-ORG
FAQ
How much power will this clutch hold?Targeted for about 650 HP / 1,200 ft-lbs on street/tow builds with proper tuning and tires. For smoother engagement at lower power, see the organic dual disc alternative above.
Does this kit include a flywheel?Yes—this street dual disc ships with a new NV5600 dual-disc flywheel plus bearings, hardware, and an alignment tool for a complete install.
Will it be grabby or chatter?The ceramic facings and higher clamp pressure add bite and heat capacity versus organic. Expect firmer engagement; complete the full break-in to minimize chatter.
Which hydraulics should I use?For 2003–2005 trucks use NMU70HYD-03. (1998–2002 trucks typically use NMU70HYD-02.)
How do I confirm I have an NV5600?Check the transmission tag/case. If you’ve got a G56, use the G56 dual disc instead.
