READYLIFT 69-3035 3.5'' SST LIFT KIT FRONT WITH 2'' REAR WITH FABRICATED CONTROL ARMS AND BILSTEIN SHOCKS- GM SILVERADO / SIERRA 2500HD 2020-2021

2020-2021 GM 2500/3500 HD including AT4

3.5" Front/ 2" Rear SST Lift Kit

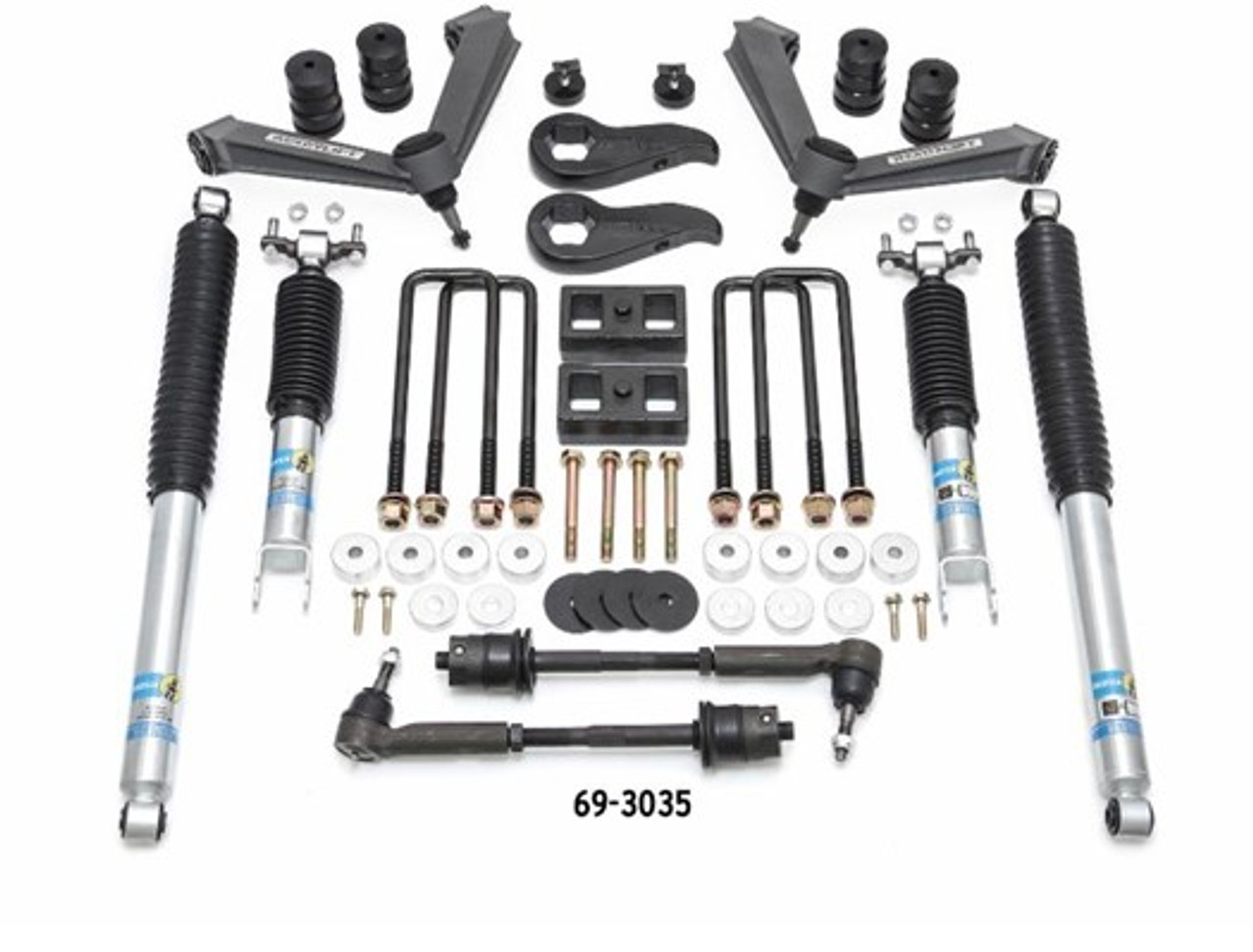

SST lift specific Forged Torsion Keys with new F/R Bilstein 5100 series shocks, Xtreme-Duty fabricated steel upper control arms, heavy-duty tie rods, differential spacers, new longer bump stops, and longer hardware.

Allows for 20x9 0 offset - 35x12.50 tire. *Max with trimming: 20x10 -18 offset - 35x12.50

Some fender well variance may be experienced between Silverado and Sierra models.

Can be used on trucks equipped with factory snow prep/plow packages.

Works with trucks equipped with either the OE #84461807 or OE #84634344 factory torsion keys and requires ReadyLIFT torsion key unloading tool 66-7822B or similar for installation.

ReadyLIFT has responded to GM’s changes to the torsion bar suspension of their 2020 HD pickups. The 69-3035 adjustable forged torsion key SST lift kit was specially designed to install and function properly on this new suspension.

Providing 3”–3.5” of front lift, it includes all-new fabricated-steel Xtreme-Duty upper control arms that use ReadyLIFT’s popular “winged” design and four new 5100 Bilstein shocks for a performance-tuned ride and handling.

ReadyLIFT torsion key unloading tool (66-7816A or similar) required for installation.

Features

• For 2020 Chevy Silverado or GMC Sierra 2500/3500 HD (2WD & 4WD)
• 3”–3.5”  adjustable front lift with new forged torsion keys
• Heavy-duty fabricated-steel upper control arms
• HD ball joints and maintenance-free TCT nonbonded pivot bushings
• HD tie rods for increased pivot angles over stock
• Taller differential drop spacers and skid plate spacers
• Taller bump stops for the front suspension
• 2” cast-iron rear lift blocks with longer U-bolts
• Front and rear Bilstein 5100 shocks for exceptional ride and handling
• Recommended max tire with no trimming: 20×9 -0 offset (35×12.50 tire)
• Recommended max tire with trimming: 20×10 -18 offset (35×12.50 tire)
