Product Description

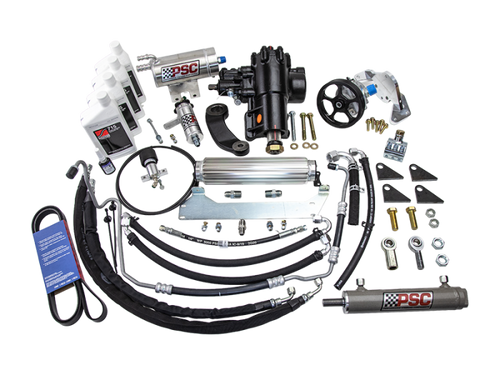

The PSC SK689R36JP2-6.75W-1.625 Cylinder Assist Steering Kit is a complete high-performance hydraulic steering upgrade engineered specifically for the 2018-2020 Jeep Wrangler JL/JLU equipped with the 3.6L Pentastar Non-ETorque engine. Designed to eliminate factory steering limitations when running oversized tires and aftermarket axles, this system dramatically increases steering torque, control, and durability. At the core of the system is the PSC Big Bore XD steering gearbox, featuring an upgraded 80mm piston and a larger 45mm sector shaft for increased strength and steering power. This allows drivers to confidently turn larger tires, even when differential lockers are engaged or during extreme off-road articulation. The kit also replaces the factory electric steering pump with a reliable belt-driven hydraulic pump system, delivering consistent steering performance under demanding trail conditions. A 6.75-inch stroke hydraulic assist cylinder with weld-on tabs provides additional steering force to handle vehicles equipped with aftermarket axles and large tires exceeding 35 inches. Complete with hoses, fittings, cooler, reservoir system, and SWEPCO power steering fluid, the PSC SK689R36JP2 steering kit delivers one of the most advanced steering solutions available for Jeep JL builds focused on rock crawling, overlanding, and high-performance off-road driving.
Fitment
- 2018 Jeep Wrangler JL 3.6L Pentastar Non-ETorque
- 2019 Jeep Wrangler JL / JLU 3.6L Pentastar Non-ETorque
- 2020 Jeep Wrangler JL / JLU 3.6L Pentastar Non-ETorque
- Designed for vehicles running aftermarket front axles with 6.75" lock-to-lock configuration
- Compatible with builds running 35-inch to 40-inch off-road tires
Specifications for psc SK689R36JP2-6.75W-1.625
| Specification | Details |
|---|---|
| Manufacturer | PSC Motorsports |
| Part Number | SK689R36JP2-6.75W-1.625 |
| UPC | 687927188754 |
| GTIN | 687927188754 |
| Steering System Type | Hydraulic Cylinder Assist Steering Kit |
| Cylinder Stroke | 6.75 Inch |
| Tie Rod Clamp Size | 1.625 Inch |
| Pump Type | Belt-Driven Hydraulic Pump Conversion |
| Kit Includes | Steering Gearbox, Pump Kit, Cylinder Assist Kit, Reservoir, Hoses, Cooler, Mounting Hardware |
| Shipping Info | Free Shipping Available |
| Prop 65 | WARNING: Cancer and Reproductive Harm – https://www.P65Warnings.ca.gov |
Frequently Asked Questions
What does a PSC cylinder assist steering kit do?
Cylinder assist steering adds hydraulic power to the steering linkage, reducing steering effort when turning large tires or when the vehicle is under heavy load off-road.
Why upgrade to PSC Big Bore XD steering?
The Big Bore XD steering gear features a larger piston and stronger sector shaft that dramatically improves steering torque and durability compared to factory JL steering systems.
Will this kit work with factory axles?
This kit is designed for Jeep JL builds running aftermarket axles with 6.75-inch lock-to-lock steering geometry and may require modification when used with factory components.
Is the pump included in this kit?
Yes. This system includes a complete belt-driven hydraulic pump conversion to replace the factory electric steering pump for improved reliability and performance.
What tire sizes benefit from this upgrade?
Vehicles running 35-inch to 40-inch tires will see the greatest benefit, especially when used for rock crawling or extreme off-road driving.
