INDUSTRIAL INJECTION PDM-3673CC DODGE PERFORMANCE PISTONS FOR 2004.5-2007 CUMMINS

2004.5-2007 5.9L Cummins Pistons. Industrial Injection is the leading distributor, supplier and remanufacturer of diesel fuel systems, turbochargers, and engines.

Your Top Choice for the top diesel products for On/Off highway, industrial, marine, automotive, and agricultrual applications.

Our experience in fuel injection, turbocharger, and engine components is unmatched. Industrial Injection will always deliver the best products for your light, medium, and heavy duty diesel.

Details:

• 24 Valve Mahle Piston W /Rings, Wristpins and Clips
• Fits 2004.5 and 2007
• Standard Bore
• Price as a Set

Performance Piston Features:

• Drop In Replacement
• Complete W/ Rings, Wrist Pins And Clips
• Standard Bore
• Chamfered tops
• Thermal Barrier Coating For Piston Tops
• Ceramic Piston Skirt Coating

Fly Cut (valve relief): .100

Fly cutting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.

Chamfering:

Our performance and race Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)

Skirt and Top Coating:

PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction. This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f.

This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant. It is used in applications where high temperatures, high loads and high speeds are experienced. When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load.

Gray in color it acquires a glass like finish in use. Cured film thickness of .001 or less requires no change is piston clearance.

PDM's Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios.

The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency.

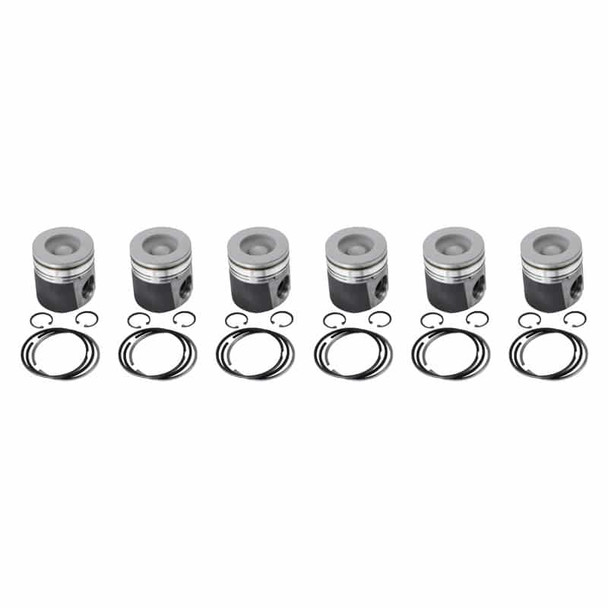

Sold as a set of 6 pistons

The INDUSTRIAL INJECTION PDM-3673CC DODGE PERFORMANCE PISTONS are engineered for the discerning Cummins enthusiast, specifically designed for the 2004.5-2007 5.9L Cummins engines. As a trusted leader in the diesel performance industry, Industrial Injection combines state-of-the-art technology with years of expertise in fuel systems, turbochargers, and engine components, ensuring top-tier performance for light, medium, and heavy-duty diesel applications.

This complete set of six pistons offers a straightforward drop-in replacement, providing an effective solution for those seeking enhanced power and reliability. Each piston comes fully equipped with rings, wrist pins, and clips, simplifying installation and ensuring a comprehensive performance upgrade. With a standard bore design and chamfered tops, these pistons help mitigate cylinder wall scuffing and swelling, promoting longevity and optimal performance.

One of the standout features of the PDM-3673CC pistons is the advanced thermal barrier coating on the piston tops, designed to withstand the rigors of high-volume fuel delivery and high compression. This coating effectively retains heat within the combustion chamber during power strokes, resulting in increased torque, horsepower, and improved combustion efficiency. Additionally, the ceramic piston skirt coating reduces friction and enhances durability, withstanding extreme loads and temperatures while maintaining a smooth operation.

For those utilizing high lift camshafts, the fly-cut valve relief feature ensures adequate piston-to-valve clearance, making these pistons versatile for performance-driven builds. With a sleek gray finish that develops a glass-like surface during use, the PDM-3673CC pistons not only perform exceptionally but also maintain visual appeal.

Elevate your Cummins performance with Industrial Injection's PDM-3673CC Dodge Performance Pistons—where cutting-edge technology meets unmatched experience.
