INDUSTRIAL INJECTION PDM-3673CC.040 DODGE PERFORMANCE PISTONS FOR 2004.5-2007 CUMMINS .040 OVER

2004.5-2007 5.9L Cummins Pistons. Industrial Injection is the leading distributor, supplier and remanufacturer of diesel fuel systems, turbochargers, and engines.

Your Top Choice for the top diesel products for On/Off highway, industrial, marine, automotive, and agricultrual applications.

Our experience in fuel injection, turbocharger, and engine components is unmatched. Industrial Injection will always deliver the best products for your light, medium, and heavy duty diesel.

Details:

• 24 Valve Mahle Piston W /Rings, Wristpins and Clips
• Fits 2004.5 and 2007
• .040 Bore
• Price as a Set

Performance Piston Features:

• Drop In Replacement
• Complete W/ Rings, Wrist Pins And Clips
• Standard Bore
• Chamfered tops
• Thermal Barrier Coating For Piston Tops
• Ceramic Piston Skirt Coating

Fly Cut (valve relief): .100

Fly cutting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.

Chamfering:

Our performance and race Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)

Skirt and Top Coating:

PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction. This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f.

This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant. It is used in applications where high temperatures, high loads and high speeds are experienced. When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load.

Gray in color it acquires a glass like finish in use. Cured film thickness of .001 or less requires no change is piston clearance.

PDM's Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios.

The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency.

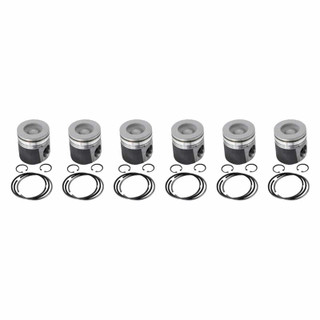

Sold as a set of 6 pistons

The Industrial Injection PDM-3673CC.040 Dodge Performance Pistons are expertly engineered for 2004.5-2007 5.9L Cummins engines, designed to elevate performance for both on and off-highway applications. Each set includes six premium Mahle pistons, complete with rings, wrist pins, and clips, providing a convenient drop-in replacement that requires no additional modifications.

Manufactured with precision, these pistons feature a .040 bore, making them perfect for enthusiasts looking to enhance their engine's capabilities. Equipped with chamfered tops, the pistons are designed to minimize swelling and scuffing against the cylinder wall, ensuring durability and longevity even under high-stress conditions. The fly cut relief of .100 is an essential enhancement for those utilizing high lift camshafts, promoting optimal valve clearance for superior performance.

What truly sets the PDM-3673CC apart is its advanced thermal barrier coating and ceramic skirt coating. The thermal barrier significantly reduces part temperatures, maintaining heat within the combustion chamber during the power stroke and boosting torque and horsepower. This coating is particularly beneficial for high-performance engines that run nitrous oxide, supercharged, or turbocharged setups, effectively improving combustion chamber efficiency.

Meanwhile, the ceramic skirt coating is engineered to withstand heavy loads up to 350,000 PSI and operates flawlessly at temperatures exceeding 1600°F. This unique blend of durability and lubricity ensures that the pistons can handle the rigors of high-performance driving without compromising on reliability.

Ideal for those who demand the best in diesel performance, the Industrial Injection PDM-3673CC.040 Dodge Performance Pistons represent the pinnacle of engineering excellence for heavy-duty applications. Upgrade your Cummins engine with a product trusted by professionals and enjoy the benefits of enhanced power and efficiency.
