INDUSTRIAL INJECTION PDM-3672FCC.020 DODGE RACE PISTONS FOR 03-04 CUMMINS .020 OVER

24 Valve Mahle Piston Standard Bore Coated Champ. Fly Cut W /Rings, Wristpins and Clips PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction.

This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f. This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant.

It is used in applications where high temperatures, high loads and high speeds are experienced. When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load.

Gray in color it acquires a glass like finish in use. Cured film thickness of .001 or less requires no change is piston clearance.

PDM's Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios.

The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency.

Details:

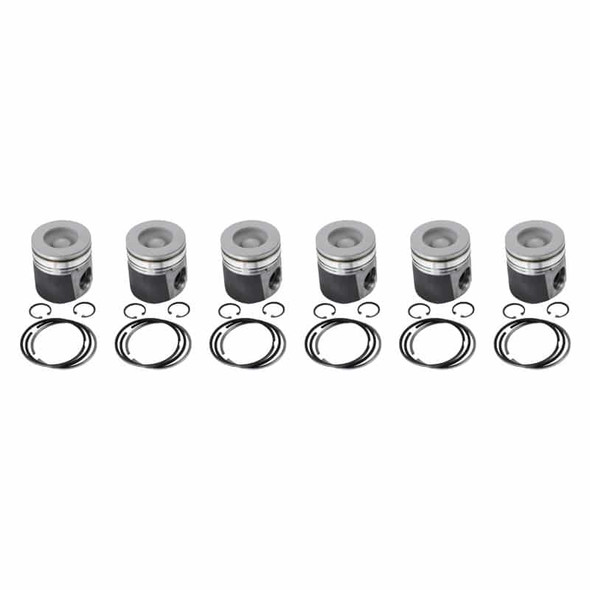

• 24 Valve Mahle Piston W /Rings, Wristpins and Clips
• Fly Cut, Coated and Chamfered
• Fits 2003 and 2004
• .020 Inch Over Bore
• Price as a Set

Fly Cut (valve relief): .100

Flycuting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.

Chamfering:

Our performance Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)

The INDUSTRIAL INJECTION PDM-3672FCC.020 Dodge Race Pistons bring unrivaled performance and durability to your 2003-2004 Cummins engine. Crafted with precision, these 24 Valve Mahle pistons come in a .020 over bore size, ensuring an optimal fit and enhanced power delivery. Each set includes the essential rings, wristpins, and clips, making installation seamless and hassle-free.

Engineered for high-performance applications, these pistons feature PDM's advanced Ceramic Piston Skirt Coating, which provides exceptional resistance to wear and friction. Capable of withstanding extreme loads exceeding 350,000 PSI and temperatures up to 1600°F, this coating seamlessly integrates durability with exceptional lubricative properties. The result is a piston that performs reliably under the most demanding conditions, ensuring longevity and efficiency.

The fly cut design, specially detailed with a .100 valve relief, ensures compatibility with high lift camshafts while maximizing clearance and eliminating potential interference. Chamfered tops prevent swelling and scuffing against the cylinder wall, further enhancing the overall performance and lifespan of your engine components.

Additionally, PDM's innovative Thermal Barrier Coating on the piston tops is designed for engines operating under nitrous oxide, supercharging, or turbocharging conditions. This hard surface effectively reduces part temperatures while keeping heat within the combustion chamber longer during the power stroke. Experience increased torque and horsepower alongside improved combustion chamber efficiency, optimizing your engine’s overall performance.

The INDUSTRIAL INJECTION PDM-3672FCC.020 Dodge Race Pistons are a premium choice for automotive enthusiasts looking to supercharge their Cummins engine. Elevate your performance standards with these meticulously crafted and engineered pistons, designed for excellence in every detail.
