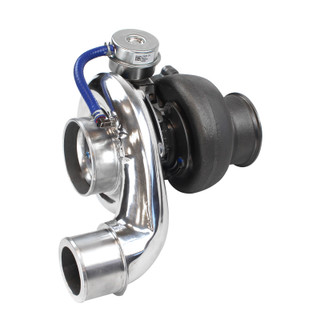

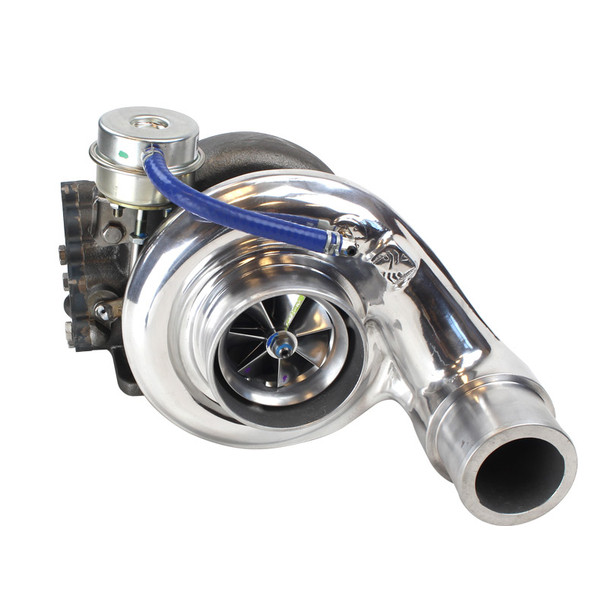

INDUSTRIAL INJECTION 369241741F DODGE SILVER BULLET PHATSHAFT 69 TURBO FOR 2007.5-2016 6.7L CUMMINS

The Silver Series PhatShaft is our latest effort to achieve perfection. Much like the Super PhatShaft it was designed to handle multiple fueling upgrades and comes in three sizes. 62mm 64mm, and 66mm and now 69mm.

What separates the Silver Series PhatShaft from the Super PhatShaft is our new technology 74mm turbine wheel. To improve on the Super PhatShaft turbos we needed improve performance at a lower rpm range and we needed to reduce compressor surge.

The solution is the 74mm turbine which is the latest in turbine trim design technology. The new trim design transfers exhaust gas energy more efficiently than any other turbine on the market. It also allows for better exhaust gas expulsion which results in lower EGT's and quicker rotor acceleration.

The most important benefit of the 74 mm turbine wheel is that it gets rid of turbo surge and broadens the power range. All silver series turbo come with a 360 degree thrust bearing and an appealing polished compressor housing.

The Silver series utilizes the proven 14cm exhaust housing with a modified exhaust nozzle. We maximize the wastegate ports in the 14cm housing by enlarging the diameter. The turbine housing wastegate cover it custom build to allow full wastegate travel.

Like all PhatShaft turbochargers they are equipped with dual grooved high performance bearings and an adjustable boost elbow.; The Silver Bullet 69 was designed to handle multiple fueling upgrades and increase overall performance.

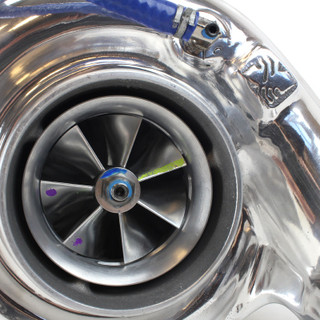

The Bullet comes equipped with an extended tip 69mm forged milled compressor wheel and 360 degree thrust bearing. The Silver Bullet utilizes the 74mm turbine wheel and comes standard with an appealing polished compressor housing.

The Silver Bullet uses a 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel. Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow.

Features:

• Increased Performance
• Lower EGTs
• (FMW) Forged Milled Compressor Wheel
• 360 Thrust Bearing
• Dual Grooved High Performance Journal Bearings
• Full Travel Wastegate Modification
• 69/74/14

Note: This turbo requires a T3 3rd Gen style exhaust manifold

The INDUSTRIAL INJECTION 369241741F DODGE SILVER BULLET PHATSHAFT 69 TURBO is a revolutionary performance upgrade tailored for 2007.5-2016 6.7L Cummins engines. This turbocharger represents the pinnacle of turbo technology, enhancing both power and efficiency while minimizing common issues such as turbo surge. With a meticulously engineered 69mm forged milled compressor wheel and a cutting-edge 74mm turbine wheel, the Silver Bullet is designed to optimize exhaust gas flow, ensuring quicker rotor acceleration and reduced exhaust gas temperatures (EGT).

The Silver Series PhatShaft turbo provides versatility with its capacity to handle multiple fueling upgrades. Its unique 14cm exhaust housing features a modified nozzle angle and maximized wastegate ports, allowing for full wastegate travel and further enhancing overall performance. Each unit comes standard with a polished compressor housing that not only looks great but complements the turbo’s robust engineering.

Equipped with dual grooved high-performance journal bearings and a 360-degree thrust bearing, the Silver Bullet ensures reliability and resilience under the most demanding conditions. The adjustable boost elbow allows for custom tuning, enabling users to tailor their performance experience precisely to their needs.

Beyond performance enhancements, the Silver Bullet turbocharger excels in usability, making it an ideal choice for enthusiasts looking to elevate their rig’s capabilities. Whether on the street or at the track, the Silver Bullet 69 delivers a powerful punch, transforming your 6.7L Cummins into a beast of an engine. Experience the next level of turbocharging innovation with the INDUSTRIAL INJECTION 369241741F DODGE SILVER BULLET PHATSHAFT 69 TURBO, and take your performance to new heights.
