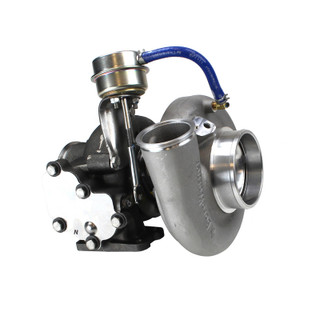

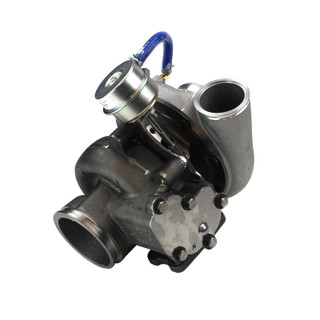

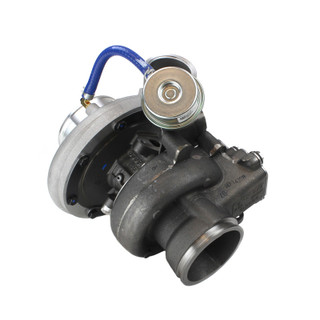

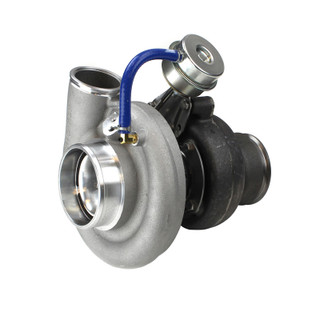

INDUSTRIAL INJECTION 3622306501 DODGE PHATSHAFT 62 TURBO FOR 94-02 5.9L CUMMINS 12CM HOUSING

The Industrial Injection Original PhatShaft Series Turbos were designed to handle mild fueling upgrades to help increase overall performance and be perfect for towing and daily driving.

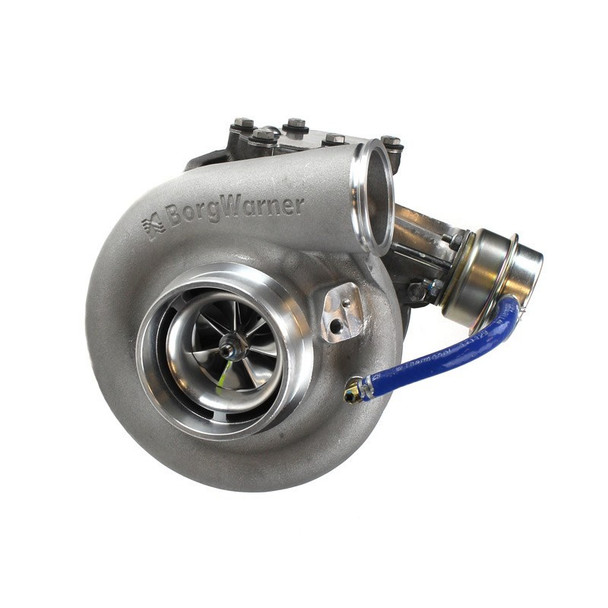

The PhatShaft comes equipped with an extended tip 62mm, or 64mm forged milled compressor wheel and 360 degree thrust bearing. The PhatShaft utilizes the 65mm turbine wheel and is available in a 12cm or 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel.

Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow. We recommend the 12cm Housing for 12 valve and 24 valve trucks for faster spool up.

Features:

• Increased Performance
• Lower EGTs
• Designed For Towing and Daily Driving
• 62mm Compressor Wheel
• 12cm exhaust housing
• 65mm Turbine Wheel
• (FMW) Forged Milled Compressor Wheel
• 360 Thrust Bearing
• Dual Grooved High Performance Journal Bearings
• Drop In Replacement Turbo

Note: Requires HX40 Downpipe

Note: Depending on the factory oil drain configuration it may need to be slightly modified to clear the wastegate rod

Elevate the performance of your 5.9L Cummins with the INDUSTRIAL INJECTION 3622306501 DODGE PHATSHAFT 62 TURBO, specifically engineered for 94-02 models. This turbocharger from the renowned Original PhatShaft Series is the ideal upgrade for those seeking improved power while maintaining daily drivability and towing capability.

Crafted with precision, the PhatShaft features an extended tip 62mm forged milled compressor wheel, complemented by a robust 65mm turbine wheel, ensuring optimal airflow and efficiency. The choice between a 12cm or 14cm exhaust housing allows you to tailor your performance needs; the 12cm housing is particularly recommended for 12 valve and 24 valve trucks as it promotes faster spool-up, enhancing your acceleration responsiveness.

Performance enhancements include not only increased horsepower but also lower exhaust gas temperatures (EGTs), crucial for extended towing tasks and daily commutes. The turbo incorporates a 360-degree thrust bearing paired with dual grooved high-performance journal bearings, ensuring durability and reliability under demanding conditions. An adjustable boost elbow adds a layer of customization, allowing enthusiasts to fine-tune their setup.

Furthermore, as a drop-in replacement turbo, installation is made straightforward, maintaining compatibility with existing systems. However, please note that an HX40 downpipe is required for optimal fitting, and slight modifications may be necessary depending on the factory oil drain configuration to accommodate the wastegate rod effectively.

The INDUSTRIAL INJECTION PhatShaft 62 Turbo represents a significant leap in performance upgrades for your Cummins, making it perfect for both work and play. Experience the balance of power and practicality with this cutting-edge addition to your diesel setup.
