Product Description

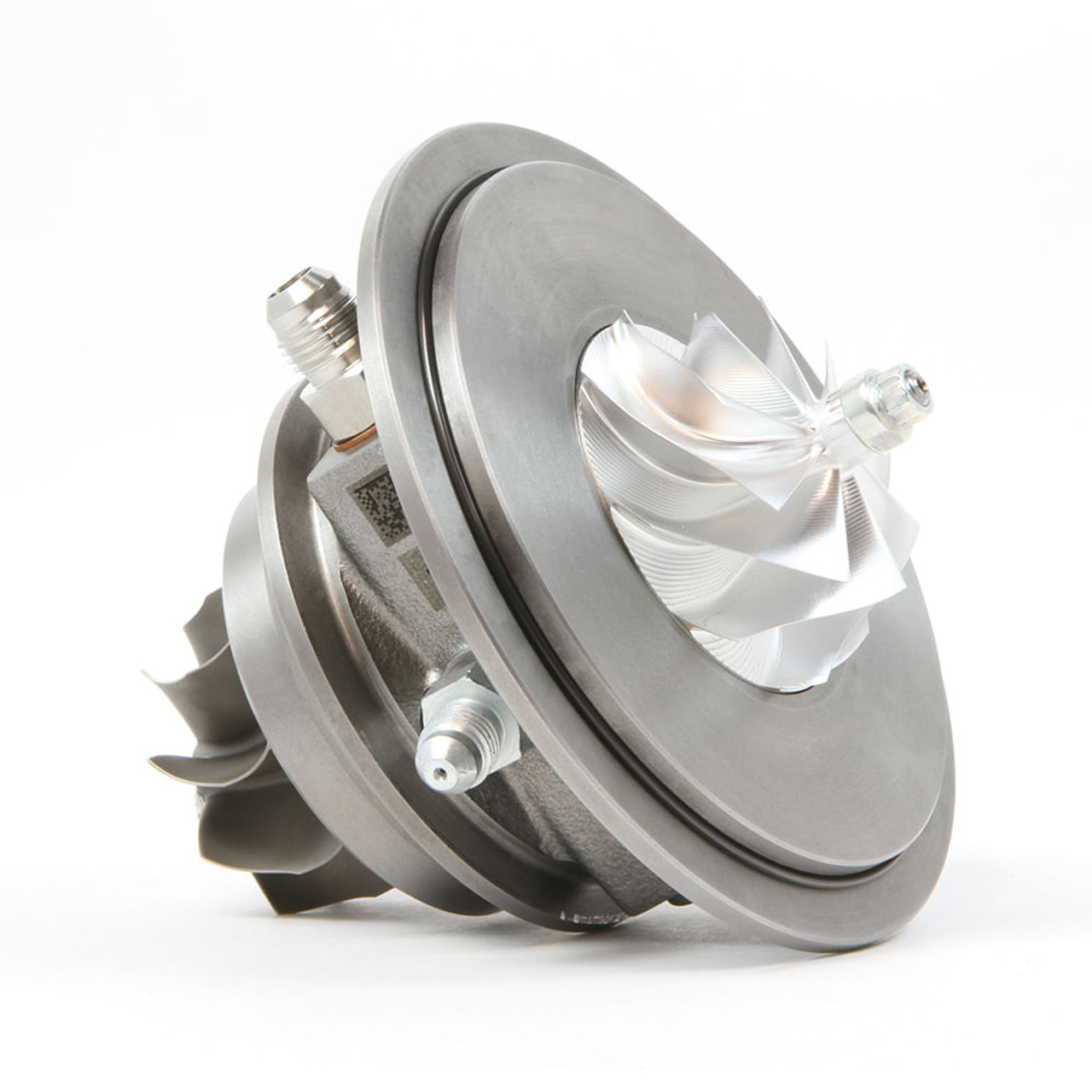

The Garrett 934113-5002S G25-700 Reverse Rotation G-Series II CHRA (Center Housing Rotating Assembly) is a premium turbocharger core designed for high-performance and motorsports applications requiring reverse rotation configurations. Built on Garrett’s proven G-Series II platform, this CHRA delivers improved efficiency, durability, and power handling for demanding builds.
Engineered with advanced aerodynamics and upgraded bearing systems, the G25-700 CHRA supports high horsepower goals while maintaining fast spool characteristics and consistent performance. The reverse rotation design makes it ideal for custom twin-turbo setups, marine applications, and unique engine configurations where standard rotation is not suitable.
This CHRA is a direct replacement for compatible G25-700 turbochargers and is perfect for rebuilds, upgrades, or custom fabrication projects.
Key Features:
- G-Series II aerodynamic improvements for increased efficiency
- Reverse rotation configuration for specialized applications
- Supports up to 700 horsepower
- Dual ceramic ball bearing system for improved response
- Fully assembled CHRA for easy installation or rebuilds
- Designed for high-performance and motorsports use
Fitment:
- Universal / Custom Applications
- Compatible with Garrett G25-700 Turbochargers
- Ideal for reverse rotation turbo setups
- Common in custom twin-turbo, marine, and motorsports builds
FAQ
What is a reverse rotation CHRA?
A reverse rotation CHRA spins in the opposite direction of a standard turbo, allowing flexibility in custom builds where turbo orientation or packaging requires it.
What horsepower can this support?
The G25-700 platform supports up to approximately 700 horsepower depending on engine setup and tuning.
Is this a complete turbocharger?
No, this is the CHRA (center section) only. Compressor and turbine housings are not included.
Can this be used in standard rotation setups?
No, this unit is specifically designed for reverse rotation applications and is not compatible with standard rotation turbo systems.
Specifications for Garrett 934113-5002S
| Specification | Details |
|---|---|
| Part Number | 934113-5002S |
| Brand | Garrett Motion |
| Series | G-Series II |
| Model | G25-700 |
| Rotation | Reverse Rotation |
| Bearing Type | Dual Ceramic Ball Bearing |
| Horsepower Rating | Up to 700 HP |
| UPC | N/A |
| GTIN | N/A |
| Shipping Weight | Approximately 6 lbs |
| Shipping Dimensions | 10" x 8" x 8" |
| Prop 65 Warning | This product may contain chemicals known to the State of California to cause cancer and reproductive harm. |
