Product Description

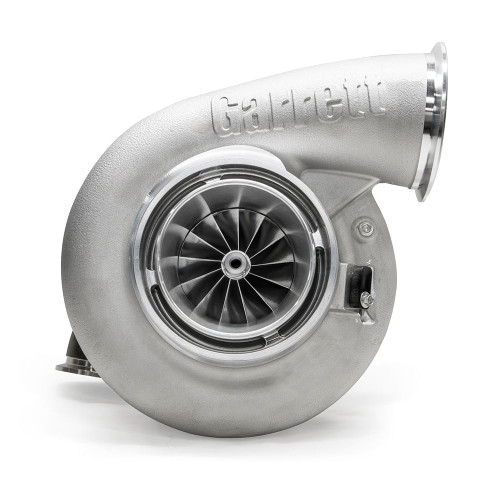

The Garrett 888169-5005S G45-1500 Super Core is a race-proven, high-performance turbocharger core engineered to support extreme horsepower applications up to 1500 HP. Built with Garrett’s latest aerodynamic and bearing technologies, this Super Core is designed for custom turbo setups requiring maximum airflow, efficiency, and durability.
Featuring a fully assembled rotating assembly, the G45-1500 Super Core includes a high-efficiency compressor and turbine wheel combination paired with a robust dual ball bearing center housing. This configuration reduces friction, improves spool characteristics, and enhances overall turbocharger reliability under extreme boost conditions.
This standard rotation Super Core is ideal for custom fabrication projects, competition builds, and high-horsepower street or race applications where uncompromising performance is required.
Key Features:
- Supports up to 1500 horsepower
- G-Series compressor aerodynamics for maximum airflow
- Dual ceramic ball bearing system for reduced friction and faster spool
- Fully assembled Super Core for custom turbo builds
- High-strength turbine wheel for extreme durability
- Standard rotation configuration
Fitment:
- Universal / Custom Turbo Applications
- Compatible with custom fabricated turbo kits
- Ideal for drag racing, pulling, and high-performance street builds
FAQ
What is a Super Core?
A Super Core is a fully assembled center section of a turbocharger that includes the compressor wheel, turbine wheel, and bearing housing, allowing for custom turbo configurations.
What horsepower can this turbo support?
The Garrett G45-1500 is rated to support up to approximately 1500 horsepower depending on setup and engine configuration.
Is this a complete turbocharger?
No, this is a Super Core only and requires compatible compressor and turbine housings for full installation.
Does this use a ball bearing system?
Yes, it features a dual ceramic ball bearing system for improved response and durability.
Specifications for Garrett 888169-5005S
| Specification | Details |
|---|---|
| Part Number | 888169-5005S |
| Brand | Garrett Motion |
| Product Type | Turbocharger Super Core |
| Compressor Inducer | Approximately 80mm |
| Max Horsepower | Up to 1500 HP |
| Bearing System | Dual Ceramic Ball Bearing |
| Rotation | Standard Rotation |
| UPC | N/A |
| GTIN | N/A |
| Shipping Weight | Approximately 25 lbs |
| Shipping Dimensions | 14" x 14" x 14" |
| Prop 65 Warning | This product may contain chemicals known to the State of California to cause cancer and reproductive harm. |
