Product Description

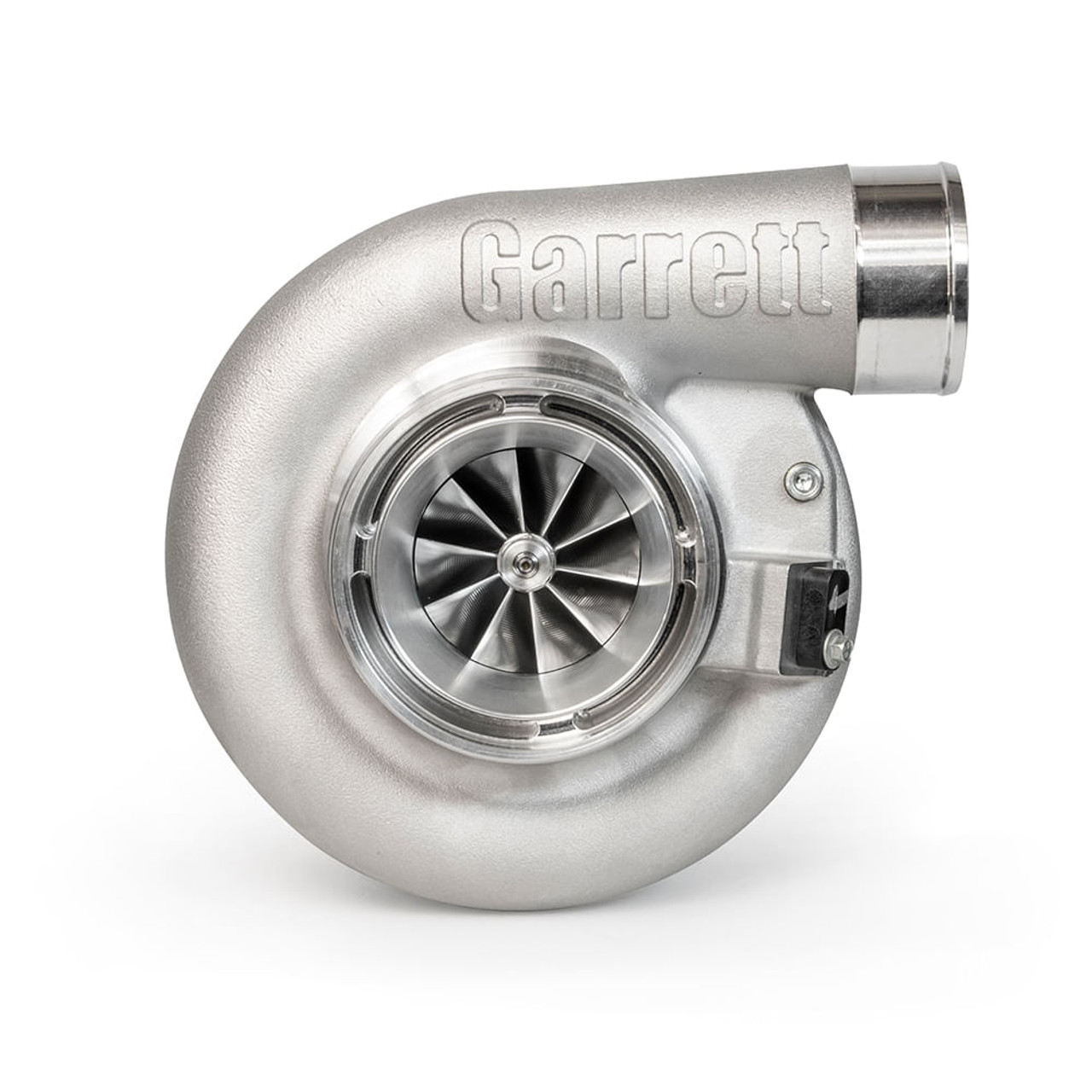

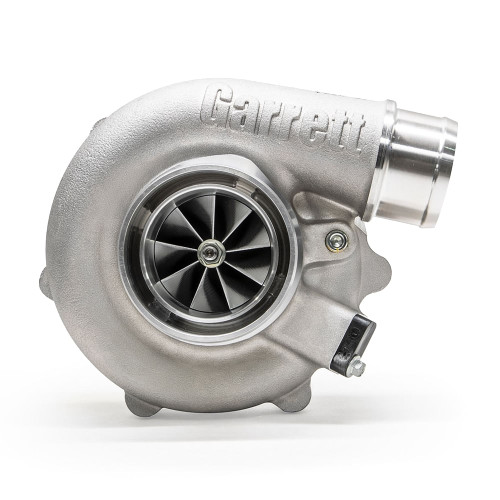

The Garrett 860777-5003S G40-900 Super Core is a high-performance turbocharger center housing rotating assembly (CHRA) engineered for extreme horsepower applications. Designed as part of Garrett’s G-Series lineup, this Super Core delivers exceptional airflow, efficiency, and durability for serious performance enthusiasts and racers.
Capable of supporting up to 900 horsepower, the G40-900 utilizes advanced aerodynamics, a fully machined billet compressor wheel, and a high-temperature resistant turbine design. This Super Core is ideal for custom turbo builds, upgrades, or replacements where maximum performance and reliability are required.
The standard rotation configuration ensures compatibility with a wide range of turbo setups, making it a versatile choice for custom fabrication and high-end performance builds.
Key Features:
- Supports up to 900 horsepower
- Advanced G-Series compressor aerodynamics
- Fully machined billet compressor wheel
- High-temperature capable turbine wheel
- Dual ceramic ball bearing system for reduced friction
- Improved efficiency and transient response
- Standard rotation configuration
Fitment:
- Universal / Custom Turbo Applications
- Gasoline and Diesel Performance Builds
- Compatible with custom fabricated turbo systems
FAQ
What is a Super Core?
A Super Core is the complete CHRA assembly including the compressor and turbine wheels, designed for use in custom turbocharger builds or as a replacement core.
How much horsepower can this support?
The Garrett G40-900 Super Core supports up to 900 horsepower depending on engine setup and tuning.
Is this a complete turbocharger?
No, this is not a complete turbo. It requires a compatible turbine housing and compressor housing for full installation.
Does this use ball bearings?
Yes, it features a dual ceramic ball bearing system for improved durability and faster spool.
Specifications for Garrett 860777-5003S
| Specification | Details |
|---|---|
| Part Number | 860777-5003S |
| Brand | Garrett |
| Model | G40-900 |
| Horsepower Rating | Up to 900 HP |
| Rotation | Standard Rotation |
| Bearing Type | Dual Ceramic Ball Bearing |
| UPC | N/A |
| GTIN | N/A |
| Shipping Weight | Approximately 15 lbs |
| Shipping Dimensions | 12" x 12" x 10" |
| Prop 65 Warning | This product may contain chemicals known to the State of California to cause cancer and reproductive harm. |
