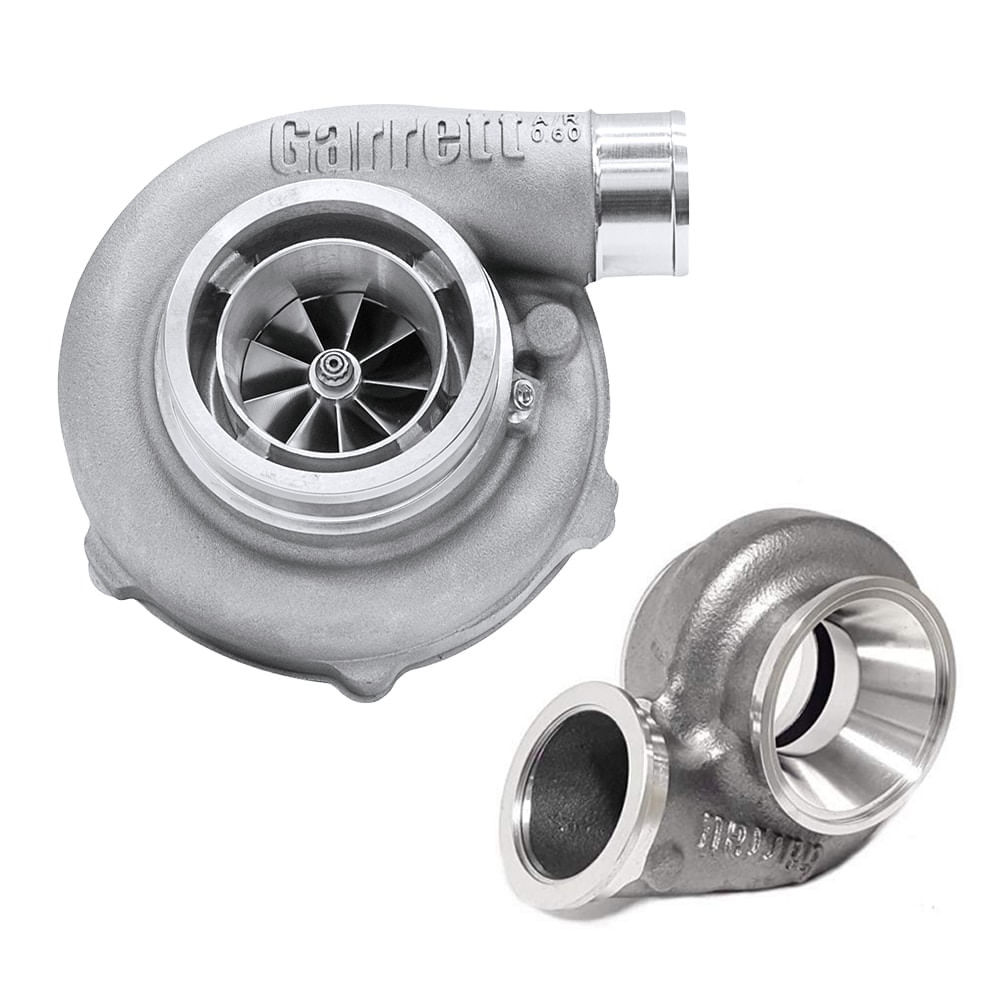

Product Description
The Garrett 856801-5038S GTX3076R Gen II Turbocharger Assembly Kit delivers cutting-edge performance, efficiency, and reliability for high-performance gasoline and motorsports applications. Featuring Garrett’s advanced Gen II GTX compressor wheel technology, this turbo provides significantly improved airflow, faster spool-up, and higher horsepower potential compared to previous generations.
Designed with a V-Band inlet and outlet configuration and a 0.83 A/R turbine housing, this turbocharger offers excellent exhaust flow and installation flexibility for custom builds. The dual ball bearing center housing reduces friction, improves transient response, and enhances durability under extreme conditions.
This complete assembly kit is ideal for enthusiasts and builders looking to push serious power levels while maintaining responsiveness and reliability.
Key Features:
- GTX Gen II compressor wheel for maximum airflow and efficiency
- Dual ball bearing center section for faster spool and durability
- V-Band inlet and outlet for secure, leak-free connections
- 0.83 A/R turbine housing for balanced power and response
- Capable of supporting high horsepower applications
- Ideal for street, track, and motorsports builds
Fitment:
- Universal / Custom Applications
- Gasoline performance builds
- Compatible with custom turbo setups requiring V-Band connections
FAQ
What horsepower range does the GTX3076R Gen II support?
This turbocharger is capable of supporting approximately 500–750 horsepower depending on engine setup and tuning.
What makes the Gen II version better?
The Gen II features an updated compressor wheel design that improves airflow, efficiency, and spool characteristics over the original GTX series.
Is this a direct bolt-on turbo?
No, this is a universal turbocharger designed for custom installations and fabrication.
Does this turbo include everything needed for installation?
This is an assembly kit, but additional components such as manifolds, oil lines, and intercooler piping may be required depending on your setup.
Specifications for Garrett 856801-5038S
| Specification | Details |
|---|---|
| Part Number | 856801-5038S |
| Brand | Garrett |
| Turbo Model | GTX3076R Gen II |
| Compressor Technology | Gen II GTX Billet Compressor Wheel |
| Bearing System | Dual Ball Bearing |
| Turbine Housing A/R | 0.83 A/R |
| Inlet / Outlet | V-Band / V-Band |
| Cooling Type | Oil & Water Cooled |
| UPC | N/A |
| GTIN | N/A |
| Shipping Weight | Approximately 25 lbs |
| Shipping Dimensions | 14" x 14" x 12" |
| Prop 65 Warning | This product may contain chemicals known to the State of California to cause cancer and reproductive harm. |
