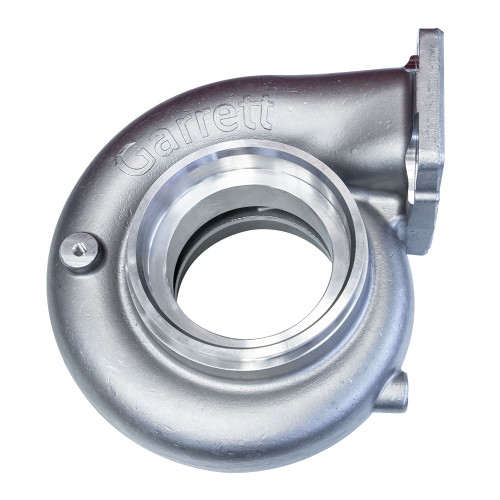

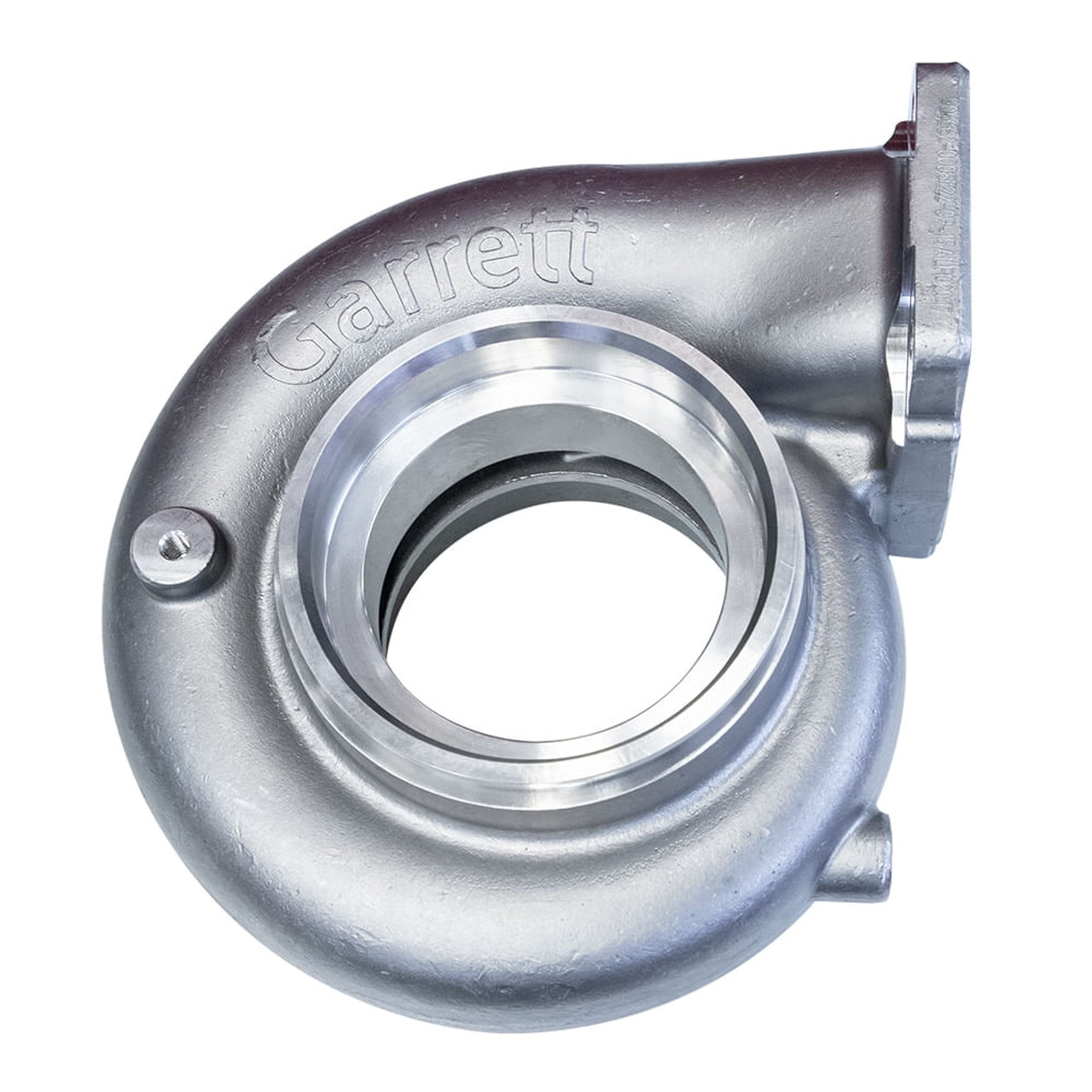

GARRETT 761208-0077 G47 TURBINE HSG KIT 1.23 A/R T6 V-BAND IN/OUT

Product Description

The Garrett 761208-0077 G47 Turbine Housing Kit is engineered for high-performance and competition-level diesel and gas applications requiring maximum exhaust flow and efficiency. Featuring a 1.23 A/R ratio and T6 flange with V-band inlet and outlet, this turbine housing is designed to support large-frame turbochargers in high horsepower builds.

Built for durability and optimal thermal efficiency, this Garrett G-Series turbine housing provides improved exhaust gas flow, reduced backpressure, and enhanced turbo response when paired with the correct turbocharger setup. Ideal for custom turbo systems, race trucks, and high-boost applications.

This housing is part of Garrett’s proven G-Series lineup, delivering reliability and performance trusted by professional builders and racers worldwide.

Key Features:

• 1.23 A/R turbine housing for high flow applications
• T6 flange configuration for large-frame turbo setups
• V-band inlet and outlet for secure, leak-free connections
• Designed for Garrett G47 turbocharger systems
• Improves exhaust flow and reduces backpressure
• High-temp resistant cast construction

Fitment:

• Universal / Custom Turbo Applications
• Compatible with Garrett G47 Turbo Systems
• Requires T6 Manifold Setup
• Ideal for high horsepower diesel and gas builds

FAQ

What does the 1.23 A/R mean?
The 1.23 A/R ratio determines the size and flow characteristics of the turbine housing. This larger A/R is ideal for high horsepower applications requiring maximum top-end airflow.

Is this housing for street use?
This turbine housing is best suited for high-performance or race applications due to its size and flow characteristics, which may reduce low-end spool.

What turbo is this compatible with?
This housing is designed specifically for Garrett G47 series turbochargers.

Does this include clamps or hardware?
This is a turbine housing kit; hardware may vary depending on supplier packaging, so verify before installation.

Specifications for Garrett 761208-0077
