Product Description

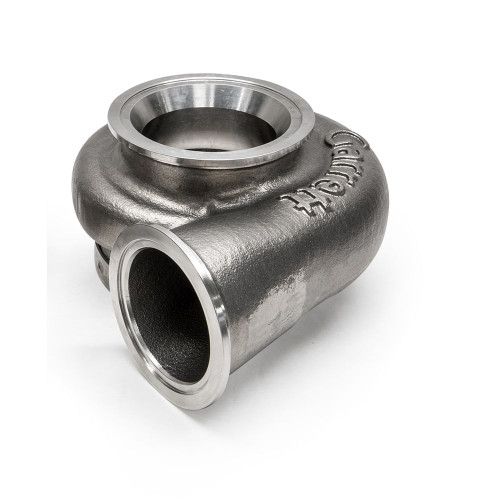

The Garrett 757707-0033 G40 Turbine Housing Kit is engineered for high-performance turbocharger builds requiring precision airflow, durability, and maximum efficiency. Featuring a divided T4 inlet and V-band outlet, this 0.95 A/R turbine housing is optimized for improved exhaust pulse energy, faster spool-up, and enhanced top-end power.
Designed specifically for Garrett G-Series G40 turbochargers, this turbine housing allows performance enthusiasts and racers to fine-tune their turbo setup for optimal performance across a wide RPM range. The divided (twin-scroll) T4 configuration helps separate exhaust pulses, reducing turbo lag and increasing turbine efficiency.
Built from high-quality, heat-resistant materials, this turbine housing is ideal for demanding applications including racing, high-horsepower street builds, and custom fabrication projects.
Key Features:
- 0.95 A/R turbine housing for balanced spool and top-end power
- Divided (twin-scroll) T4 inlet for improved exhaust flow efficiency
- V-band outlet for secure, leak-free connection
- Designed for Garrett G40 turbochargers
- Standard rotation configuration
- High-temp resistant construction for extreme performance conditions
Fitment:
- Garrett G-Series G40 Turbocharger Applications
- Custom high-performance builds
- Fabricated turbo systems requiring T4 divided inlet
FAQ
What does a 0.95 A/R turbine housing mean?
A 0.95 A/R provides a strong balance between quick spool-up and high RPM airflow, making it ideal for street and race applications.
What is the benefit of a divided T4 housing?
A divided (twin-scroll) design separates exhaust pulses, improving turbine efficiency, reducing lag, and increasing overall performance.
Is this compatible with all G40 turbos?
Yes, this housing is designed specifically for Garrett G40 turbocharger platforms using standard rotation.
Does this include clamps or hardware?
This is a turbine housing kit; additional installation hardware may be required depending on your setup.
Specifications for Garrett 757707-0033
| Specification | Details |
|---|---|
| Part Number | 757707-0033 |
| Brand | Garrett Motion |
| Series | G-Series G40 |
| A/R Ratio | 0.95 |
| Inlet Flange | Divided T4 (Twin Scroll) |
| Outlet Type | V-Band |
| Rotation | Standard Rotation |
| UPC | N/A |
| GTIN | N/A |
| Shipping Weight | Approximately 12 lbs |
| Shipping Dimensions | 12" x 12" x 10" |
| Material | High-Temperature Cast Iron |
| Prop 65 Warning | This product may contain chemicals known to the State of California to cause cancer and reproductive harm. |
