Product Description

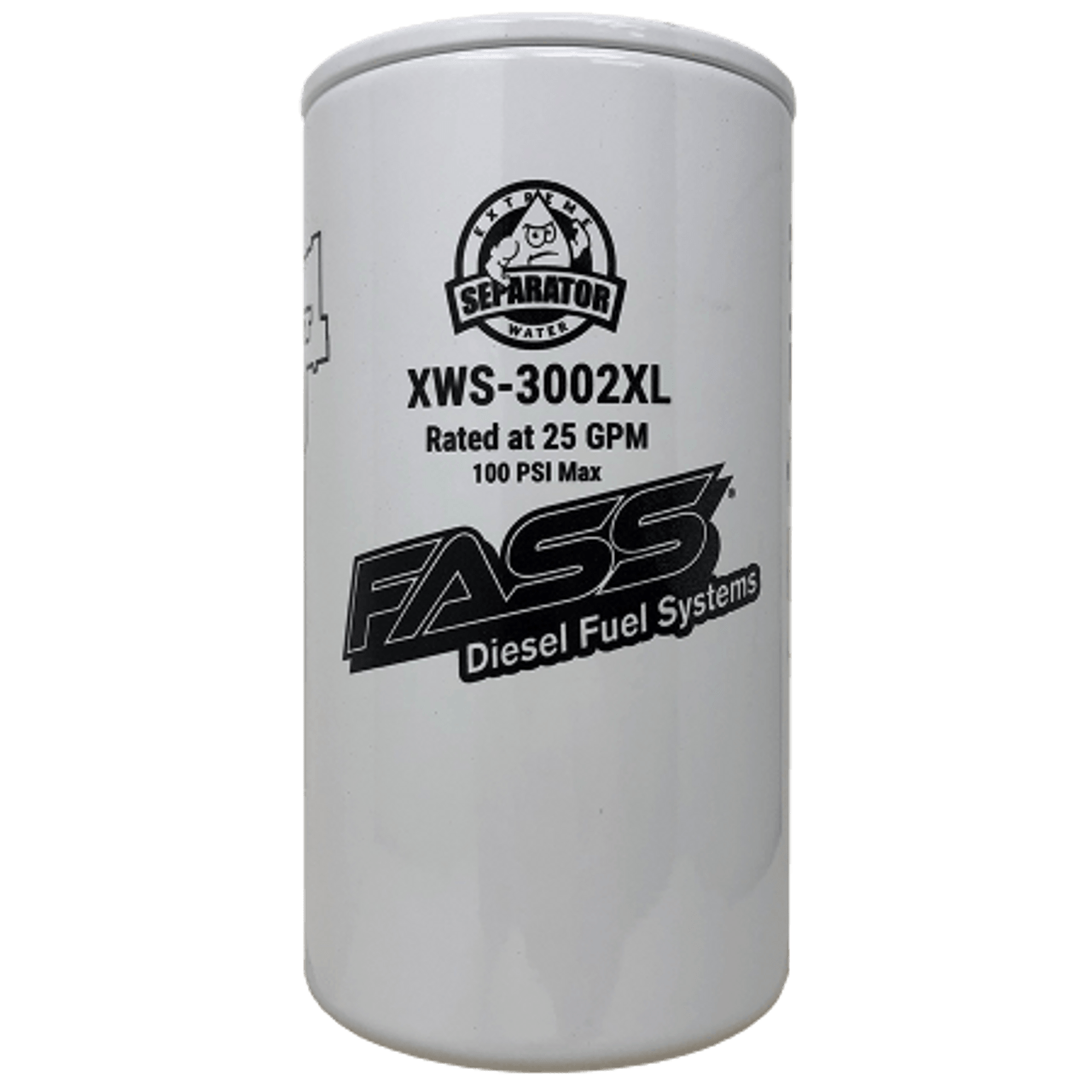

Keep water out of your injectors. The FASS XWS3002XL Extended Length Extreme Water Separator delivers 2-micron absolute water removal for FASS Titanium & Titanium Signature Series fuel systems. The XL canister increases media surface area for longer service intervals, while the updated hydroglass element traps water internally—no drain petcock required.
- 2-micron absolute water separation with high efficiency media
- Extended length canister = longer service interval
- No-drain design (water is trapped in the element)
- Designed to be used with PF3001XL Particulate Filter
Fitment
Universal for FASS Titanium and Titanium Signature Series fuel systems. On updated systems, install the XWS3002XL on the pressure side and the PF3001XL on the suction side.
Cross-Reference / FASS Alternatives (CPP Diesel links)
- FASS PF3001XL Extended Length Particulate Filter — required companion filter
- FASS XWS3002 Extreme Water Separator (standard length)
- FASS FP3000XL Filter Pack — includes (1) XWS3002XL + (1) PF3001XL
- FASS FP3000 Filter Pack — standard-length XWS3002 + PF3001
Installation & Manuals
See FASS installation manuals here: FASS Manuals Index • Titanium Signature Series Manuals
Specifications for Fass XWS3002XL
| Brand | FASS Fuel Systems |
| Part Number | XWS3002XL |
| Filter Rating | 2 microns absolute |
| Compatibility | FASS Titanium & Titanium Signature Series fuel systems |
| Required Companion Filter | PF3001XL (Extended Length Particulate Filter) |
| UPC | 860003521175 |
| GTIN | 00860003521175 |
| Package Dimensions | 4.00" (W) x 9.00" (H) x 4.00" (D) |
| Shipping | Calculated at checkout (small parcel) |
| Prop 65 | WARNING: Cancer & Reproductive Harm — www.P65Warnings.ca.gov |
FAQ
Does the XWS3002XL replace older FASS water separators with drains?Yes. The updated hydroglass element traps water internally, eliminating the need for a drain. It must be paired with the PF3001XL particulate filter and is not compatible with older FF-3003/FF-3010 or FS-1001/FS-1020 filters.
Which side of the system should the XWS3002XL be installed on?
On updated systems, place the XWS3002XL on the pressure side and the PF3001XL on the suction side for optimal performance.
Is the XL version worth it over the standard XWS3002?
The XL canister provides more media surface area for extended service intervals. If you want longer intervals between changes, the XL is the better choice.
What maintenance interval should I expect?
Intervals vary by fuel quality and usage. Many users service filters at regular oil change intervals or when the filter minder indicates restriction.
Will this fit non-FASS fuel systems?
It’s designed for FASS Titanium/Titanium Signature Series heads. Use only on compatible FASS systems.
