Product Description
Give your 2018–2019 Ford F-150 3.0L Powerstroke steady, air-free fuel with the FASS TSPF19140F110G Titanium Signature Series PLUS 110 GPH system. It combines FASS Whisper Technology, advanced air/vapor separation, and 2-micron absolute filtration to protect injectors and keep pressure stable on stock–700 HP setups.
Why Choose TSPF19140F110G
- 110 GPH flow for stock–700 HP F-150 3.0L builds.
- Air/vapor separation + integrated water separation + 2-micron filtration.
- ORB fittings, 6061 black-anodized components, black fuel line for a clean install.
- Bolt-on bracketry that utilizes factory bed bolts—no welding or drilling.
- Limited lifetime warranty with registration.
Fitment
- 2018–2019 Ford F-150 3.0L Powerstroke
- Note: Cab & chassis or modified tanks may require minor tweaks.
Recommended FASS Cross-Reference / Complements (CPP Diesel)
- TSF19140F110G Titanium Signature (non-PLUS alternative)
- Service filters (current style): XWS3002 + PF3001
- Extended-length filters: XWS3002XL + PF3001XL
- Filter packs: FP3000 and FP3000XL
Installation Instructions
Download the latest Titanium Signature Series manuals from FASS: https://www.fassride.com/manuals
FAQ
Q: Is 110 GPH enough for my 3.0L Powerstroke?
A: Yes—this PLUS system is rated for stock–700 HP, ideal for daily/towing setups and mild tuning.
Q: Which way do the current-style filters mount?
A: Install PF3001 (particulate) on the suction side and XWS3002 (extreme water separator) on the pressure side. For XL filters, pair PF3001XL with XWS3002XL.
Q: Do I need a different kit for higher power?
A: For this platform, 110 GPH covers stock–700 HP. If your goals exceed that range, contact us to review fueling/tuning needs.
Q: What pressure does this system run?
A: PLUS systems are spec’d around ~65 PSI to maintain stable fuel pressure under demand.
Specifications for Fass TSPF19140F110G
| Brand | FASS Fuel Systems |
|---|---|
| Part Number | TSPF19140F110G |
| Flow Rating | 110 GPH |
| Supported Power | Stock–700 HP |
| Fuel Pressure | ~65 PSI (system spec) |
| Vehicle Fitment | 2018–2019 Ford F-150 3.0L Powerstroke |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Package Dimensions (W × H × D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (standard ground) |
| Prop 65 | See California Proposition 65 information at P65Warnings.ca.gov |

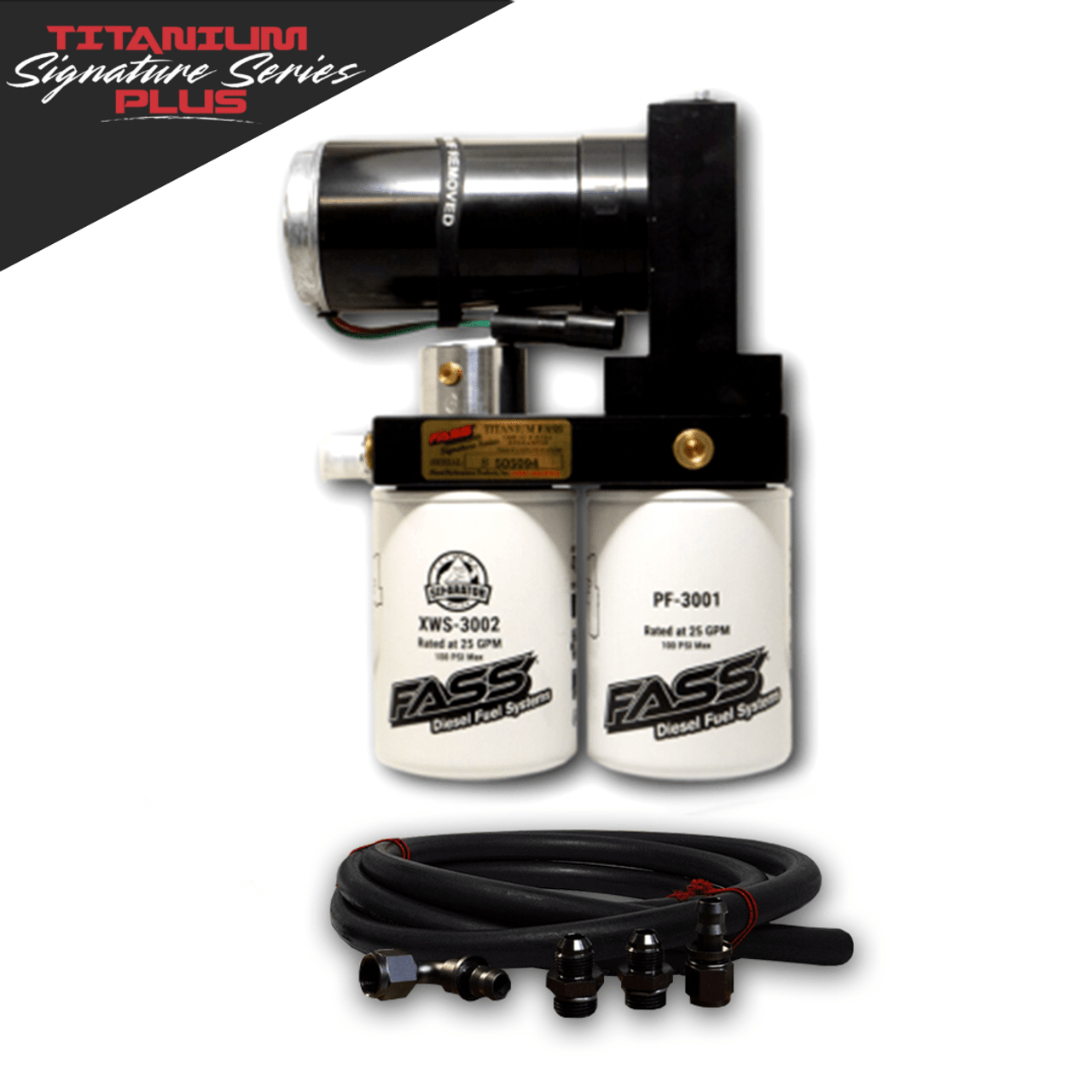

What’s Included

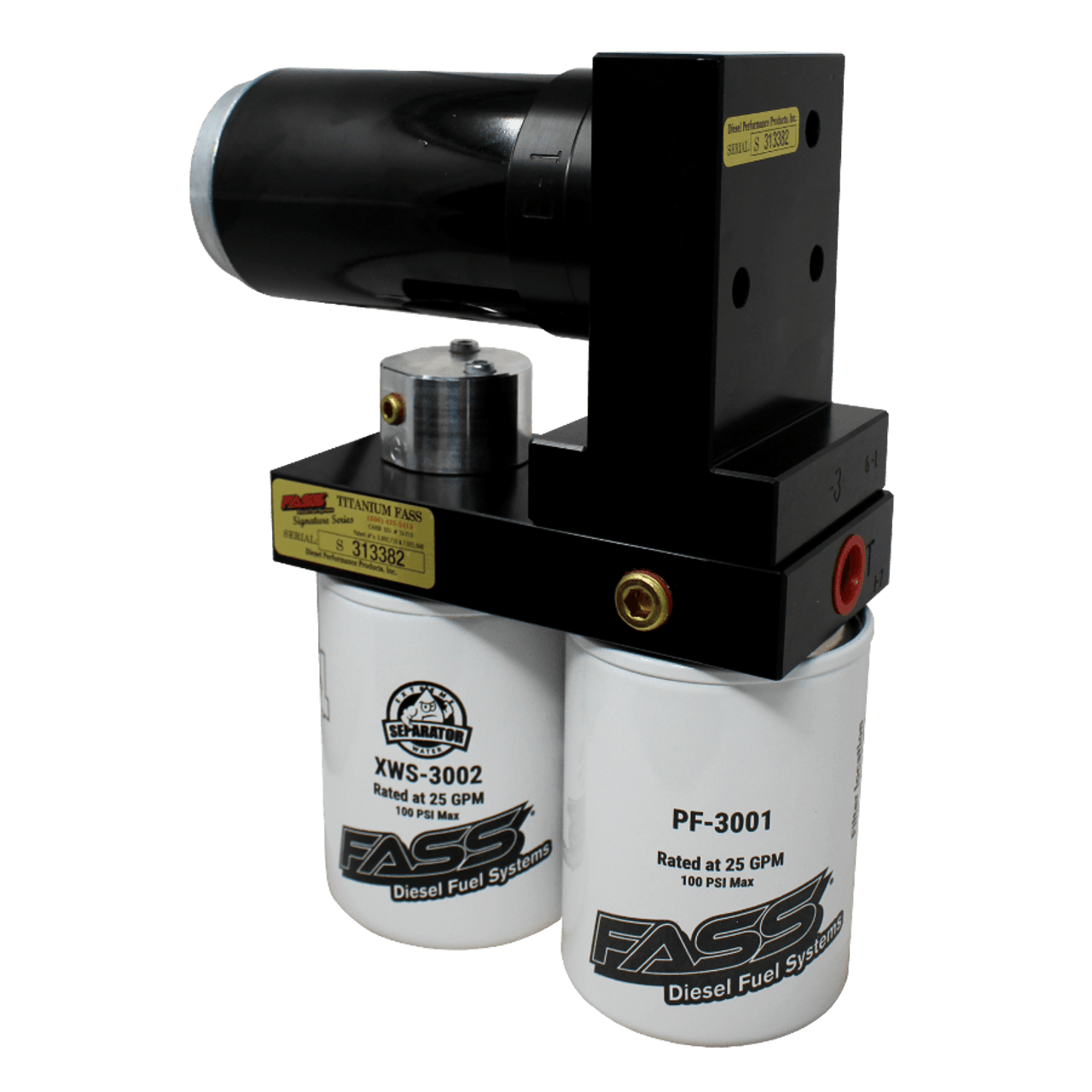

- Titanium Signature Series PLUS pump assembly (110 GPH)
- Model-specific install kit, lines, fittings, harness
- Mounting brackets & hardware
- Current-style filter set (service with PF3001/XWS3002 or XL equivalents)
Notes
- Follow FASS filter service intervals; use clean diesel fuel.
- Keep install documentation; register for warranty coverage.
