Product Description
Unlock clean, consistent fuel delivery for your 2017–2022 Ford Powerstroke 6.7L with the FASS TSPF18290F240G Titanium Signature Series PLUS 240 GPH system. It combines FASS Whisper Technology, advanced air/vapor separation, and 2-micron absolute filtration to protect injectors and maintain stable pressure on 900–1200 HP builds.
Why Choose TSPF18290F240G
- High-flow 240 GPH to support serious performance (900–1200 HP).
- Air/vapor separation + integrated water separation + 2-micron filtration.
- ORB fittings, 6061 black-anodized components, black fuel line.
- Bolt-on bracketry that utilizes factory bed bolts—clean, quick install.
- Limited lifetime warranty with registration.
Fitment
- 2017–2022 Ford F-250/F-350/F-450 Super Duty 6.7L Powerstroke
- Note: Cab & chassis or modified tanks may require minor tweaks.
Recommended FASS Cross-Reference / Complements (CPP Diesel)
- NDTSPF18290F240G No-Drop Series PLUS (900–1200 HP)
- TSPF18250F220G Titanium Signature Series PLUS (700–900 HP)
- TSPF18180F140G Titanium Signature Series PLUS (Stock–700 HP)
- Service filters (current style): XWS3002 + PF3001 (or XL length: XWS3002XL + PF3001XL)
- Filter packs: FP3000 and FP3000XL
Installation Instructions
Download the latest Titanium Signature Series manuals from FASS: https://www.fassride.com/manuals
FAQ
Q: Is 240 GPH right for my build?
A: Yes—this PLUS system is optimized for 900–1200 HP trucks. If you’re below that range, consider the 220 GPH (TSPF18250F220G) or 140 GPH (TSPF18180F140G).
Q: Which way do the current-style filters mount?
A: Install PF3001 (particulate) on the suction side and XWS3002 (extreme water separator) on the pressure side. For XL, pair PF3001XL with XWS3002XL.
Q: Do I need a “No-Drop” kit?
A: Not required, but the No-Drop version (NDTSPF18290F240G) simplifies pickup plumbing and avoids dropping the tank.
Q: What pressure does this system run?
A: The PLUS system is spec’d around ~65 PSI to maintain stable fuel pressure at high demand.
Specifications for Fass TSPF18290F240G
| Brand | FASS Fuel Systems |
|---|---|
| Part Number | TSPF18290F240G |
| Flow Rating | 240 GPH |
| Supported Power | 900–1200 HP |
| Fuel Pressure | ~65 PSI (system spec) |
| Vehicle Fitment | 2017–2022 Ford Super Duty 6.7L Powerstroke |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Package Dimensions (W × H × D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (standard ground) |
| Prop 65 | See California Proposition 65 information at P65Warnings.ca.gov |

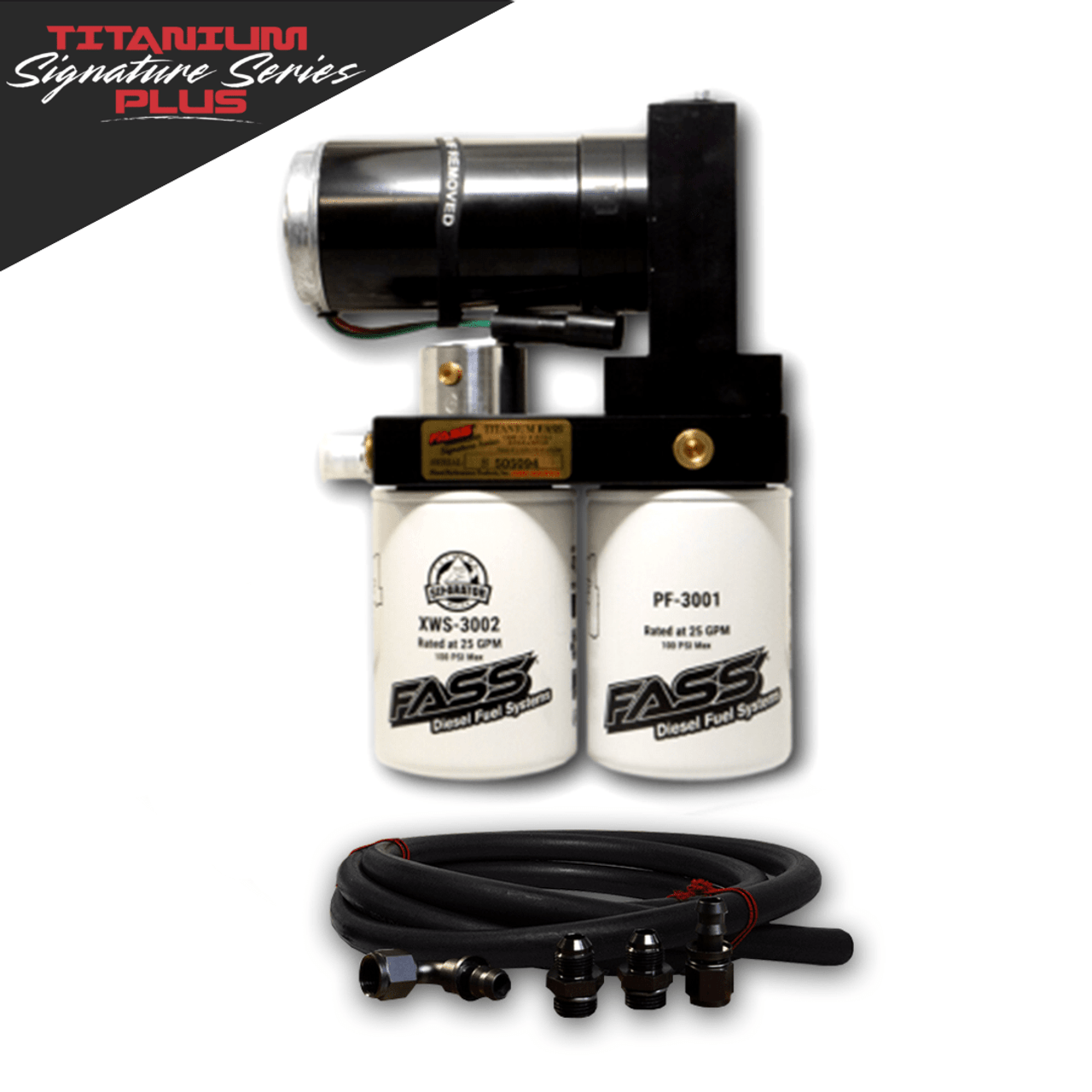

What’s Included
- Titanium Signature Series PLUS pump assembly (240 GPH)
- Model-specific install kit, lines, fittings, harness
- Mounting brackets & hardware
- Current-style filter set (service with PF3001/XWS3002 or XL equivalents)
Notes
- Follow FASS filter service intervals and use clean diesel fuel.
- Verify tuning and injection-system health on higher-power applications.
