Product Description
Deliver clean, consistent fuel to your 2017–2022 Ford 6.7L Powerstroke with the FASS TSPF18250F220G Titanium Signature Series PLUS 220 GPH fuel system. Designed for 700–900 HP applications, this system uses FASS Whisper Technology to operate quietly while maintaining stable fuel pressure and superior filtration.
Why Choose TSPF18250F220G
- 220 GPH flow capacity supports tuned and performance builds (700–900 HP).
- Removes air/vapor from diesel fuel for improved combustion and injector longevity.
- 2-micron absolute filtration with integrated water separation.
- Black-anodized 6061 components and ORB fittings for leak-free installation.
- Bolt-on mounting brackets — no cutting or welding required.
- Limited lifetime warranty with registration.
Fitment
- 2017–2022 Ford F-250 Super Duty 6.7L Powerstroke
- 2017–2022 Ford F-350 Super Duty 6.7L Powerstroke
- Note: Cab & chassis models may require custom mounting solutions.
Recommended FASS Cross-Reference / Complements (CPP Diesel)
- NDTSPF18250F220G No-Drop Series PLUS (700–900 HP)
- TSPF18180F165G Titanium Signature Series PLUS (Stock–700 HP)
- TSPF18290F240G Titanium Signature Series PLUS (900–1200 HP)
- TSF18250F220G Titanium Signature (non-PLUS version)
- Service filters (current style): XWS3002 + PF3001 or XL length (XWS3002XL + PF3001XL).
- Filter packs: FP3000, FP3000XL
- Fuel pickup upgrade: STK5500B Diesel Fuel Sump + Suction Tube
Installation Instructions
Get the latest official manuals directly from FASS: https://www.fassride.com/manuals
FAQ
Q: Is 220 GPH enough for my tuned 6.7L Powerstroke?
A: Yes — this PLUS system is optimized for 700–900 HP builds and will support most street and tow setups with aftermarket tuning.
Q: Which filters come with this kit?
A: Includes the current-generation PF3001 (particulate) and XWS3002 (water separator). XL filters (XWS3002XL/PF3001XL) can be used for extended service intervals.
Q: Do I need a No-Drop kit?
A: Not required, but the No-Drop Series PLUS kit (NDTSPF18250F220G) simplifies pickup installation without removing the fuel tank.
Q: Will this void my factory warranty?
A: The system carries a limited lifetime FASS warranty (with registration). Vehicle warranty coverage depends on dealer policy — keep your install records.
Specifications for Fass TSPF18250F220G
| Brand | FASS Fuel Systems |
|---|---|
| Part Number | TSPF18250F220G |
| Flow Rating | 220 GPH |
| Supported Power | 700–900 HP |
| Fuel Pressure | ~65 PSI (system spec) |
| Vehicle Fitment | 2017–2022 Ford F-250/F-350 6.7L Powerstroke |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Package Dimensions (W × H × D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (standard ground) |
| Prop 65 | See California Proposition 65 information at P65Warnings.ca.gov |
What’s Included

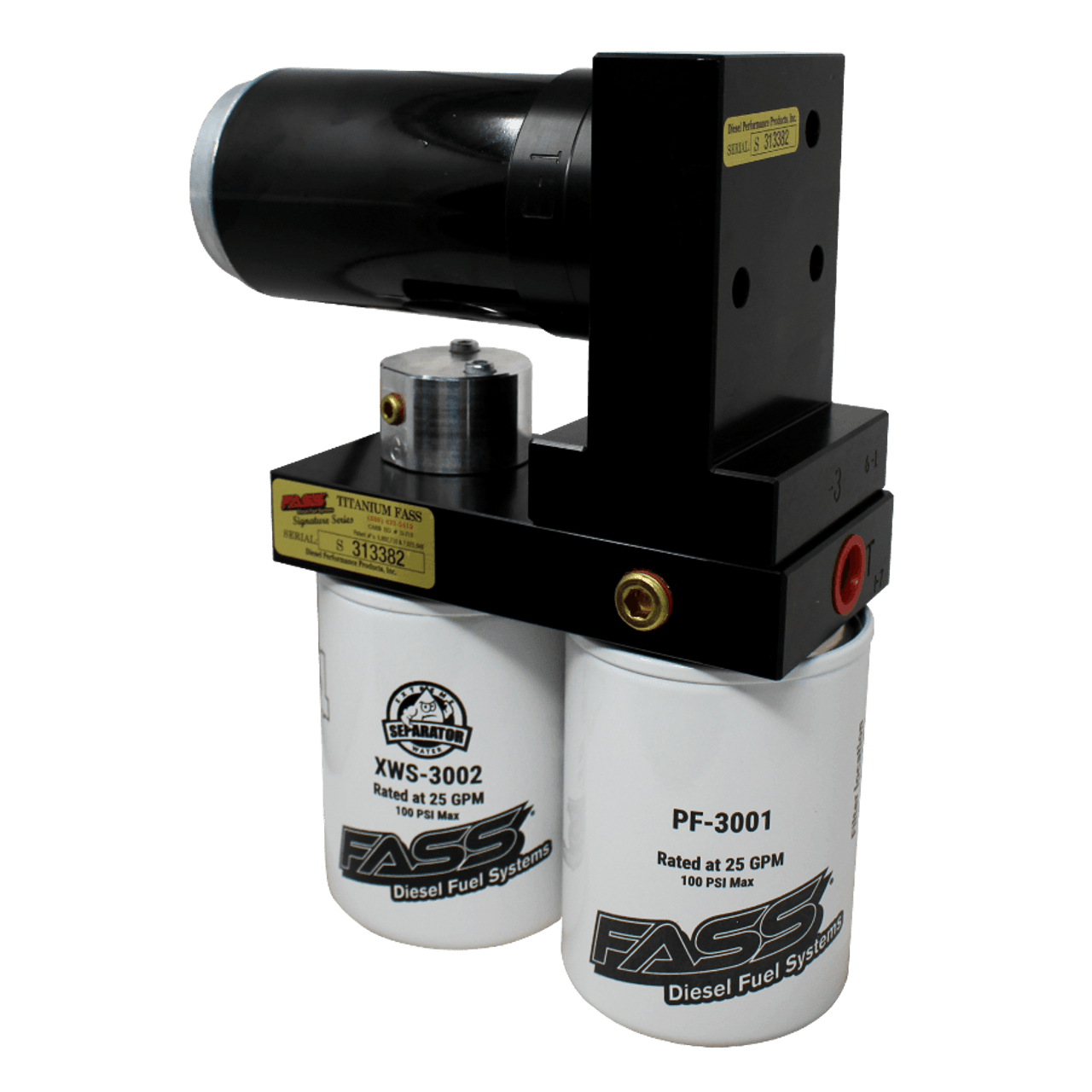

- Titanium Signature Series PLUS pump assembly (220 GPH)
- Model-specific install kit with lines, fittings, and harness
- Mounting brackets & hardware
- Current-style filter set (PF3001/XWS3002)
Notes
- Service filters regularly and use clean diesel fuel.
- Verify tuning and fuel system health for high-horsepower applications.
