Product Description

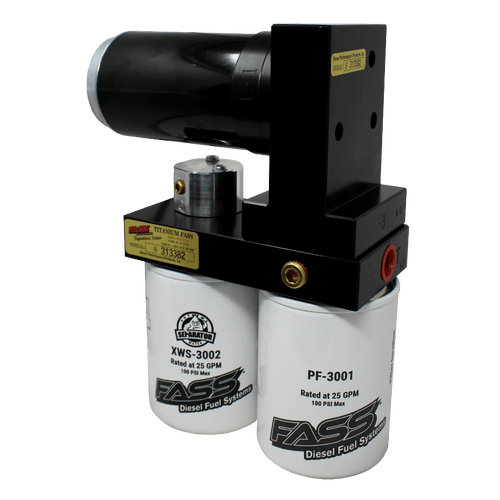

Protect your 2017–2022 Ford Super Duty 6.7L Powerstroke from fuel-related failure with the FASS TSPF18180F140G Titanium Signature Series PLUS 140 GPH Fuel System. Designed for stock through 700 HP applications, this upgraded lift-pump system uses FASS Whisper Technology to deliver quiet operation, advanced air/vapor separation, and 2-micron filtration for superior injector protection and consistent rail pressure.
Why Choose TSPF18180F140G
- 140 GPH flow rate supports stock – 700 HP Powerstroke builds.
- Removes air, vapor, and water before fuel reaches the CP4 or CP4.2 pump.
- 2-micron absolute filtration for long injector life and stable fuel pressure.
- 6061 anodized aluminum construction with ORB fittings for leak-free install.
- Includes mount brackets that use factory frame locations—no drilling required.
- Limited Lifetime Warranty (when registered with FASS).
Fitment
- 2017–2022 Ford F-250 Super Duty 6.7L Powerstroke
- 2017–2022 Ford F-350 Super Duty 6.7L Powerstroke
- Fits both SRW and DRW models (see installation manual for mount location).
Recommended FASS Cross-Reference / Complements (CPP Diesel)
- NDTSPF18180F140G No-Drop Series PLUS (Stock–700 HP)
- TSPF18250F220G Titanium Signature Series PLUS (700–1100 HP)
- TSPF18290F240G Titanium Signature Series PLUS (1100–1500 HP)
- TSF18180F140G Titanium Signature (non-PLUS alternative)
- Service Filters (current style): XWS3002 Extreme Water Separator + PF3001 Particulate Filter
- XL Filters: XWS3002XL + PF3001XL
- Filter Packs: FP3000, FP3000XL
- Fuel Pickup Upgrade: STK5500B Diesel Fuel Sump + Suction Tube Upgrade
Installation Instructions
Download the latest Titanium Signature Series manuals directly from FASS: https://www.fassride.com/manuals
FAQ
Q: Is 140 GPH enough for my 6.7L Powerstroke?
A: Yes — the TSPF18180F140G PLUS system is rated for stock through 700 HP builds, perfect for tuned daily drivers and tow rigs.
Q: Which direction do the filters mount?
A: Install PF3001 (particulate) on the suction side and XWS3002 (extreme water separator) on the pressure side. For XL filters, use PF3001XL and XWS3002XL.
Q: Do I need a sump or No-Drop kit?
A: Not required, but the No-Drop kit (NDTSPF18180F140G) simplifies pickup plumbing and avoids dropping the tank.
Q: Does this replace the factory frame pump?
A: Yes, this system completely replaces the stock frame-mounted fuel pump while integrating air separation and filtration in one unit.
Specifications for Fass TSPF18180F140G
| Brand | FASS Fuel Systems |
|---|---|
| Part Number | TSPF18180F140G |
| Flow Rating | 140 GPH |
| Supported Power | Stock – 700 HP |
| Fuel Pressure | ≈ 65 PSI (system spec) |
| Vehicle Fitment | 2017–2022 Ford F-250/F-350 6.7L Powerstroke |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Package Dimensions (W × H × D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (standard ground) |
| Prop 65 | See California Proposition 65 information at P65Warnings.ca.gov |

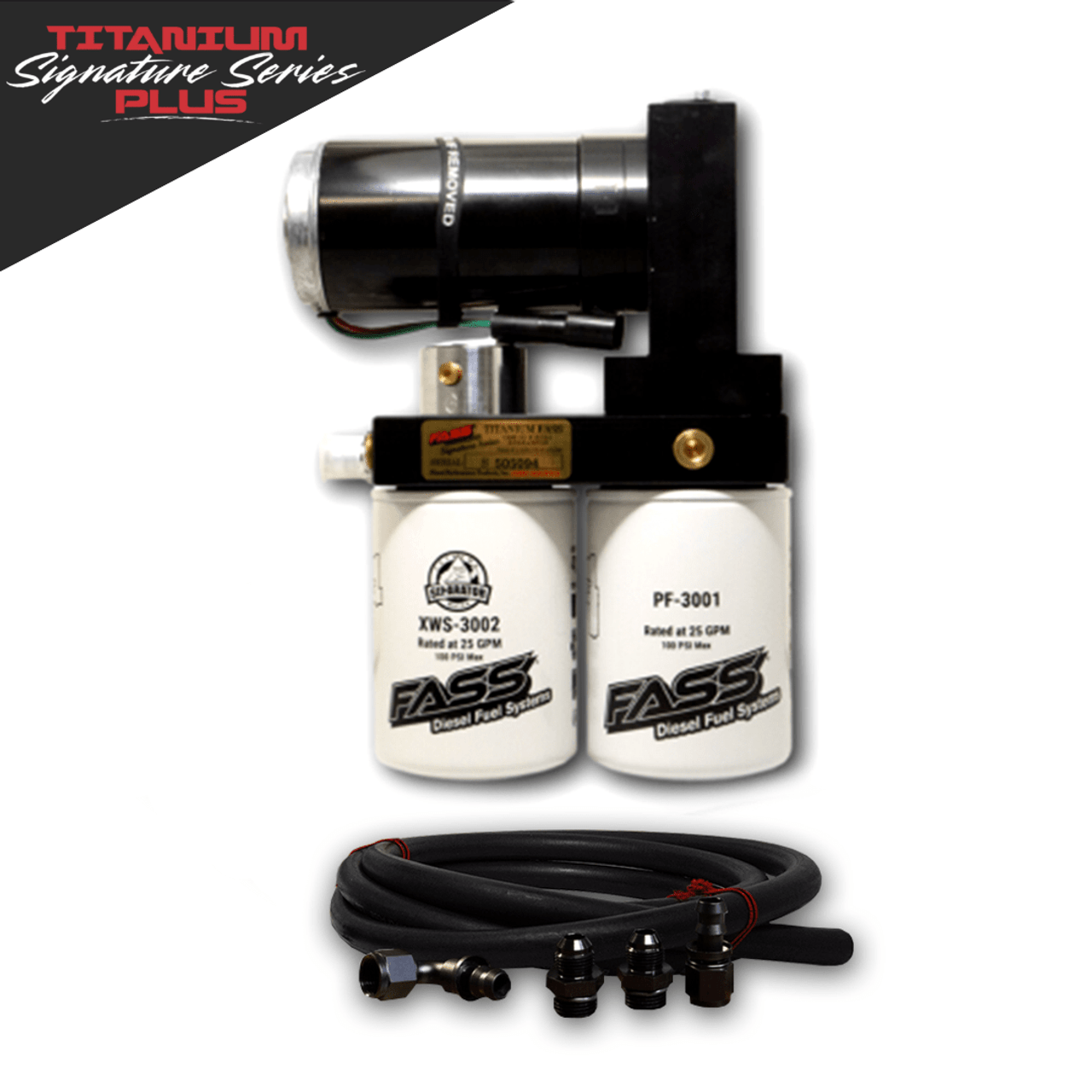

What’s Included
- Titanium Signature Series PLUS pump assembly (140 GPH)
- Model-specific install kit, lines, fittings, harness
- Mounting brackets & hardware
- Current-style filter set (PF3001/XWS3002 or XL equivalents)
Notes
- Use only clean diesel and replace filters at FASS recommended intervals.
- Check fuel pressure after installation and verify tuning on modified trucks.
