FASS

FASS TSPF17250F220G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2011-2016 FORD POWERSTROKE 6.7L (900-1200HP)

(No reviews yet) Write a Review
SKU:
FASTSPF17250F220G
MPN:
TSPF17250F220G
Shipping:
Calculated at Checkout
  • FASS TSPF17250F220G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2011-2016 FORD POWERSTROKE 6.7L (900-1200HP)
  • FASS TSPF17250F220G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2011-2016 FORD POWERSTROKE 6.7L (900-1200HP)
  • FASS TSPF17250F220G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2011-2016 FORD POWERSTROKE 6.7L (900-1200HP)
$829.00

Description

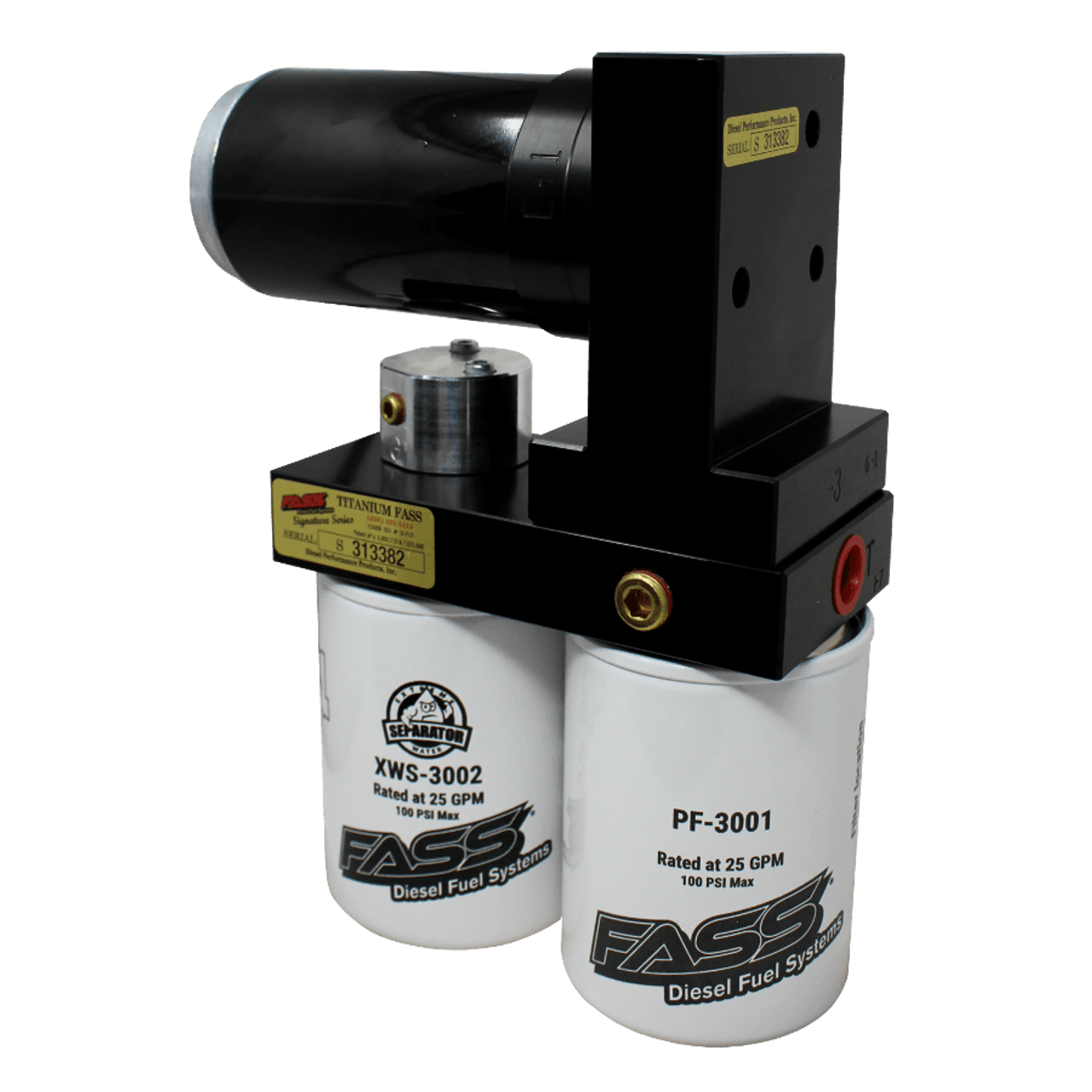

The Titanium Signature Series Plus is the next evolution of our popular Titanium Signature Series Fuel System. The Titanium Signature Series Plus is equipped with ORB (O-Ring Boss) Fittings, 6061 aluminum black anodized fittings, and black fuel line for an ultra-clean installation!

This Fuel System was engineered by Fass to be the top-performing, longest-lasting, and most reliable aftermarket filtration system in the diesel industry. Rated at 220 gallons per hour and backed by our limited lifetime warranty, the Titanium Signature Series Plus Fuel System can support your Ford Powerstroke 6.7L diesel engine with enough fuel for up to 900 HP.

This Fuel System also offers advanced filtration benefits that will help protect your Powerstroke injection Systems, effectively extending the life of both your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and Fass Diesel Fuel Systems patented air/vapor removal process.

Powerstroke diesel engines are known for having injector failure issues; and Fass Filtration Systems are designed to eliminate those that are fuel related.

Titanium Signature Series Plus Fuel Systems lead the diesel industry in both quality and effectiveness. This is because here at Fass, we focus on perfecting our Fuel Systems and how they are engineered-taking the extra steps that our competitors simply do not. By doing this, we have less than a 2 percent failure rating with our motor, and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

  • Fass Whisper Technology (FWT) effectively and drastically reduces the sound levels of the Signature Series Plus Fass Diesel Fuel System to a whisper while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
  • Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the Fass System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90-degree sharp angle. Fass Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
  • Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional Fass Fuel Heater options will help insure Extreme cold weather operations!
  • Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series Plus System takes only minutes, and all brackets are made from machined steel for superior support and strength.

Note: Installation of this kit on a cab and chassis may require modifications.
Features:

  • New Whisper Technology
  • Complete Replacement System
  • 220 Gallons Per Hour Flow Rating
  • Removes Water, Air and Debris from Diesel Fuel
  • 2 Micron Filtration Rating
  • Protects and Extends the Life of Your Injectors
  • Improved Cold Weather Starts
  • Decreases Carbon Monoxide and Carbon Dioxide Emissions
  • 1/2 Inch Fuel Lines and Ports
  • Fuel Mileage Improvement
  • Improved Fuel Volume Delivery
  • Smoother Engine Idle
  • Optional Electric Heater Ports
  • Optional Fuel Pressure Gauge Port
  • Limited Lifetime Warranty
  • 1,000,000 Mile Motor
  • 30,000 Mile Filter Life Expectancy
  • Quietest Motor on the Market
  • ORB (O-Ring Boss) Fittings
  • 6061 Aluminum Black Anodized Fittings
  • Black Fuel Line
  • 55psi

The FASS TSPF17250F220G Titanium Signature Series Plus Fuel System is a premium fuel delivery solution designed specifically for 2011-2016 Ford Powerstroke 6.7L diesel engines, supporting impressive performance of up to 900 horsepower. This cutting-edge system redefines excellence in diesel filtration, combining advanced engineering with high-quality materials to enhance both engine performance and longevity.

At the heart of the Titanium Signature Series Plus is its exceptional flow rate of 220 gallons per hour, making it one of the industry's most efficient systems. With a filtration rating of just 2 microns, it effectively removes water, air, and debris, safeguarding your fuel integrity and significantly extending the lifespan of your injectors. The built-in water separation filter and patented air/vapor removal processes protect against common injector failures associated with diesel engines.

Innovative features such as the Mass Flow Return (MFR) technology ensure consistent fuel polishing by maintaining positive pressure during delivery, preventing cavitation and enhancing cold weather performance. Additionally, the revolutionary Whisper Technology greatly reduces operational noise without sacrificing flow rates, making your driving experience quieter and more enjoyable.

Installation has been simplified with the new bolt-on bracket mounts that utilize factory bed bolts, ensuring a robust setup without the need for drilling or welding. Each component— from the 6061 aluminum black anodized fittings to the black fuel lines— is engineered for an ultra-clean aesthetic, enhancing your truck’s undercarriage while providing unparalleled durability.

With a limited lifetime warranty and an impressive motor rated for 1,000,000 miles, the FASS Titanium Signature Series Plus is the ultimate fuel system that prioritizes performance and reliability. Upgrade your Ford Powerstroke today for unmatched performance and peace of mind on the road.
