Product Description

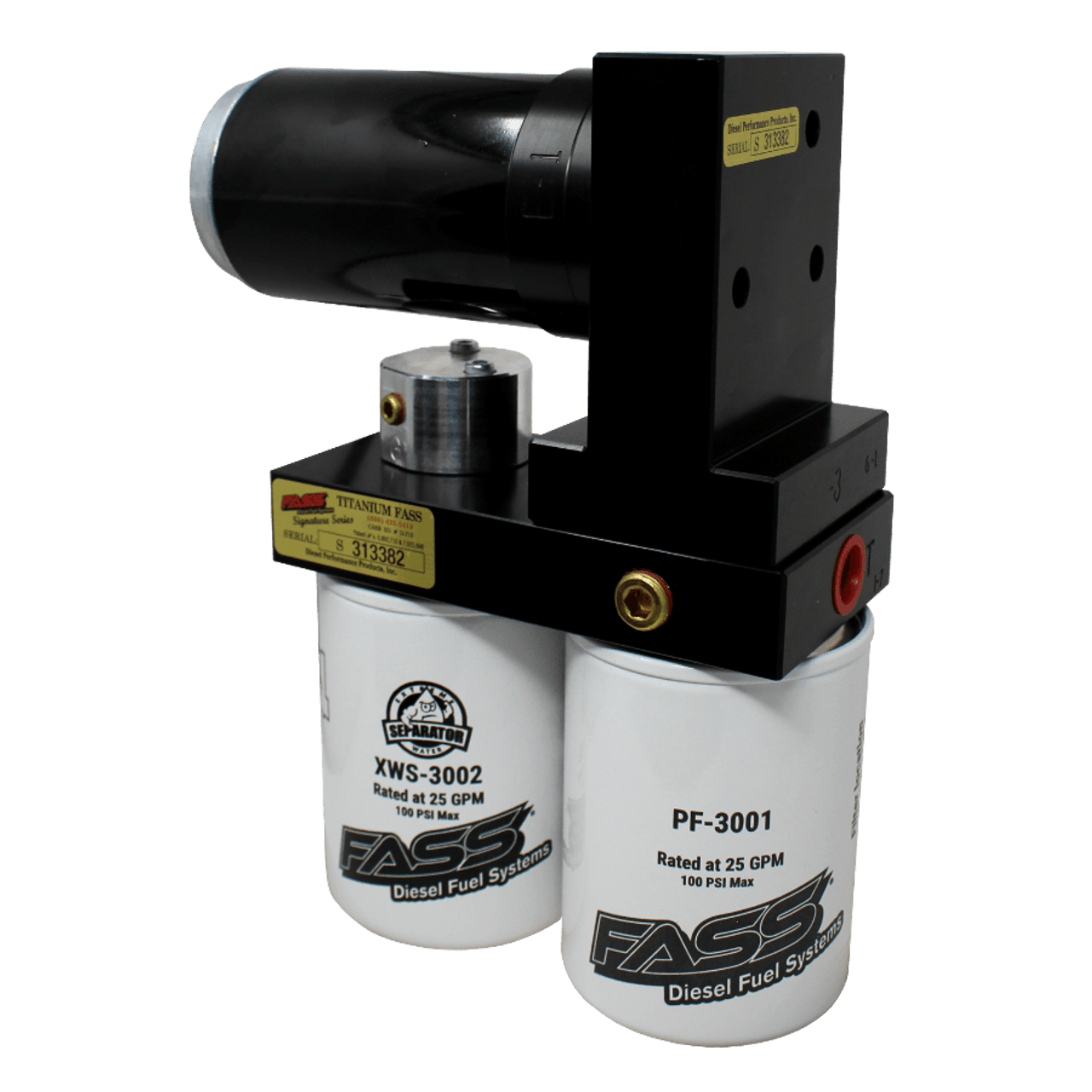

Upgrade your 2011–2016 Ford Powerstroke 6.7L to a cleaner, more consistent fuel delivery system with the FASS TSPF17180F140G Titanium Signature Series PLUS 140 GPH fuel system. Designed for stock–700 HP builds, this system utilizes FASS Whisper Technology, advanced air/vapor separation, and 2-micron filtration to protect injectors and maintain stable fuel pressure for everyday reliability and towing performance.
Why Choose TSPF17180F140G
- 140 GPH flow rate to support stock–700 HP applications.
- Air/vapor separation + integrated water separation + 2-micron absolute filtration.
- Durable 6061 black-anodized components with ORB fittings for leak-free performance.
- Quiet operation with FASS Whisper Technology.
- Bolt-on bracketry that mounts cleanly without drilling.
- Limited lifetime warranty with registration.
Fitment
- 2011–2016 Ford F-250 Super Duty 6.7L Powerstroke
- 2011–2016 Ford F-350 Super Duty 6.7L Powerstroke
- Note: Cab & chassis or aftermarket tank installations may require minor modifications.
Recommended FASS Cross-Reference / Complements (CPP Diesel)
- NDTSPF17180F140G No-Drop Series PLUS (Stock–700 HP)
- TSPF17250F220G Titanium Signature Series PLUS (700–1100 HP)
- TSPF17290F240G Titanium Signature Series PLUS (1100–1500 HP)
- TSF17180F140G Titanium Signature (non-PLUS alternative)
- Service filters: XWS3002 + PF3001 (or XL: XWS3002XL + PF3001XL)
- Filter packs: FP3000, FP3000XL
- Fuel pickup upgrade: STK5500B Diesel Fuel Sump + Suction Tube
Installation Instructions
Access official FASS manuals here: https://www.fassride.com/manuals
FAQ
Q: Is 140 GPH enough for my 6.7L Powerstroke?
A: Yes — this system is rated for stock through 700 HP builds, making it ideal for daily drivers and tow rigs.
Q: Which way do the current-style filters mount?
A: Install PF3001 (particulate) on the suction side and XWS3002 (extreme water separator) on the pressure side. For XL versions, use PF3001XL and XWS3002XL.
Q: Do I need a No-Drop kit?
A: Not required, but the No-Drop Series PLUS (NDTSPF17180F140G) simplifies pickup installation and avoids dropping the tank.
Q: What’s the expected fuel pressure?
A: The PLUS system maintains around 60 PSI for stable rail pressure on stock or mildly tuned trucks.
Specifications for Fass TSPF17180F140G
| Brand | FASS Fuel Systems |
|---|---|
| Part Number | TSPF17180F140G |
| Flow Rating | 140 GPH |
| Supported Power | Stock–700 HP |
| Fuel Pressure | ~60 PSI (system spec) |
| Vehicle Fitment | 2011–2016 Ford Powerstroke 6.7L F-250/F-350 |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Package Dimensions (W × H × D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (standard ground) |
| Prop 65 | See California Proposition 65 information at P65Warnings.ca.gov |
What’s Included
- Titanium Signature Series PLUS pump assembly (140 GPH)
- Model-specific install kit, lines, fittings, and harness
- Mounting brackets & hardware
- Current-style filter set (service with PF3001/XWS3002 or XL equivalents)
Notes
- Follow FASS service intervals and use clean diesel fuel.
- Ideal for daily drivers, tow rigs, and lightly tuned 6.7L Powerstrokes.
