Product Description
Upgrade your 2008–2010 Ford 6.4L Powerstroke with clean, consistent fuel delivery using the FASS TSPF16100G Titanium Signature Series PLUS 100 GPH system. Designed for stock–600 HP applications, this quiet, high-efficiency lift pump integrates FASS Whisper Technology, superior air/vapor separation, and 2-micron absolute filtration for long-term injector and pump protection.
Why Choose TSPF16100G
- 100 GPH flow supports stock to 600 HP builds—ideal for towing and daily driving.
- Advanced air/vapor separation with integrated water separation and 2-micron filtration.
- 6061 black-anodized billet components and durable ORB fittings for leak-free performance.
- Bolt-on bracketry designed for OEM-style installation—no cutting or welding required.
- Limited lifetime warranty with product registration.
Fitment
- 2008–2010 Ford F-250 Super Duty 6.4L Powerstroke
- 2008–2010 Ford F-350 Super Duty 6.4L Powerstroke
- Note: Cab & chassis models may require minor modifications for hose routing.
Recommended FASS Cross-Reference / Complements (CPP Diesel)
- NDTSPF16100G No-Drop Series PLUS (Stock–600HP)
- TSPF16250G Titanium Signature Series PLUS (600–900HP)
- TSPF16290G Titanium Signature Series PLUS (900–1200HP)
- Service filters (current style): XWS3002 + PF3001 (or XL length: XWS3002XL + PF3001XL)
- Filter packs: FP3000 and FP3000XL
- Fuel pickup upgrade: STK5500B Diesel Fuel Sump + Suction Tube
Installation Instructions
Download the latest Titanium Signature Series installation manuals directly from FASS: https://www.fassride.com/manuals
FAQ
Q: Is 100 GPH enough for my 6.4L Powerstroke?
A: Yes—TSPF16100G supports stock–600 HP applications and provides excellent reliability for factory or lightly tuned trucks.
Q: Which way do the filters install?
A: Mount PF3001 (particulate) on the suction side and XWS3002 (water separator) on the pressure side. For XL filters, pair PF3001XL with XWS3002XL.
Q: What if I don’t want to drop the tank?
A: Choose the NDTSPF16100G No-Drop Series PLUS—same performance, easier install.
Q: Does this system affect my truck warranty?
A: The FASS system carries a limited lifetime warranty (with registration). OEM vehicle warranty coverage varies by dealer; keep install records and follow FASS recommendations.
Specifications for Fass TSPF16100G
| Brand | FASS Fuel Systems |
|---|---|
| Part Number | TSPF16100G |
| Flow Rating | 100 GPH |
| Supported Power | Stock–600 HP |
| Fuel Pressure | ~60 PSI (system spec) |
| Vehicle Fitment | 2008–2010 Ford Powerstroke 6.4L (F-250 / F-350 Super Duty) |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Package Dimensions (W × H × D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (standard ground) |
| Prop 65 | See California Proposition 65 information at P65Warnings.ca.gov |
What’s Included

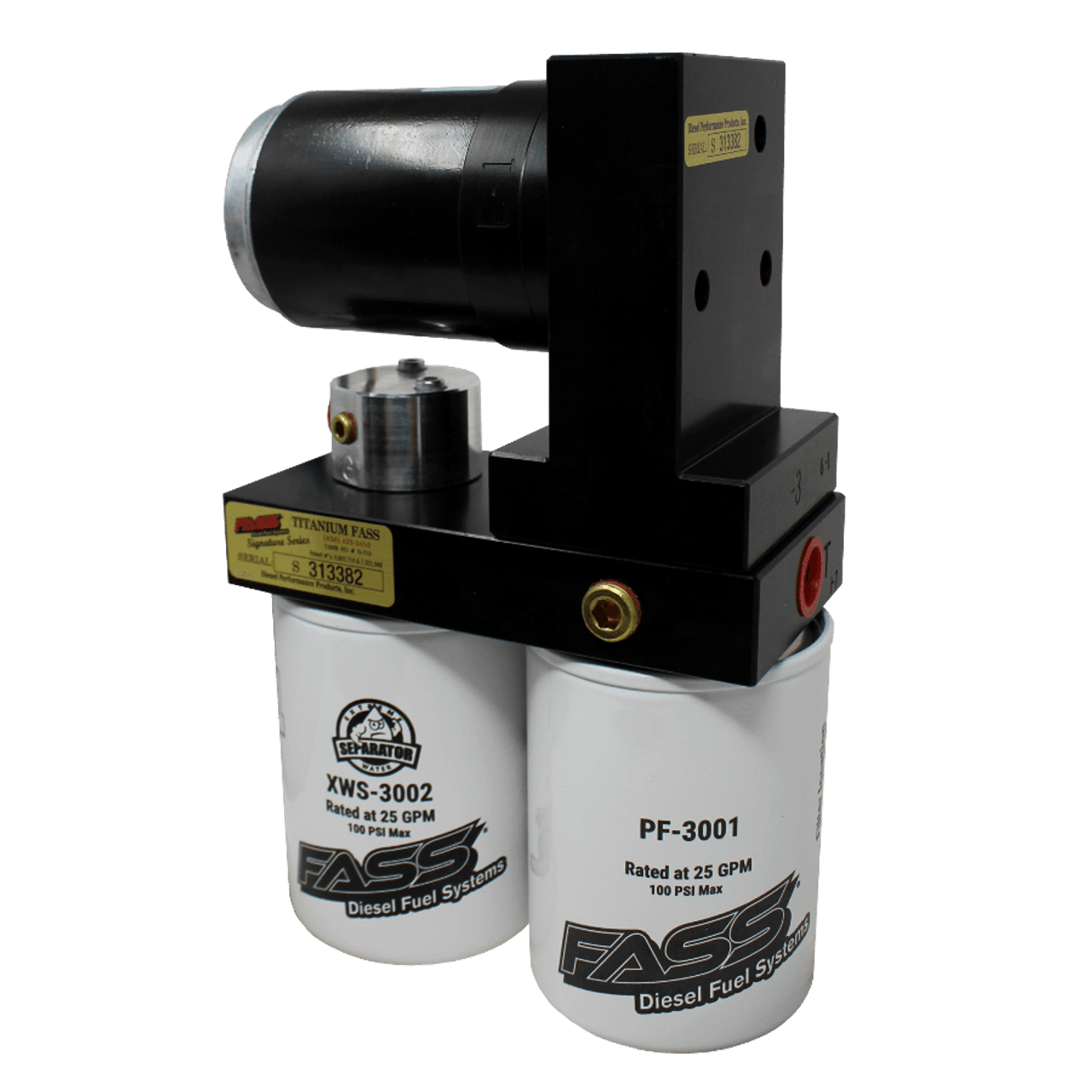

- Titanium Signature Series PLUS pump assembly (100 GPH)
- Model-specific install kit with harness, fittings, and fuel lines
- Mounting brackets & hardware
- Current-style filter set (PF3001 + XWS3002 or XL versions)
Notes
- Replace filters at FASS-recommended intervals for optimal performance.
- Use clean, low-sulfur diesel only. Verify tune compatibility on modified trucks.
