Product Description
Feed your 2000–2005 Ford Excursion 6.0L/7.3L with clean, consistent fuel using the FASS TSPF15250F220G Titanium Signature Series PLUS 220 GPH system. It combines FASS Whisper Technology, advanced air/vapor separation, and 2-micron absolute filtration to protect injectors and maintain stable pressure on builds up to 1,100 HP.
Why Choose TSPF15250F220G
- High-flow 220 GPH to support 700–1100 HP performance builds.
- Air/vapor separation, integrated water separation, 2-micron filtration.
- ORB fittings, 6061 black-anodized components, black fuel line.
- Bolt-on bracketry—uses factory bed bolts for a clean install.
- Limited lifetime warranty with registration.
Fitment
- 2000–2003 Ford Excursion 7.3L Powerstroke
- 2003–2005 Ford Excursion 6.0L Powerstroke
- Note: Cab & chassis or modified tanks may require minor tweaks.
Recommended FASS Cross-Reference / Complements (CPP Diesel)
- NDTSPF15250F220G No-Drop Series PLUS (700–1100 HP)
- TSPF15180F140G Titanium Signature Series PLUS (Stock–700 HP)
- TSPF15290F240G Titanium Signature Series PLUS (1100–1500 HP)
- TSF15250F220G Titanium Signature (non-PLUS alternative)
- Service filters (current style): XWS3002 + PF3001 (or XL length: XWS3002XL + PF3001XL)
- Filter packs: FP3000, FP3000XL
- Fuel pickup upgrade: STK5500B Diesel Fuel Sump + Suction Tube
Installation Instructions
Get the latest official manuals here: https://www.fassride.com/manuals
FAQ
Q: Is 220 GPH the right choice for my build?
A: Yes—this PLUS system is rated for 700–1100 HP, ideal for tuned Excursions that need higher sustained flow.
Q: Which way do the current-style filters go?
A: Install PF3001 (particulate) on the suction side and XWS3002 (extreme water separator) on the pressure side. For XL filters, pair PF3001XL with XWS3002XL.
Q: Do I need to drop the tank?
A: The No-Drop kit (NDTSPF15250F220G) simplifies pickup plumbing and avoids dropping the tank. Many performance builds also add a sump/suction tube like STK5500B for consistent pickup.
Q: Does this affect my vehicle warranty?
A: The FASS system has a limited lifetime warranty (with registration). Vehicle warranty decisions can vary by dealer; keep your install documentation and follow FASS guidelines.
Specifications for Fass TSPF15250F220G
| Brand | FASS Fuel Systems |
|---|---|
| Part Number | TSPF15250F220G |
| Flow Rating | 220 GPH |
| Supported Power | 700–1100 HP |
| Fuel Pressure | ~65 PSI (system spec) |
| Vehicle Fitment | 2000–2003 Excursion 7.3L; 2003–2005 Excursion 6.0L |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Package Dimensions (W × H × D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (standard ground) |
| Prop 65 | See California Proposition 65 information at P65Warnings.ca.gov |

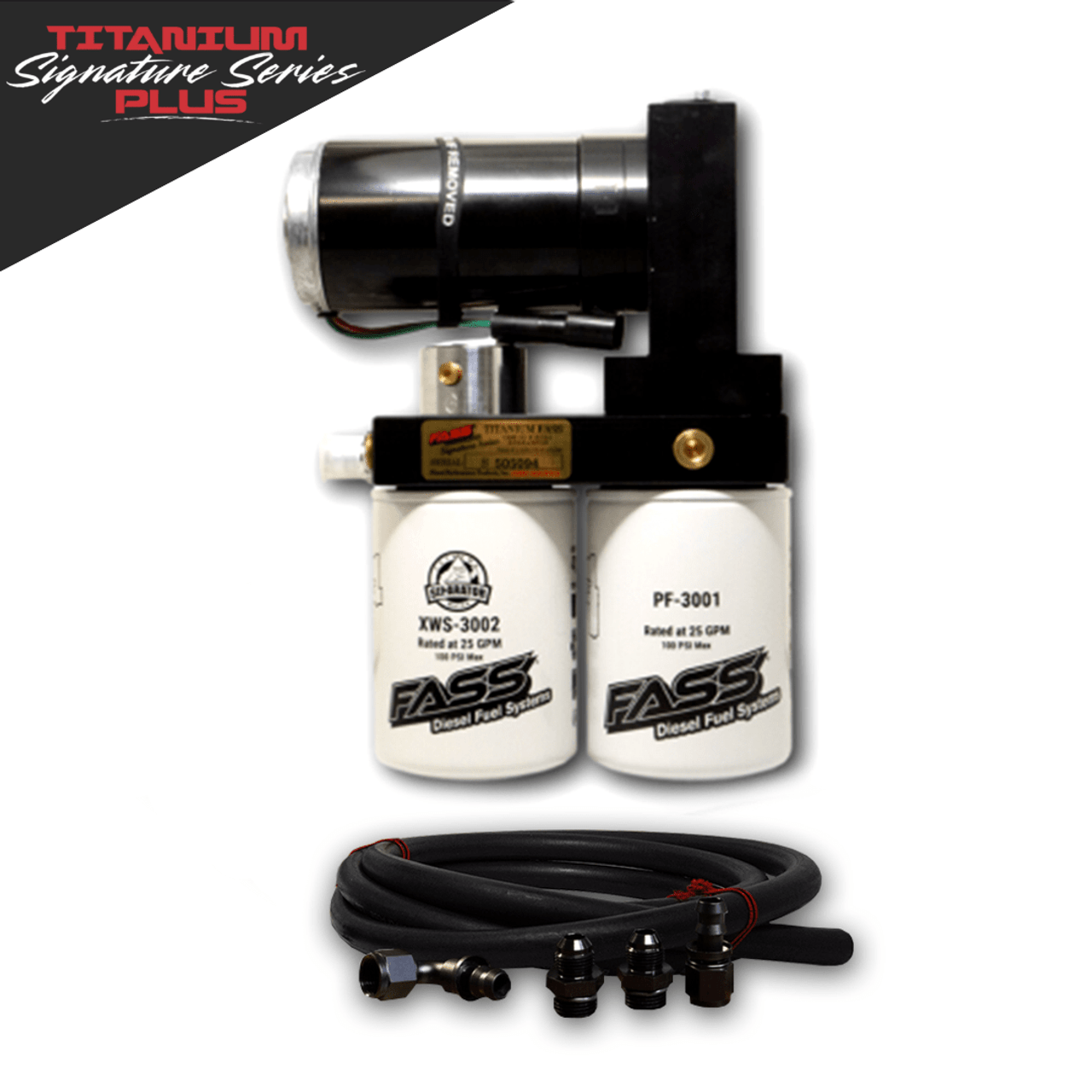

What’s Included

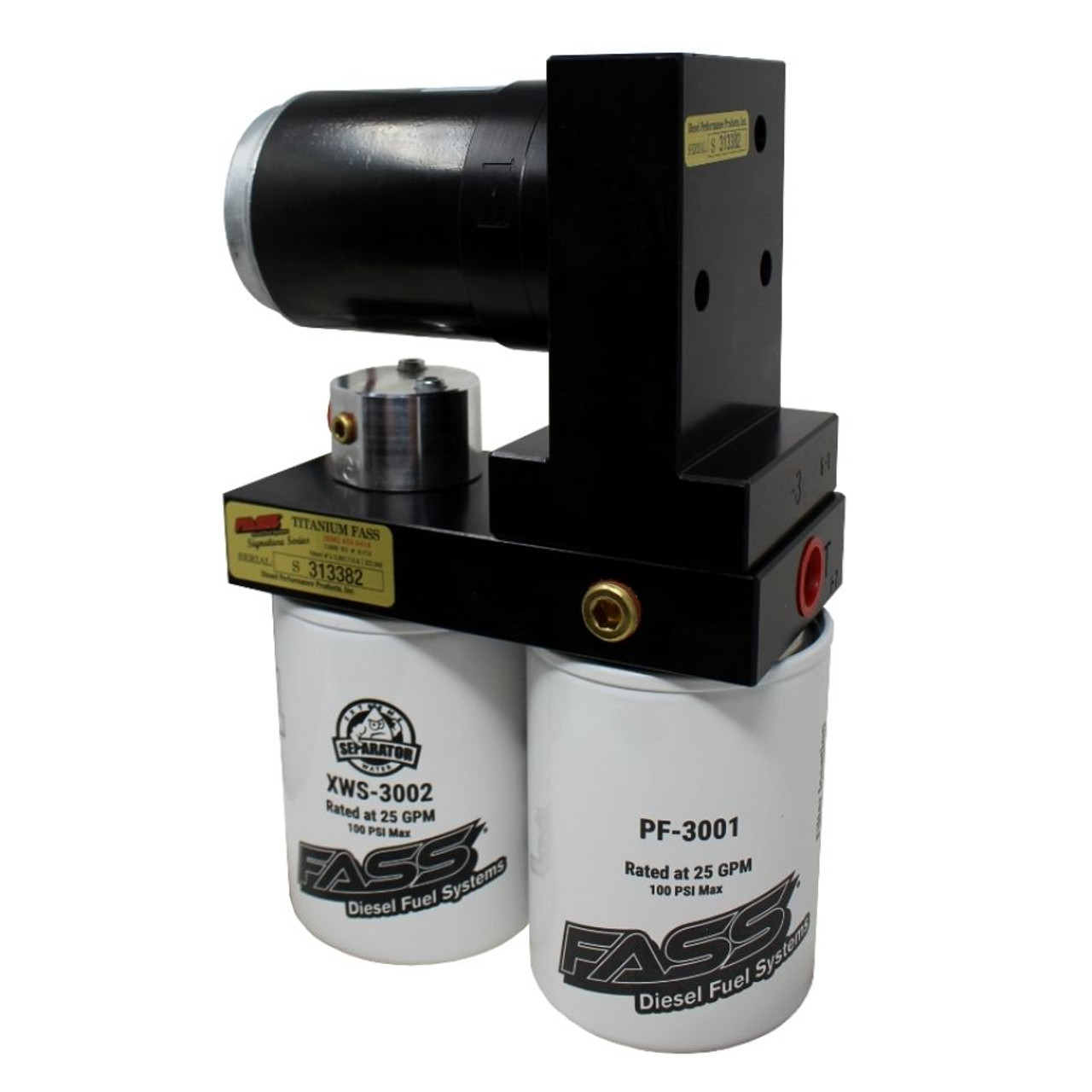

- Titanium Signature Series PLUS pump assembly (220 GPH)
- Model-specific install kit, lines, fittings, harness
- Mounting brackets & hardware
- Current-style filter set (service with PF3001/XWS3002 or XL equivalents)
Notes
- Service filters at recommended intervals; use clean diesel fuel.
- Verify tuning and injection-system health on higher-power applications.
