Product Description

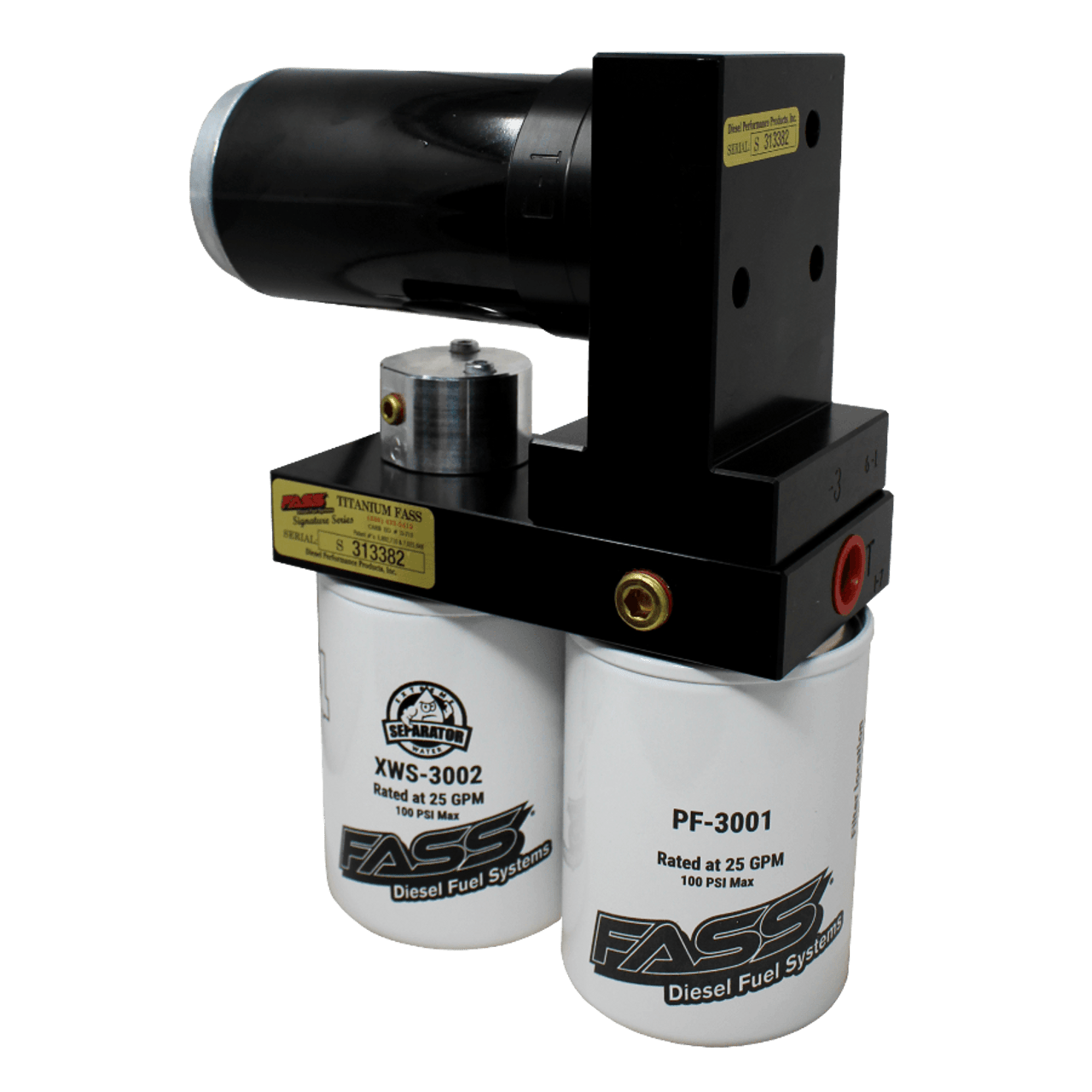

Upgrade your 12-valve Cummins the right way. The FASS TSPD10180F140G Titanium Signature Series Plus delivers a true 140 GPH of ultra-clean, air-free fuel at ~45 PSI to support stock up to 700 HP 5.9L builds. PLUS features include ORB fittings, 6061 black-anodized hardware, and black hose for a tidy, durable install.
Fitment
- 1994–1998 Dodge Ram 2500 / 3500, 5.9L Cummins 12V
- Direct-fit Titanium Signature Series PLUS system (TSPD10180F140G)
- Designed for stock–700 HP applications
Why this kit
- 140 GPH flow with ~45 PSI regulated supply for consistent injector feed
- Air/vapor separation to protect the P-pump and downstream components
- Dual-stage filtration strategy (use with XWS3002 & PF3001 filters)
- ORB fittings + 6061 black-anodized hardware for leak-free durability
Cross-Reference / Recommended FASS Parts (CPP Diesel only)
- Replacement water separator: FASS XWS3002 Extreme Water Separator (2-micron)
- Replacement particulate filter: FASS PF3001 Particulate Filter
- Extended-length water separator: FASS XWS3002XL (2-micron, XL)
- Filter pack (standard length): FASS FLP3000 Fleet Filter Pack (XWS3002 + PF3001)
- Filter pack (XL): FASS FLP3000XL Fleet Filter Pack (XWS3002XL + PF3001XL)
- Cold-weather heater kit: FASS HK1001 Electric Heater (Titanium/Titanium Signature)
- Dual-heater splitter: FASS HKS1001 Heater Splitter
Installation Instructions
Download the current FASS install manuals here: FASS Installation Manuals
FAQs
How much power will this support on my 12-valve?
This PLUS system is engineered for stock up to ~700 HP builds when properly matched with fuel system plumbing and healthy injectors/pump.
Which filters do I run with Titanium Signature Series Plus?
Use the updated two-filter combo: XWS3002 (2-micron, pressure side) and PF3001 (suction side). Do not mix with older FF/FS filters.
Do I need a sump or a “no-drop” kit?
Not required, but many installers add a sump and/or FASS heater for the coldest climates. See the related FASS parts above.
Specifications for Fass TSPD10180F140G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | TSPD10180F140G |
| Engine/Vehicle | 1994–1998 Dodge Ram 2500/3500, 5.9L Cummins 12V |
| Rated Flow / Pressure | 140 GPH / ~45 PSI |
| Supported Power | Stock–~700 HP |
| Filter Pair | XWS3002 (pressure side) + PF3001 (suction side) |
| Fittings / Lines | ORB fittings, 6061 black-anodized hardware, black fuel line |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Shipping | Standard Ground; rates calculated at checkout |
| Prop 65 | WARNING: Cancer & Reproductive Harm — www.P65Warnings.ca.gov |
