Product Description

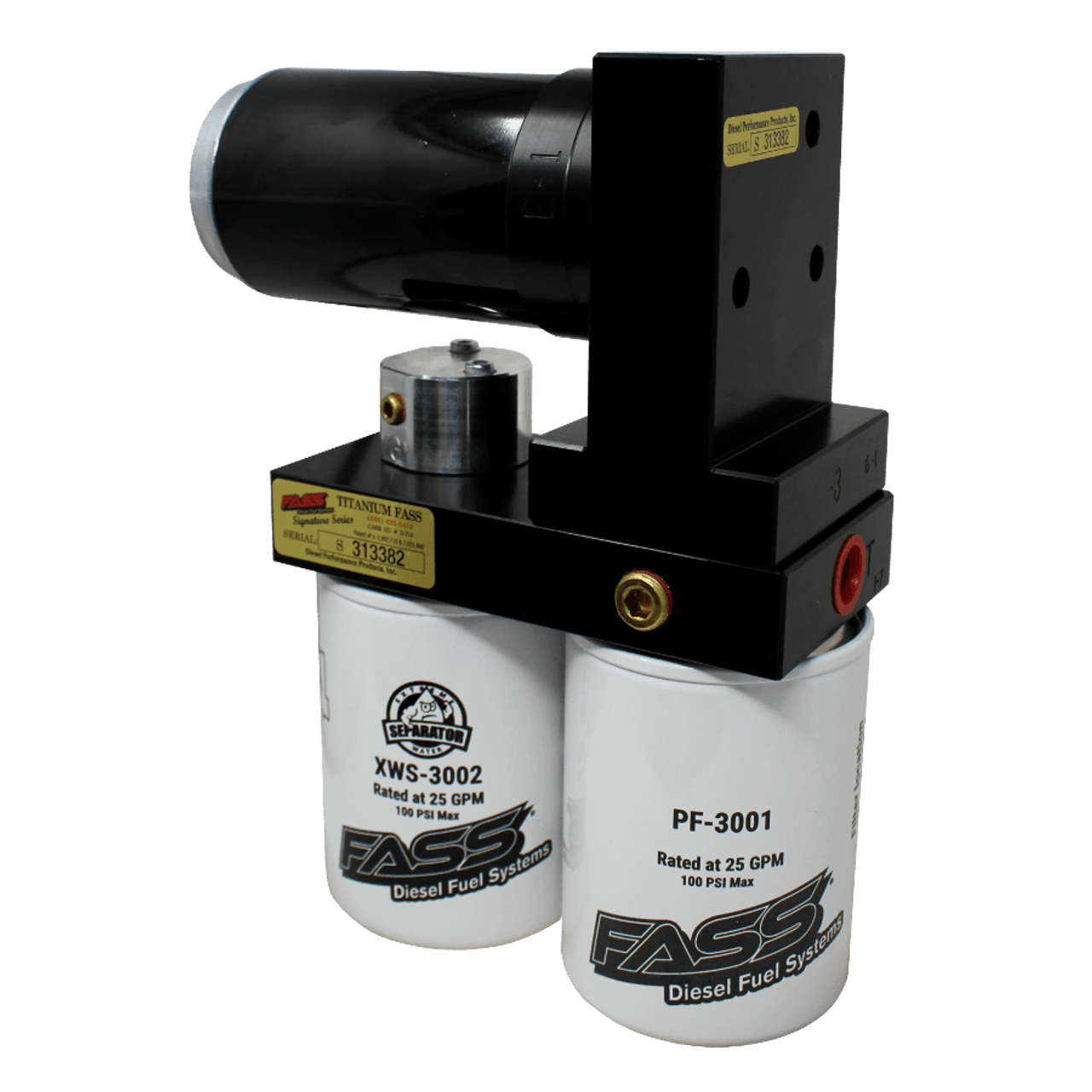

FASS TSPD07250G TITANIUM SIGNATURE SERIES PLUS – 250 GPH delivers the fuel volume and filtration a high-power Cummins needs. The Plus series adds ORB fittings, 6061 black-anodized hardware, and black fuel line for a cleaner, stronger install while FASS Whisper Technology keeps pump noise to a minimum. Rated at 250 GPH and engineered for 1000–1200 HP builds with 16–18 PSI supply pressure, it polishes fuel continuously to protect injectors and the entire high-pressure system.
Fitment
- Vehicles: 2005–2018 & 2021–2024 Dodge/RAM 2500 & 3500 with 5.9L or 6.7L Cummins
- Engine Power: 1000–1200 HP builds
- Flow/Pressure: 250 GPH, 16–18 PSI
- Notes: Uses bed-bolt bracket mounting; cab & chassis may require modifications
Why Choose Titanium Signature Series Plus
- 2-micron absolute filtration and integrated water separation
- Patented air/vapor separation for smoother idle and injector protection
- Performance Radius Cuts (PRC) internal passages for higher, smoother flow
- Mass Flow Return (MFR) continuously polishes return fuel

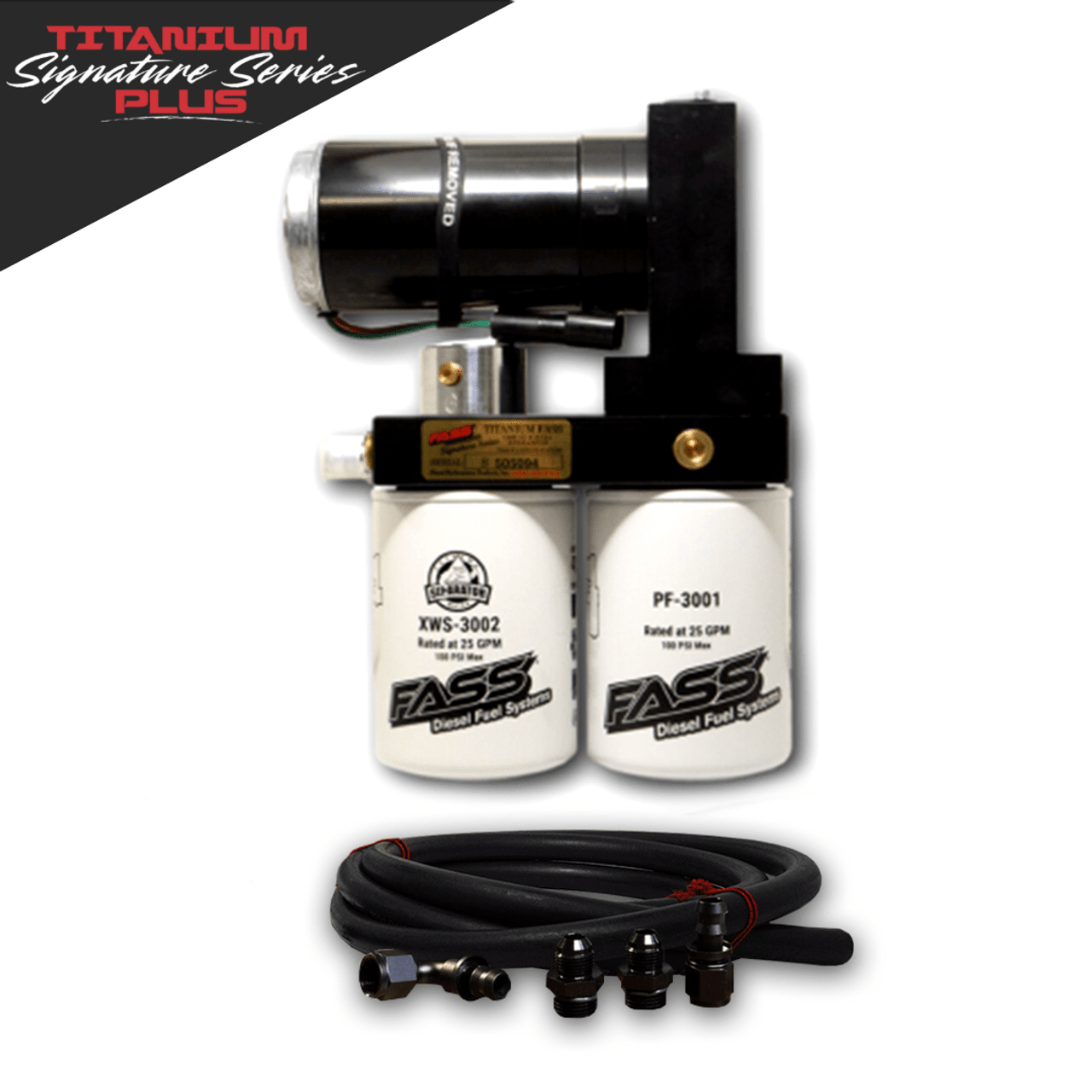

- ORB fittings, black-anodized hardware, and black fuel line for an ultra-clean install
Recommended Cross-Reference / Companion FASS Items (CPP Diesel)
- Replacement Filter Pack (XWS3002 + PF3001): FASS FP3000 or FASS FP3000XL
- Individual Replacement Filters: XWS3002 Extreme Water Separator and PF3001 Particulate Filter
- Extended-Length Filters: XWS3002XL
- Suction Tube / Sump Options: STK1002 5/8" Suction Tube Kit, STK1003 Fuel Module Suction Tube Kit, STK5500B Sump + Tube Upgrade
Installation Instructions
Download the latest Titanium Signature Series Plus installation manuals from FASS.
FAQ
What horsepower range is this system designed for?
This TSPD07250G kit supports roughly 1000–1200 HP Cummins builds with ample headroom for hard-use and competition setups.
Which filters does this system use?
Use the current two-filter strategy: XWS3002 Extreme Water Separator (pressure side) and PF3001 Particulate Filter (suction side). For extended service intervals, choose XWS3002XL/PF3001XL. Do not mix with legacy FF/FS filters.
Is a tank sump or suction tube required?
High-flow builds benefit from a dedicated pickup. We recommend pairing with a FASS STK suction tube or STK5500B sump kit for consistent supply under load.
How loud is the pump?
The Plus series uses FASS Whisper Technology to significantly reduce pump noise while maintaining high flow.
Specifications for Fass TSPD07250G
| Item | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | TSPD07250G |
| Flow / Pressure | 250 GPH / 16–18 PSI |
| Filtration | 2-micron absolute + water separation |
| Vehicle Fitment | 2005–2018 & 2021–2024 RAM 2500/3500, 5.9L/6.7L Cummins |
| UPC | Not specified by manufacturer |
| GTIN (EAN/UPC-14) | Not specified by manufacturer |
| Shipping | Free Shipping (Contiguous U.S.) |
| Package Dimensions (from listing) | Approx. 18.0" L × 14.0" W × 11.5" H |
| Prop 65 | Not specified by manufacturer |
