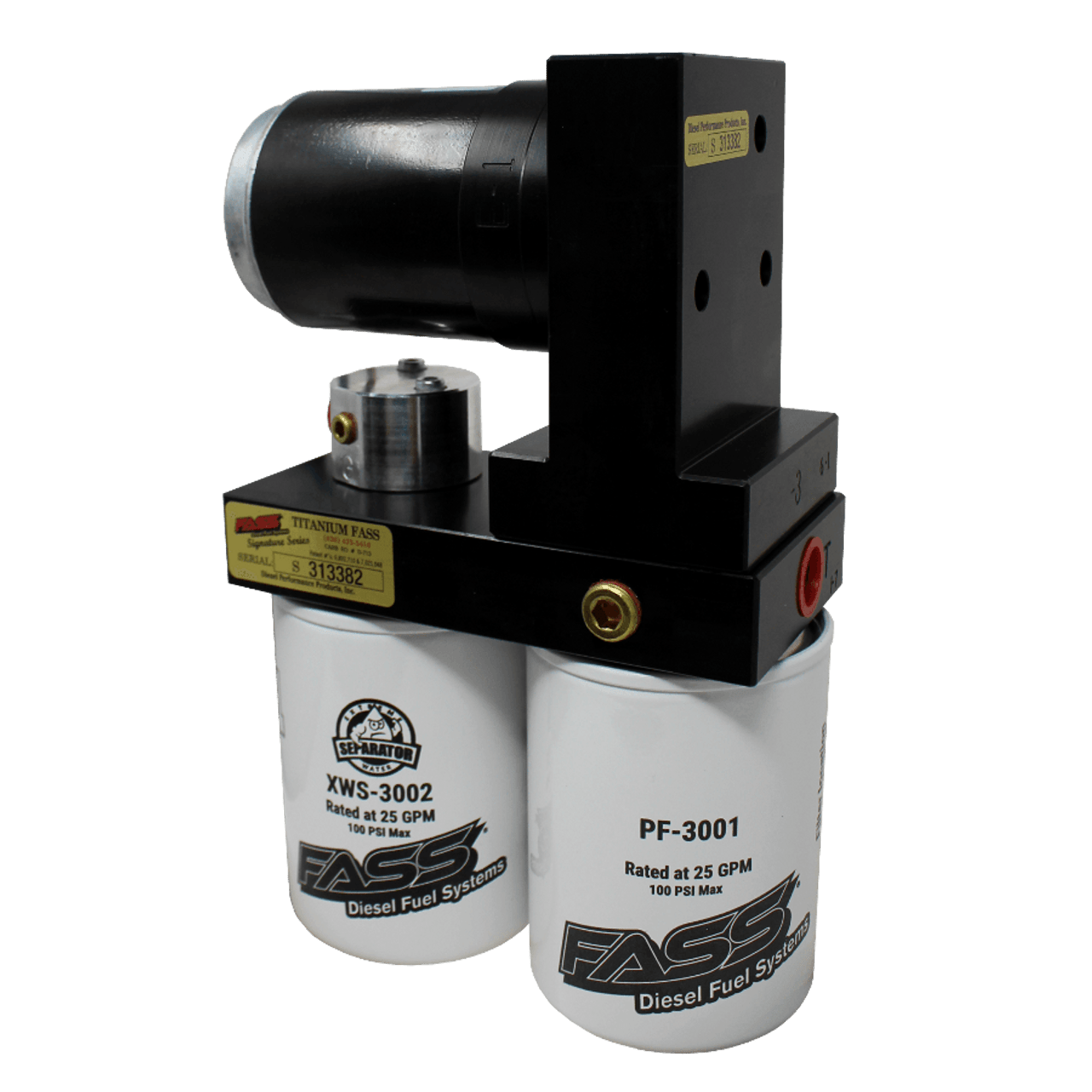

FASS TSPD02100G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 1989–1993 DODGE CUMMINS 5.9L (STOCK–600HP)

Product Description

Upgrade your 12-valve right the first time. The FASS TSPD02100G Titanium Signature Series PLUS delivers a true 100 GPH of ultra-clean, air-free fuel to your 1989–1993 Dodge Cummins 5.9L. It integrates air/vapor separation, a built-in water separator, and 2-micron filtration to protect injectors and stabilize fuel rail pressure for smoother idle, stronger throttle response, and improved cold-weather starts. Backed by FASS’s limited lifetime warranty and a 1,000,000-mile motor rating.

Fitment

• 1989–1993 Dodge Ram D/W 250 & 350 with 5.9L Cummins 12-valve (VE-pump) — Stock to ~600 HP. Note: cab-and-chassis may require minor mods.

What it does

• Air/Vapor separation + 2-micron final filtration to extend injector life
• 100 GPH continuous supply for consistent fueling up to ~600 HP
• ORB fittings, black anodized hardware, black fuel line for a clean install
• Whisper Technology motor for quiet operation; Mass Flow Return (fuel polishing) loop
• Optional dual heater ports and gauge port; bolt-on bracketry

Recommended FASS Filters & Service Parts (CPP Diesel)

• FASS PF3001 Particulate Filter — suction-side particulate protection.
• FASS XWS3002 Extreme Water Separator — 2-micron absolute water separator (standard length).
• FASS PF3001XL Extended Length Particulate Filter — XL service option.
• FASS XWS-3002-XL Extended Length Water Separator — XL service option; pair with PF3001XL.
• FASS FLP3000 Fleet Filter Pack — (3) XWS3002 + (3) PF3001.

Helpful Add-Ons (Cold Weather)

• FASS HK1001 Electric Fuel Heater Kit — plug-in heater for Titanium/Titanium Signature systems.
• FASS HK1002 High Output Heater Disk — automatic high-output heater.
• FASS HKS1001 Dual-Heater Splitter — run two heaters on one system.

Installation Manuals

• Titanium / D02 100GPH Install Manual (TSD/TSPD D02) — recommended for 1989–1993 kits.
• Titanium Signature Series PLUS – Manuals hub.

FAQs

Will 100 GPH support my goals?
Yes. TSPD02100G is rated for stock to ~600 HP on 1989–1993 5.9L Cummins. Step up to TSPD02165G (165 GPH) if you plan 600–900 HP.

What filters should I run?
Use PF3001 (particulate) + XWS3002 (water separator), or the XL pair PF3001XL + XWS-3002-XL for extended service intervals.

How loud is the pump?
The PLUS uses FASS Whisper Technology for very quiet operation while maintaining rated flow.

Is it truly bolt-on?
Yes. The kit includes bolt-on bracketry that reuses factory bed bolts; cab-and-chassis may require minor modification.

Cross-Reference / Alternatives (FASS on CPP Diesel)

• FASS TSD02100G (Titanium Signature Series, 100 GPH) — prior generation alternative.
• FASS TSPD02165G (PLUS, 165 GPH) — for 600–900 HP builds.

Specifications for Fass TSPD02100G
