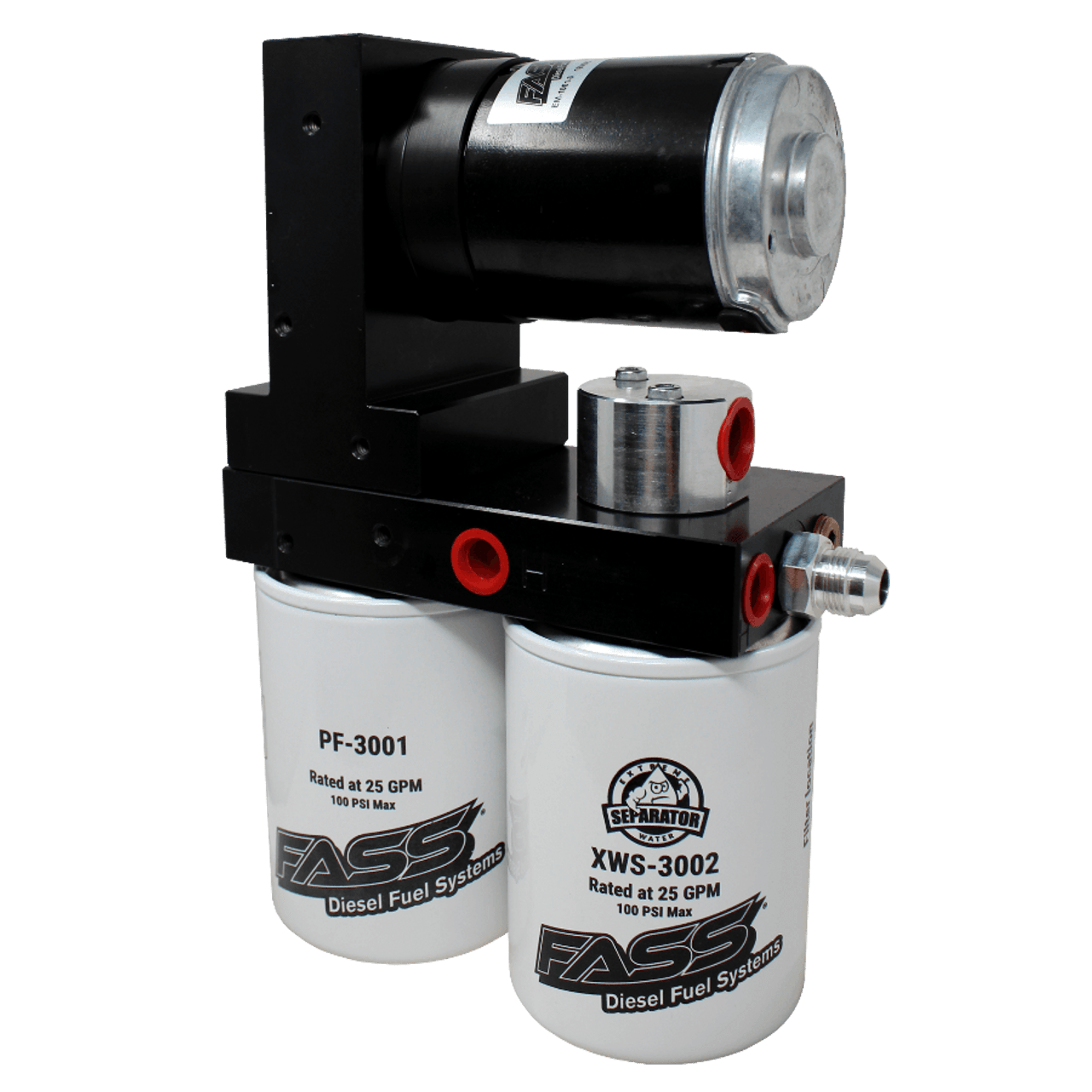

FASS TSF20180F140G TITANIUM SIGNATURE SERIES 140GPH FOR 2023–2024 FORD POWERSTROKE 6.7L

Product Description

THE GO-TO 140GPH LIFT PUMP FOR 2023–2024 6.7L POWER STROKE
The FASS TSF20180F140G Titanium Signature Series delivers a true 140 GPH @ ~65 PSI with industry-leading air/vapor separation and 2-micron filtration to protect late-model high-pressure injection systems. Whisper-quiet motor, Performance Radius Cuts (PRC) for smooth flow, and Mass Flow Return (MFR) “fuel polishing” combine for clean, consistent fuel under load.

Highlights

• Supports builds from stock to ~700 HP
• Integrated air/vapor separation + water removal
• 2-micron absolute filtration strategy (XWS/PF series)
• Whisper-Technology motor; low-noise operation
• Bolt-on bed-bolt brackets for straightforward mounting
• Limited lifetime warranty from FASS

Fitment

• Ford F-250/F-350/F-450 Super Duty, 6.7L Power Stroke (2023–2024)
• Note: Cab-and-chassis applications may require modifications.

Recommended Maintenance & Filter Strategy

Run the current two-filter setup: XWS3002 (or XWS3002XL) Extreme Water Separator on the pressure side + PF3001 (or PF3001XL) Particulate Filter on the suction side. Replace filters at ~30,000 miles under normal service or sooner in harsh conditions.

Cross-Reference / Related FASS Items (CPP Diesel)

• FASS TSF20250F220G – 220GPH Titanium Signature (23–24 6.7L)
• FASS TSF20290F240G – 240GPH Titanium Signature (23–24 6.7L)
• FASS NDTSF20180F140G – No-Drop Kit 140GPH (23–24 6.7L)
• FASS FP3000XL – Extended-Length Filter Pack (XWS3002XL + PF3001XL)
• FASS XWS3002 – Extreme Water Separator (2-micron)
• FASS PF3001 – Particulate Filter
• FASS PFD1001 – 6.7L Power Stroke Filter Delete Kit

Installation Instructions

• FASS Manuals Index: fassride.com/manuals
• Titanium Signature Series (Ford platform) PDF: TSP-F18-180F-140G / 220G / 240G

What’s Included

• Titanium Signature Series 140GPH pump assembly for 23–24 Power Stroke
• Vehicle-specific mounting/brackets & hardware
• Electrical harness, hose/line kit, fittings
• Filter set (per current FASS two-filter strategy)

Why Upgrade?

Modern 6.7L injection components are sensitive to air, vapor, and particulate. The TSF20180F140G dramatically improves fuel quality and supply stability under heavy load/tuning while reducing injector stress—key for longevity and consistent power.

FAQ

Will this support mild tuning and towing?
Yes—140GPH comfortably supports stock to ~700 HP setups, including towing and mild tuning.

Do I need to drop the tank?
Not necessarily. Consider the No-Drop Kit that pairs the system with a single-bolt sump to avoid dropping the tank.

Which filters should I run?
The current FASS strategy is PF3001 (suction side) + XWS3002 (pressure side). Extended-length options (PF3001XL, XWS3002XL) extend service intervals.

Is a factory filter delete recommended?
With a Titanium/Titanium Signature system installed, the OE frame-rail filter can be removed using PFD1001.

Specifications for Fass TSF20180F140G
