Product Description

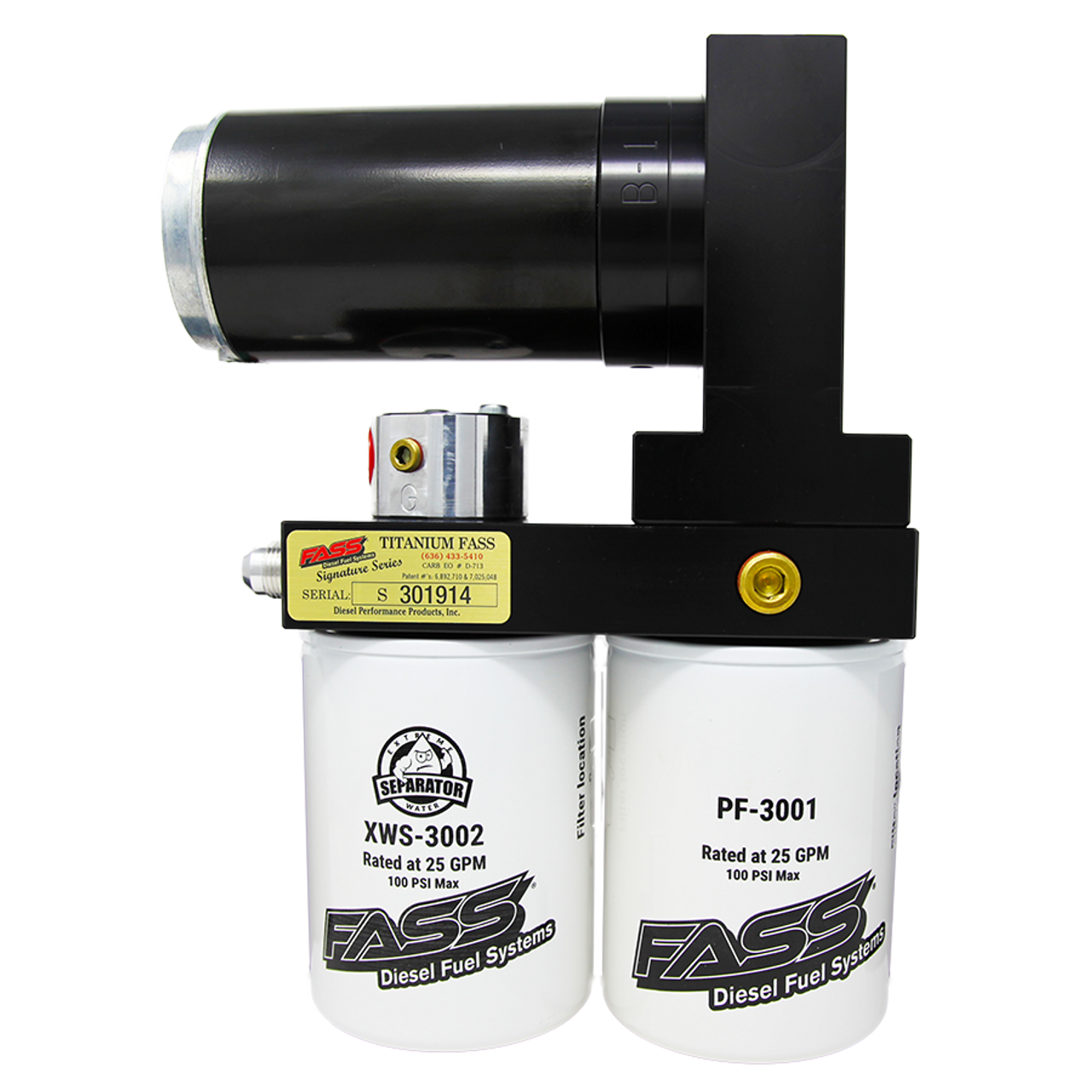

FASS TSF18250F220G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 250F 220GPH @ 65 PSI FOR 2017–2021 FORD POWERSTROKE 6.7L
The FASS TSF18250F220G Titanium Signature Series is a high-flow (220 GPH @ 65 PSI) diesel fuel system engineered for the 2017–2021 Ford 6.7L Powerstroke. It delivers consistent pressure and volume to support 700–900 HP builds while removing air/vapor and particulates to protect your injection system and extend component life.
Fitment
- Vehicle: 2017, 2018, 2019, 2020, 2021 Ford F-250/F-350 Super Duty with 6.7L Powerstroke.
- Horsepower support: 700–900 HP applications.
- Notes: Cab & Chassis may require modifications (see installation manual).
Key Features
- 220 GPH flow @ 65 PSI for tuned and high-output builds.
- Patented air/vapor removal and fuel polishing for cleaner, more stable fuel delivery.
- Advanced filtration strategy when paired with XWS3002 + PF3001 filters.
- Whisper-quiet motor with industry-leading reliability.
- Limited lifetime warranty (per FASS terms).
Installation & Manuals
Download official FASS install instructions and diagrams here: FASS Installation Manuals
Cross-Reference & Related FASS Items (CPP Diesel)
- FASS NDTSF18250F220G No Drop Series — TSF18250F220G fuel system bundled with sump & hardware for no-drop tank installs.
- FASS TSPF18250F220G Titanium Signature Plus Series — upgraded pump package for 2017–2022 6.7L.
- FASS TSF20250F220G (2023–2024) — same flow spec for later 6.7L model years.
- FASS XWS3002 Extreme Water Separator — required water separator element.
- FASS PF3001 Particulate Filter — companion particulate filter.
- FASS XWS3002XL + PF3001XL — extended-length filter combo.
- FASS FP3000 Filter Pack — 2× XWS3002 + 2× PF3001.
- FASS FLP3000 Fleet Pack — 3× XWS3002 + 3× PF3001.
- FASS HK1001 Electric Heater Kit — cold-weather reliability for Titanium/Titanium Signature.
- FASS HKS1001 Dual Heater Splitter — run dual electric heater probes.
FAQ
How much power will TSF18250F220G support?This 220 GPH @ 65 PSI system is rated for roughly 700–900 HP applications on the 6.7L Powerstroke.
Which filters should I run with this system?
Use the updated pair: XWS3002 (pressure side) and PF3001 (suction side). XL versions (XWS3002XL + PF3001XL) are available for longer service intervals.
Is there a no-drop tank option?
Yes, see NDTSF18250F220G which bundles the pump with the sump kit for no-drop installation.
Do Cab & Chassis trucks need anything special?
They may require modifications—review the installation manual before ordering.
Will a heater help in cold weather?
Yes. Add the HK1001 Electric Heater Kit (and HKS1001 splitter if running dual probes).
Specifications for Fass TSF18250F220G
| Brand | FASS Fuel Systems |
| Part Number | TSF18250F220G |
| Vehicle Fitment | 2017–2021 Ford F-250/F-350 Super Duty 6.7L Powerstroke (Cab & Chassis may require modifications) |
| Flow / Pressure | 220 GPH @ 65 PSI |
| Horsepower Support | ~700–900 HP |
| Filter Pair (updated) | XWS3002 (pressure side) + PF3001 (suction side) |
| UPC | 850044106684 |
| GTIN | 00850044106684 |
| Shipping Weight | ~33–35 lb |
| Package Dimensions | ~14.0" × 11.5" × 18.0" |
| Prop 65 | Yes — Cancer and Reproductive Harm |
| Country of Origin | USA (per dealer listings) |
| Warranty | Limited lifetime (per FASS policy) |
