Product Description

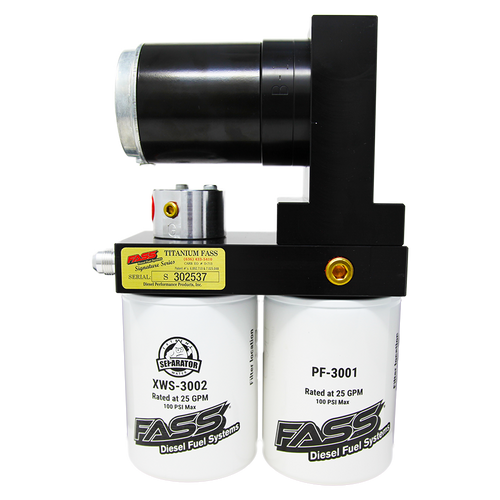

FASS TSF17165G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 165GPH@10PSI FOR 2011–2016 FORD POWERSTROKE 6.7L
The FASS TSF17165G Titanium Signature Series delivers a steady 165 GPH @ 10 PSI to your factory high-pressure system, removing entrained air/vapor and polishing fuel down to 2 microns absolute when paired with the latest FASS filters. A proven upgrade for tuned or towing 6.7L Power Stroke builds (2011–2016), it improves throttle response, injector protection, and cold-weather drivability.
Note: FASS lists TSF17165G as discontinued. For new purchases and future service, consider the updated replacement: TSF17180F140G (140GPH @ 55 PSI).
Fitment
- Vehicle: 2011–2016 Ford F-250 / F-350 / F-450 / F-550 Super Duty with 6.7L Power Stroke diesel.
- System Type: Titanium Signature Series (feeds factory HPFP at ~10 PSI).
- Filters required: Use the current FASS filter set: XWS3002 Extreme Water Separator and PF3001 Particulate Filter.
Installation & Manuals
Download FASS installation instructions and diagrams here: FASS Installation Manuals.
Cross-Reference & Related FASS Items (on CPP Diesel)
- TSF17180F140G — current replacement system for 2011–2016 6.7L (140GPH @ 55 PSI).
- NDTSPF17180F140G No-Drop Series Plus — kit with sump for easier install on 2011–2016 6.7L.
- XWS3002 Extreme Water Separator — required water separator.
- PF3001 Particulate Filter — required particulate filter.
- XWS3002XL and PF3001XL — extended-length filters for longer intervals.
- FP3000 Filter Pack — shop/fleet 2×XWS3002 + 2×PF3001.
- HK1001 Electric Heater Kit — cold-weather assist for Titanium systems.
FAQ
What does 165GPH @ 10 PSI mean for my 6.7L?It continuously supplies the factory high-pressure pump with air-free fuel at ~10 PSI, helping stabilize rail pressure under load and extending injector life.
Which filters should I run on TSF17165G?
Use the current FASS filters: XWS3002 (water separator) and PF3001 (particulate).
Is TSF17165G still available?
FASS has marked TSF17165G as discontinued. We recommend the updated TSF17180F140G for new installs.
Do I need a sump to install?
Not required, but many choose a no-drop kit with sump for easier tank plumbing. See NDTSPF17180F140G.
Will this void my warranty?
FASS offers a limited lifetime warranty when installed per instructions. Vehicle warranty impacts vary; always follow OEM service procedures.
Specifications for Fass TSF17165G
| Brand | FASS Fuel Systems |
| Part Number | TSF17165G |
| Flow / Pressure | 165 GPH @ 10 PSI (feeds factory system) |
| Engine Compatibility | Ford Power Stroke 6.7L (2011–2016) |
| Filter Set | XWS3002 (water) + PF3001 (particulate) |
| UPC | 850044106646 |
| GTIN | 0850044106646 |
| Country of Origin | USA |
| Shipping Weight | ~25 lb |
| Package Dimensions | ~20 × 16 × 13.5 in |
| Shipping Method | Ground |
| Prop 65 | Yes — Cancer and Reproductive Harm |
