Product Description

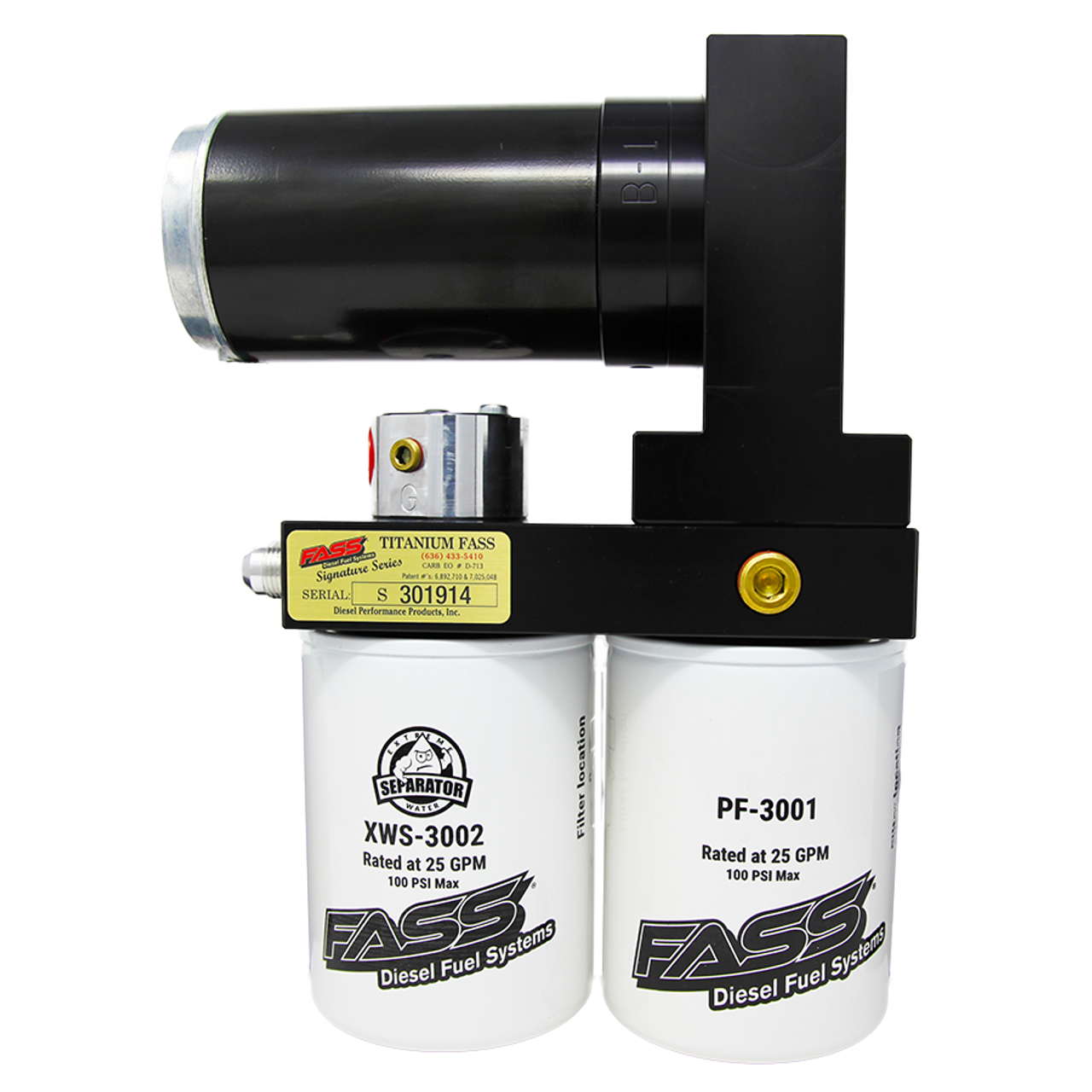

FASS TSF16290G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 290GPH FOR 2008–2010 FORD POWERSTROKE 6.4L
Built for serious power on the 6.4L Powerstroke, the FASS TSF16290G delivers 290 GPH @ ~10 PSI with advanced fuel air separation, water removal, and 2-micron filtration to protect injectors and high-pressure components. Ideal for 1200–1500 HP builds while remaining whisper-quiet thanks to FASS Whisper Technology.
Fitment
- Ford Powerstroke 6.4L: 2008–2010 (F-250/F-350/F-450).
- Complete replacement system with bulkhead/suction tube kit; designed to bolt to factory bed hardware.
Key Features
- 290 Gallons Per Hour flow; preset ~10 PSI base pressure.
- 2-micron filtration, water separation, and continuous air/vapor removal.
- FASS Whisper Technology for ultra-quiet operation.
- Performance Radius Cuts (PRC) for smoother internal fuel flow.
- 6061-T6 billet aluminum bulkhead, PTFE pickup tube, lifetime limited warranty.
Installation & Manuals
Download current install guides and diagrams here: FASS Installation Manuals.
Cross-Reference & Related FASS Items (CPP Diesel)
- FASS TSF16100G — 100GPH system for stock–600 HP.
- FASS TSF16165G — 165GPH system for 600–1000 HP.
- FASS TSF16250G — 250GPH system for 900–1200 HP.
- FASS XWS3002 — Extreme Water Separator (standard length).
- FASS PF3001 — Particulate Filter (required companion filter).
- FASS TSPF16290G — Titanium Signature Plus 290GPH variant.
- FASS NDTSF16290G — No-Drop Series kit with sump.
FAQ
How much horsepower will TSF16290G support?It’s designed for high-output builds in the 1200–1500 HP range when properly matched with fueling upgrades.
Which filters should I run with this system?
Use the current two-filter combo: XWS3002 (water separator) and PF3001 (particulate filter). Replace on schedule or sooner in severe conditions.
Is it loud?
No—FASS Whisper Technology keeps operating noise extremely low without reducing flow.
What’s included?
Titanium Signature Series pump/filters, plumbing, wiring, and the bulkhead & suction tube kit for a clean, no-weld install.
Specifications for Fass TSF16290G
| Brand | FASS Fuel Systems |
| Part Number | TSF16290G |
| Flow / Pressure | 290 GPH, ~10 PSI base |
| Supported Power | 1200–1500 HP (properly matched) |
| Vehicle Fitment | 2008–2010 Ford Powerstroke 6.4L (F-250/F-350/F-450) |
| UPC | 850044106622 |
| GTIN | 0850044106622 |
| Shipping Method | Free Shipping (Standard Ground) |
| Package Dimensions | Approx. 14.00 in × 11.50 in × 18.00 in |
| Shipping Weight | ~31 lb (typical listing) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
| Warranty | Limited Lifetime (manufacturer) |
