Product Description

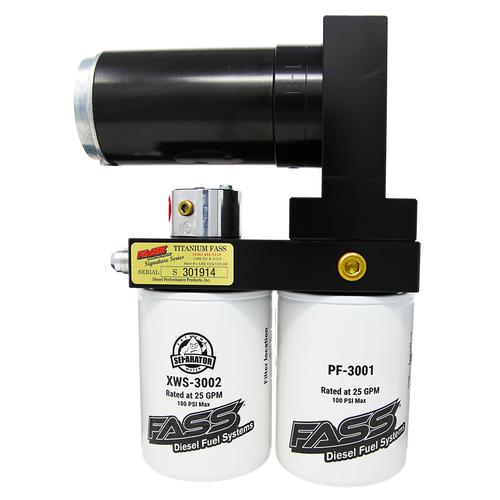

FASS TSF15250F220G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 250F 220GPH FOR 2000–2005 FORD EXCURSIONS 6.0L & 7.3L
The FASS TSF15250F220G is a high-flow 220 GPH system preset to 45–50 PSI to feed built 2000–2005 Excursions with 6.0L or 7.3L Powerstroke engines. It combines proven air/vapor separation with 2-micron absolute filtration, FASS Whisper Technology for quiet operation, and bolt-on bracketry for a clean install. Typical support is ~900–1200 HP when the rest of the fuel system and tuning are matched.
Fitment & System Notes
- Vehicle: 2000–2005 Ford Excursion, 6.0L & 7.3L Powerstroke.
- Output: 220 GPH flow, preset 45–50 PSI fuel pressure.
- Filter strategy (current XWS/PF pair): Run XWS3002 Extreme Water Separator on the pressure side and PF3001 Particulate Filter on the suction side.
- Includes: Bulkhead & 5/8" Suction Tube kit and bolt-on brackets for streamlined install.
Installation & Manuals
See the official FASS manuals: FASS Installation Manuals and the direct PDF for Excursion systems: TS-F15-180F/220G/240G Installation Manual (PDF).
Cross-Reference & Related FASS Items (CPP Diesel)
- Other Excursion Titanium Signature systems: TSF15180F140G (140GPH), TSF15290F240G (240GPH).
- PLUS & No-Drop options: TSPF15250F220G (PLUS), NDTSPF15250F220G (No-Drop PLUS).
- Filters & service parts: XWS3002, PF3001, XWS3002XL, PF3001XL, FP3000 Filter Pack, FLP3000 Fleet Pack.
FAQ
What horsepower range does TSF15250F220G support?Typically ~900–1200 HP depending on fueling and tuning.
Which filters should I run?
Use the current pair: XWS3002 (pressure side) and PF3001 (suction side). For extended-length service, use XWS3002XL and PF3001XL.
Does this kit include a suction tube?
Yes—bulkhead & 5/8" suction tube kit and bolt-on brackets are included for a streamlined install.
Is there a dedicated install manual for Excursions?
Yes—see the linked TS-F15-180F/220G/240G PDF under Installation & Manuals above.
Specifications for Fass TSF15250F220G
| Brand | FASS Fuel Systems |
| Part Number | TSF15250F220G |
| Flow / Pressure | 220 GPH @ 45–50 PSI (preset) |
| Engine / Years | Ford Excursion 6.0L & 7.3L (2000–2005) |
| Horsepower Support | ~900–1200 HP (application-dependent) |
| Filter Pair | XWS3002 (pressure) + PF3001 (suction) |
| UPC | 850044106578 |
| GTIN | 0850044106578 |
| Package Dimensions | 14.00" W × 11.50" H × 18.00" D |
| Shipping | Free Shipping (Continental U.S.) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
