Product Description

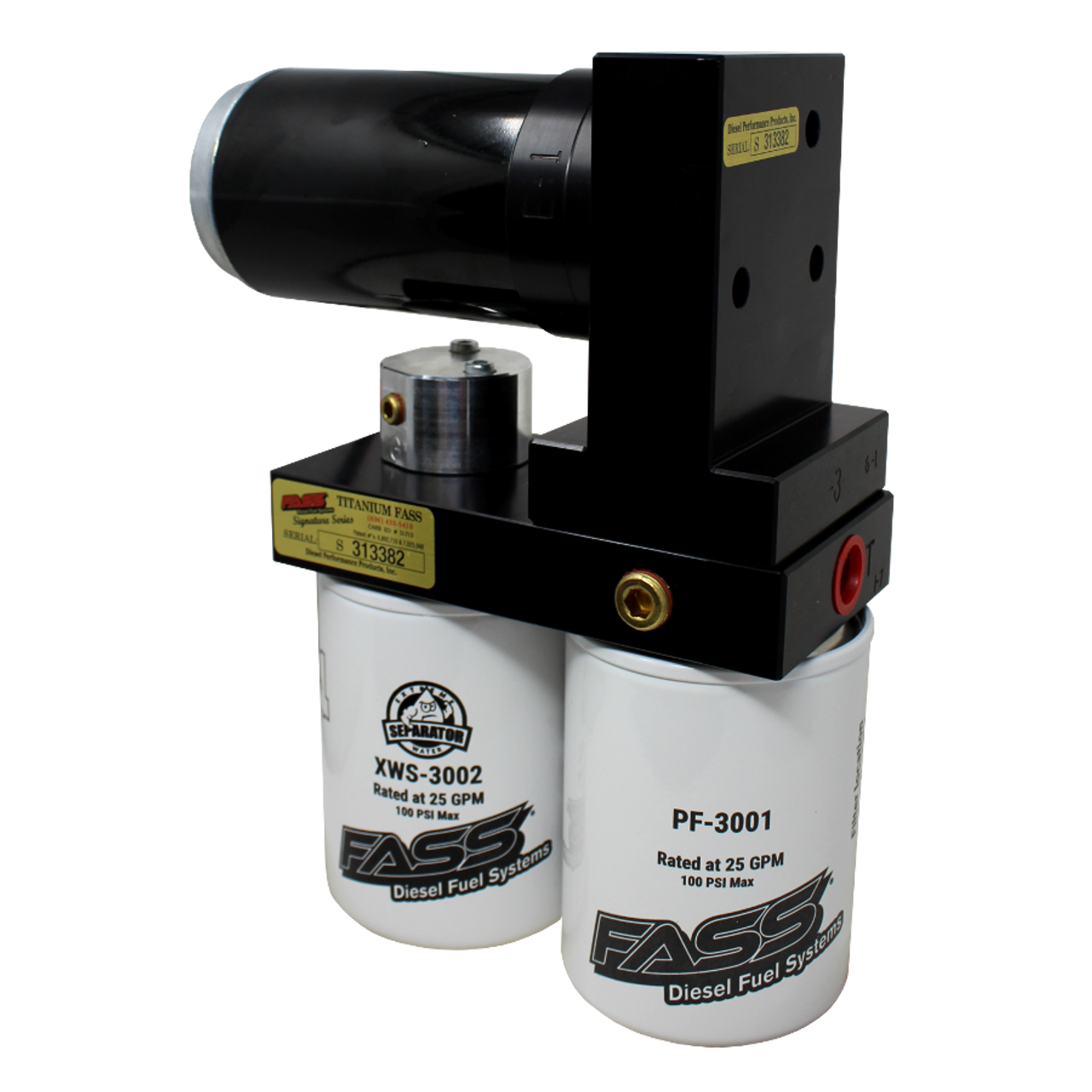

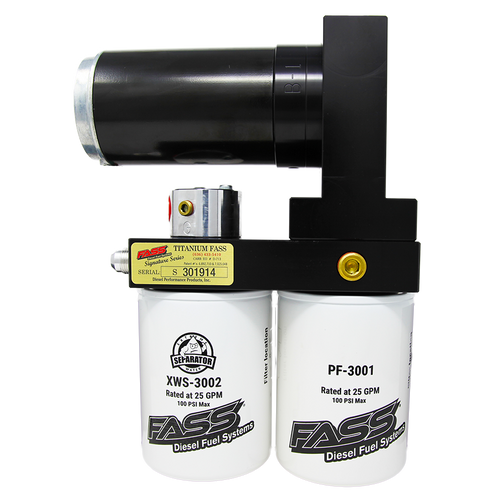

FASS TSF14250F220G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 250F 220GPH FOR 1999–2007 FORD POWERSTROKE 7.3L & 6.0L
The FASS TSF14250F220G delivers a high-pressure 220 GPH supply at ~60–65 PSI for built 7.3L and 6.0L Powerstroke platforms (1999–2007). It combines efficient air/vapor separation with 2-micron absolute filtration to protect injectors, with quiet operation via FASS Whisper Technology and stable fuel pressure through Mass Flow Return (MFR) and Performance Radius Cuts (PRC). Ideal for ~600–900 HP applications.
Fitment & System Notes
- Vehicle: 1999–2007 Ford Powerstroke 7.3L / 6.0L (F-250 / F-350 / F-450).
- Flow / Pressure: 220 GPH @ ~60–65 PSI.
- Power support: ~600–900 HP (application-dependent).
- Filter strategy (current): Run XWS3002 Extreme Water Separator on the pressure side and PF3001 Particulate Filter on the suction side. XL options also available.
- Includes: Complete TSF system with bracketry and plumbing; see manual for full parts list.
Installation & Manuals
Official FASS manuals portal: FASS Installation Manuals. Direct PDF for this model family: TS-F14-250F-220G / TS-F14-290F-240G Installation Manual (PDF).
Cross-Reference & Related FASS Items (CPP Diesel)
- Other 1999–2007 Titanium Signature systems: TSF14180F140G (140GPH), TSF14290F240G (240GPH).
- PLUS & No-Drop options: TSPF14250F220G (PLUS), NDTSF14250F220G (No-Drop), NDTSPF14250F220G (No-Drop PLUS).
- Filters & service parts: XWS3002, PF3001, XWS3002XL, PF3001XL.
FAQ
What pressure does this 220GPH system run?The TSF14250F220G is designed for approximately 60–65 PSI supply pressure on 7.3L/6.0L platforms.
What horsepower range will it support?
Typically suitable for ~600–900 HP, depending on fueling and tuning.
Which filters do I need?
Use the current pair: XWS3002 (pressure side) and PF3001 (suction side). Extended-length options pair XWS3002XL with PF3001XL.
Is there a simpler install option without dropping the tank?
Yes. Consider the NDTSF14250F220G No-Drop kit or NDTSPF14250F220G No-Drop PLUS.
Specifications for Fass TSF14250F220G
| Brand | FASS Fuel Systems |
| Part Number | TSF14250F220G |
| Flow / Pressure | 220 GPH @ ~60–65 PSI |
| Engine / Years | Ford Powerstroke 7.3L & 6.0L (1999–2007) |
| Horsepower Support | ~600–900 HP (application-dependent) |
| Filter Pair | XWS3002 (pressure side) + PF3001 (suction side) |
| UPC | 850044106547 |
| GTIN | 0850044106547 |
| Shipping Weight | ~25–32 lb (typical) |
| Package Dimensions | ~13.5" W × 11.4" H × 17.9" D |
| Shipping | Free Shipping (Continental U.S.) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
