Product Description

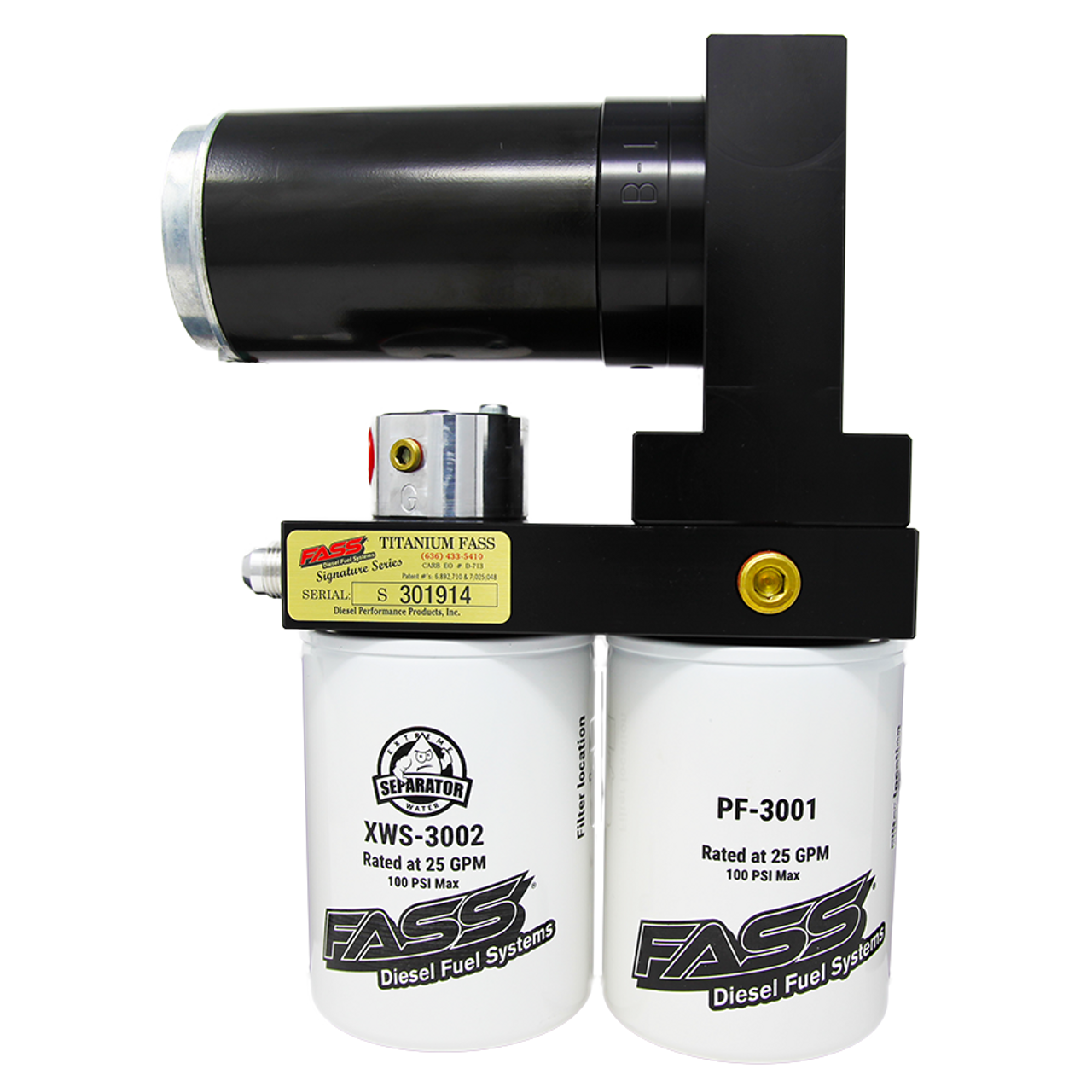

FASS TSC13290F240G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 290F 240GPH FOR 2017–2019 GM 6.6L DURAMAX
Super-Extreme (requires aftermarket tuning) — The FASS TSC13290F240G is a complete replacement Titanium Signature Series system for the 2017–2019 GM 6.6L Duramax L5P. It delivers 240 GPH at ~70–75 PSI, removes air/vapor and water, and filters to 2-micron absolute to protect injectors. FASS Whisper Technology keeps operation impressively quiet.
Fitment & System Notes
- Vehicle: 2017–2019 Chevrolet Silverado / GMC Sierra 2500HD & 3500HD, 6.6L Duramax L5P.
- Flow / Pressure: 240 GPH, preset ~70–75 PSI.
- Power support: ~900–1200 HP applications (calibration/tuning dependent).
- Tuning required: L5P trucks need aftermarket tuning capable of suppressing specific DTCs after install.
- Current filter strategy: Run XWS3002 Extreme Water Separator on the pressure side and PF3001 Particulate Filter on the suction side. Extended-length options: XWS3002XL + PF3001XL.
Installation & Manuals
Official manuals are available here: FASS Installation Manuals. Direct PDF for C13 (L5P 2017–2019) systems: TS-C13-140G/220G/240G Installation Manual (PDF).
Cross-Reference & Related FASS Items (CPP Diesel)
- Other L5P 2017–2019 Titanium Signature options: TSC13180F140G (140GPH), TSC13250F220G (220GPH).
- PLUS & No-Drop kits: TSPC13290F240G (PLUS), NDTSPC13290F240G (No-Drop PLUS).
- Filters & service packs: XWS3002, PF3001, XWS3002XL, PF3001XL, FLP3000 Fleet Pack (standard), FLP3000XL Fleet Pack (XL).
FAQ
Do I need tuning for this 2017–2019 L5P system?Yes. This Super-Extreme (240GPH) kit is intended for L5P trucks with aftermarket tuning capable of suppressing specific DTCs after installation.
What filters should I run with this pump?
Use the current pair: XWS3002 on the pressure side and PF3001 on the suction side. For extended intervals, use XWS3002XL and PF3001XL.
How loud is the pump?
The Titanium Signature Series uses FASS Whisper Technology for very low noise without sacrificing flow.
What horsepower range does 240GPH support?
Generally suitable for ~900–1200 HP when the fuel system and tuning are matched to the build.
Specifications for Fass TSC13290F240G
| Brand | FASS Fuel Systems |
| Part Number | TSC13290F240G |
| Flow / Pressure | 240 GPH @ ~70–75 PSI (preset) |
| Engine / Years | GM Duramax L5P 6.6L (2017–2019) |
| Horsepower Support | ~900–1200 HP (application dependent) |
| Filter Pair | XWS3002 (pressure) + PF3001 (suction) |
| UPC | 850044106332 |
| GTIN | 0850044106332 |
| Shipping Weight | ~30.6 lb |
| Package Dimensions | ~14.0" W × 11.5" H × 18.0" D |
| Prop 65 | Yes — Cancer and Reproductive Harm |
