Product Description

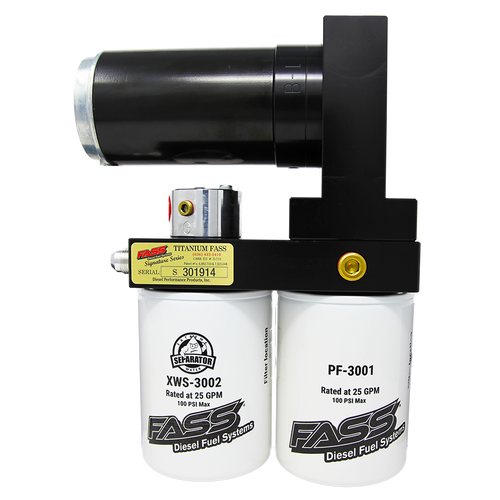

FASS TSC13250F220G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 250F 220GPH FOR 2017–2019 GM 6.6L DURAMAX
Built specifically for the 2017–2019 GM 6.6L Duramax L5P, the FASS TSC13250F220G delivers 250F / 220 GPH at 70–75 PSI with advanced air/vapor separation and 2-micron absolute filtration. Featuring FASS Whisper Technology for quiet operation, Mass Flow Return (MFR) for consistent pressure, and Performance Radius Cuts (PRC) for improved flow, this system supports ~500–900 HP builds.
Fitment & System Notes
- Vehicle: 2017–2019 Chevrolet Silverado / GMC Sierra 2500HD–3500HD, 6.6L Duramax L5P.
- Output: 220 GPH flow, 70–75 PSI fuel pressure (preset).
- Horsepower range: ~500–900 HP (application dependent).
- Tuning required: L5P applications require aftermarket tuning to avoid MIL after installation.
- Filter strategy (current): Run XWS3002 Extreme Water Separator on the pressure side and PF3001 Particulate Filter on the suction side.
Installation & Manuals
See the official FASS manuals: FASS Installation Manuals — direct PDF for this platform: TS-C13-180F-140G / TS-C13-250F-220G / TS-C13-290F-240G (PDF).
Cross-Reference & Related FASS Items (CPP Diesel)
- Other 2017–2019 L5P Titanium Signature systems: TSC13180F140G (140 GPH), TSC13290F240G (240 GPH).
- PLUS & No-Drop variants: TSPC13250F220G (PLUS), NDTS C13250F220G (No-Drop), NDTSPC13250F220G (No-Drop PLUS).
- Filters & service parts: XWS3002, PF3001, XWS3002XL, PF3001XL.
- Popular accessory: STK1002 Suction Tube Kit.
FAQ
Does this kit require tuning on the L5P?Yes. 2017–2019 L5P trucks require aftermarket tuning capable of deleting certain diagnostic codes; otherwise a MIL will appear after install.
What horsepower range is 220 GPH intended for?
Generally suited for ~500–900 HP builds when the rest of the fuel system and tuning match the demand.
Which filters should I run?
Use the current pair: XWS3002 (pressure side) and PF3001 (suction side). For extended service, pair XWS3002XL with PF3001XL.
What comes in the box?
Complete TSC system with pump/filters, bracketry, plumbing, wiring, and hardware. See the install manual for the full parts list.
Specifications for Fass TSC13250F220G
| Brand | FASS Fuel Systems |
| Part Number | TSC13250F220G |
| Flow / Pressure | 250F / 220 GPH @ 70–75 PSI (preset) |
| Engine / Years | GM/Chevy 6.6L Duramax L5P (2017–2019) |
| Horsepower Support | ~500–900 HP (application-dependent) |
| Filter Pair | XWS3002 (pressure side) + PF3001 (suction side) |
| UPC | 850044106325 |
| GTIN | 0850044106325 |
| Package Dimensions | 18.00" W × 14.00" H × 11.50" D |
| Shipping | Free Shipping (Continental U.S.) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
| Supersessions | Supersedes TSC13220G (prev. TS C13 220G) |
