Product Description
FASS NDTSPC15290F240G No-Drop Series Plus Fuel System for 2020-2023 Silverado/Sierra Duramax 6.6L (900-1200HP)
The FASS NDTSPC15290F240G No-Drop Series Plus Fuel System is the ultimate high-performance fuel delivery upgrade for 2020-2023 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks equipped with the 6.6L Duramax diesel engine. Designed to support engines producing 900-1200 horsepower, this complete kit combines the proven Titanium Signature Series Plus Fuel System with the FASS Fuel Sump Kit, providing maximum fuel flow while dramatically simplifying installation.
Unlike traditional lift pump installations that require removing the fuel tank, the No-Drop Series Plus Kit utilizes the included Fuel Sump Kit to eliminate unnecessary labor while delivering exceptional fuel supply to your high-performance Duramax. Featuring ORB (O-Ring Boss) fittings, black anodized 6061 aluminum fittings, and premium black fuel line, this system provides both outstanding performance and a clean, professional installation.
The Titanium Signature Series Plus continuously removes entrained air and vapor, filters contaminants down to an absolute 2 microns, removes over 99% of water, and increases fuel lubricity by at least 10 percent. These improvements help extend injector and fuel system life while providing consistent fuel pressure for demanding towing, racing, and high-horsepower applications.
Features
- Complete FASS No-Drop Series Plus Fuel System
- Designed for 2020-2023 6.6L Duramax diesel engines
- Supports approximately 900-1200 horsepower applications
- Includes Titanium Signature Series Plus Fuel System
- Includes FASS Fuel Sump Kit for simplified installation
- Eliminates the need to remove the fuel tank during installation
- ORB (O-Ring Boss) fittings for leak-resistant connections
- 6061 black anodized aluminum fittings
- Premium black fuel line for a clean installation
- Removes over 99% of water from diesel fuel
- Filters contaminants down to 2 Microns Absolute
- Eliminates entrained air and vapor from fuel
- Increases fuel lubricity by at least 10%
- Can increase injector life up to three times
- Provides significantly greater fuel flow than the factory system
- Operating fuel pressure of approximately 70-75 PSI
- Compatible with optional FASS Electric Fuel Heater Kits
Fitment
- 2020 Chevrolet Silverado 2500HD 6.6L Duramax
- 2020 Chevrolet Silverado 3500HD 6.6L Duramax
- 2021 Chevrolet Silverado 2500HD 6.6L Duramax
- 2021 Chevrolet Silverado 3500HD 6.6L Duramax
- 2022 Chevrolet Silverado 2500HD 6.6L Duramax
- 2022 Chevrolet Silverado 3500HD 6.6L Duramax
- 2023 Chevrolet Silverado 2500HD 6.6L Duramax
- 2023 Chevrolet Silverado 3500HD 6.6L Duramax
- 2020 GMC Sierra 2500HD 6.6L Duramax
- 2020 GMC Sierra 3500HD 6.6L Duramax
- 2021 GMC Sierra 2500HD 6.6L Duramax
- 2021 GMC Sierra 3500HD 6.6L Duramax
- 2022 GMC Sierra 2500HD 6.6L Duramax
- 2022 GMC Sierra 3500HD 6.6L Duramax
- 2023 GMC Sierra 2500HD 6.6L Duramax
- 2023 GMC Sierra 3500HD 6.6L Duramax
Note: Designed for high-performance Duramax applications producing approximately 900-1200 horsepower. Verify all fuel system modifications and supporting components before installation.

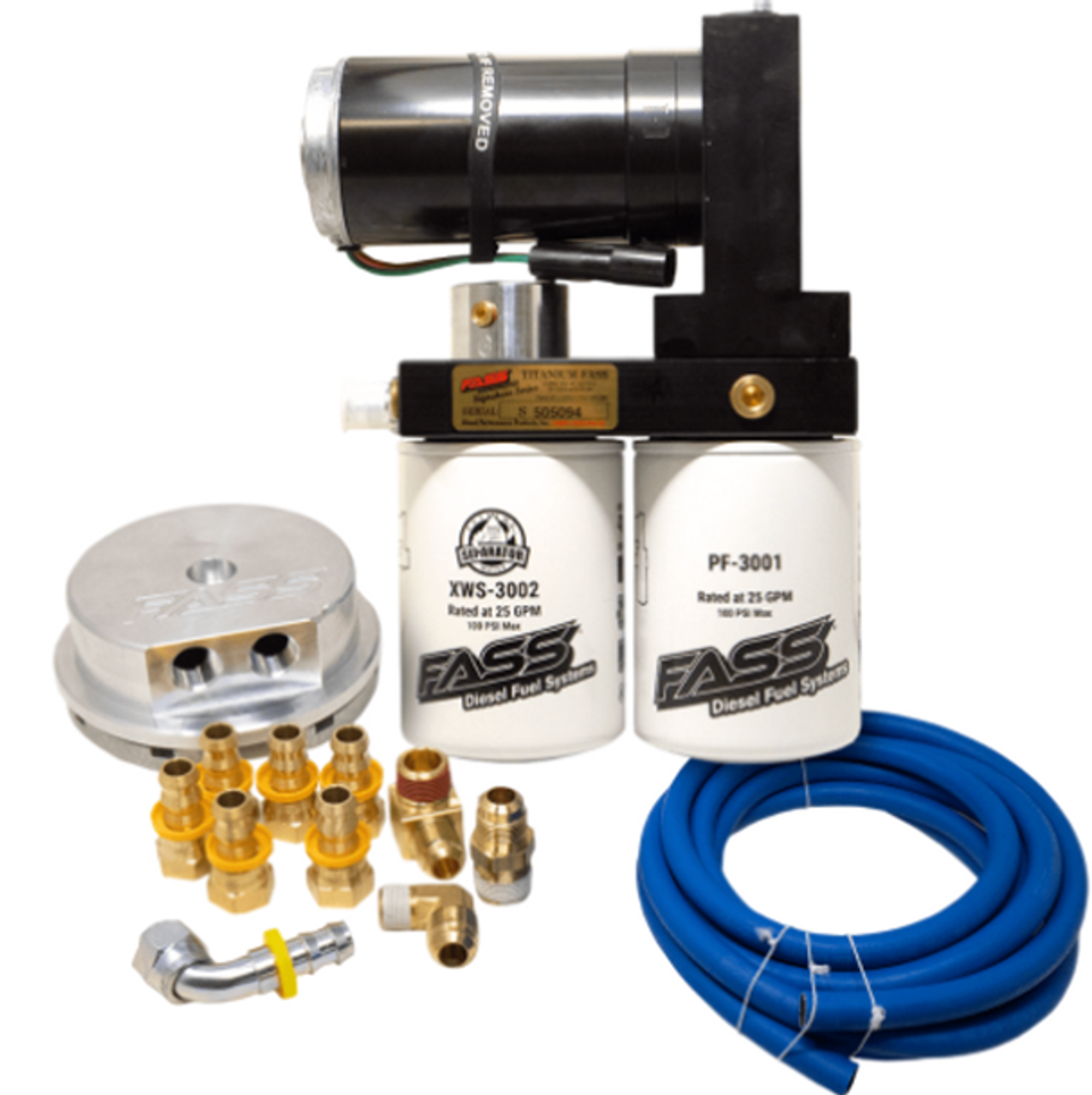

What's Included
- FASS Titanium Signature Series Plus Fuel System (TSPC15290F240G)
- FASS Fuel Sump Kit (SK5501)
- Black Fuel Line
- ORB Fuel Fittings
- 6061 Black Anodized Aluminum Fittings
- Installation Hardware
Specifications
- Manufacturer: FASS Fuel Systems
- Part Number: NDTSPC15290F240G
- Fuel System: Titanium Signature Series Plus
- Application: No-Drop Series Plus Fuel System
- Engine Compatibility: 6.6L Duramax Diesel
- Vehicle Compatibility: 2020-2023 Chevrolet Silverado & GMC Sierra 2500HD/3500HD
- Horsepower Rating: 900-1200 HP
- Operating Pressure: 70-75 PSI
- Filtration Rating: 2 Microns Absolute
- Water Separation: Removes Over 99% of Water
- Fuel Lubricity Improvement: Minimum 10%
- Injector Life: Can Increase Injector Life Up To 3 Times
- Fittings: ORB (O-Ring Boss)
- Fitting Material: Black Anodized 6061 Aluminum
- Fuel Line: Black Performance Fuel Hose
- Fuel Sump Included: Yes (SK5501)
