Product Description
Skip the tank drop and speed up your install. The FASS NDTSF18290F240G No Drop Series bundles the high-flow TSF18290F240G (240GPH @ ~65 PSI) with the SK5501 fuel sump so you can add a Titanium Signature Series system to your 2017–2022 6.7L Powerstroke without removing the tank. Expect quieter operation, superior air/vapor removal, and 2-micron absolute filtration to help protect injectors and pumps.

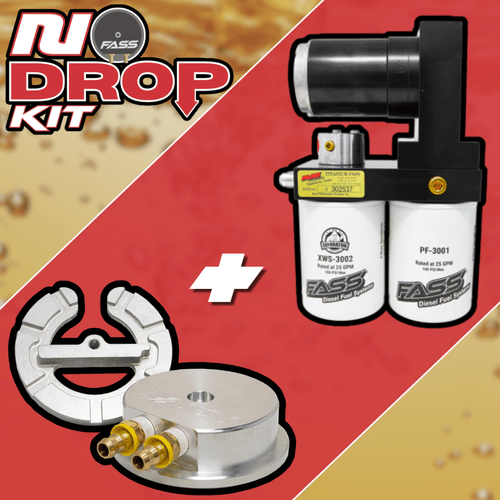

- Complete No-Drop kit: TSF18290F240G Fuel System + SK5501 sump
- Supports ~900–1200 HP when properly fueled and tuned
- Air/vapor separation and water separation to stabilize rail pressure
- 2-micron absolute fuel polishing
- FASS Whisper Technology, PRC housing, and MFR return for consistent supply
- Free Shipping
Fitment
2017–2022 Ford F-250 / F-350 / F-450 6.7L Powerstroke pickup. Note: Some cab & chassis applications may require modifications—see install manual.
Cross-Reference / Related FASS Items (CPP Diesel only)
- NDTSF18250F220G — No-Drop 220GPH (700–900HP)
- NDTSF18180F140G — No-Drop 140GPH (Stock–700HP)
- NDTSPF18290F240G — No-Drop PLUS (240GPH)
- TSPF18290F240G — Signature Series PLUS pump only (240GPH)
- Service filters: XWS3002, PF3001, XWS3002XL, PF3001XL, FLP3000, FLP3000XL
Installation Instructions
Download the latest instructions at the FASS manuals hub: FASS Installation Manuals.
FAQs
What’s included in NDTSF18290F240G?
One TSF18290F240G Titanium Signature Series fuel system and one SK5501 FASS fuel sump—everything you need for a straightforward no-drop install.
How much power and pressure does it support?
The TSF18290F240G pump is rated at ~240GPH at ~65 PSI and is intended for ~900–1200HP builds.
Do I need to remove the tank?
No—the included SK5501 sump allows a no-drop installation on 2017–2022 pickups. Cab & chassis may require extra steps; check the manual.
Which replacement filters should I keep?
Use the XWS3002 water separator with the PF3001. For extended service, use XWS3002XL and PF3001XL.
Specifications for Fass NDTSF18290F240G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | NDTSF18290F240G |
| Included Components | TSF18290F240G Fuel System + SK5501 Fuel Sump |
| Flow / Pressure | ~240 GPH @ ~65 PSI (pump rating) |
| Supported Power | ~900–1200 HP (application dependent) |
| Filtration | 2-micron absolute; water separation; air/vapor removal |
| UPC | 850044106691 (component: TSF18290F240G; kit-specific UPC not published) |
| GTIN | 850044106691 |
| Package Dimensions (W×H×D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (Standard Ground) |
| Prop 65 | WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
