Product Description
Install a 290GPH FASS system on your 6.4L Powerstroke without dropping the tank. The FASS NDTSF16290G No Drop Series bundles a high-flow Titanium Signature Series system with a return-style sump so you get maximum fuel delivery and dramatically simplified installation.
- Flow Rate: 290 GPH (typical 6.4L operating pressure ~8–10 PSI)
- Air/vapor separation + water separation
- 2-micron absolute filtration to help protect injectors
- Includes FASS Fuel Sump to avoid tank removal
- Supports ~1200–1500 HP builds
- Limited Lifetime Warranty (per manufacturer)

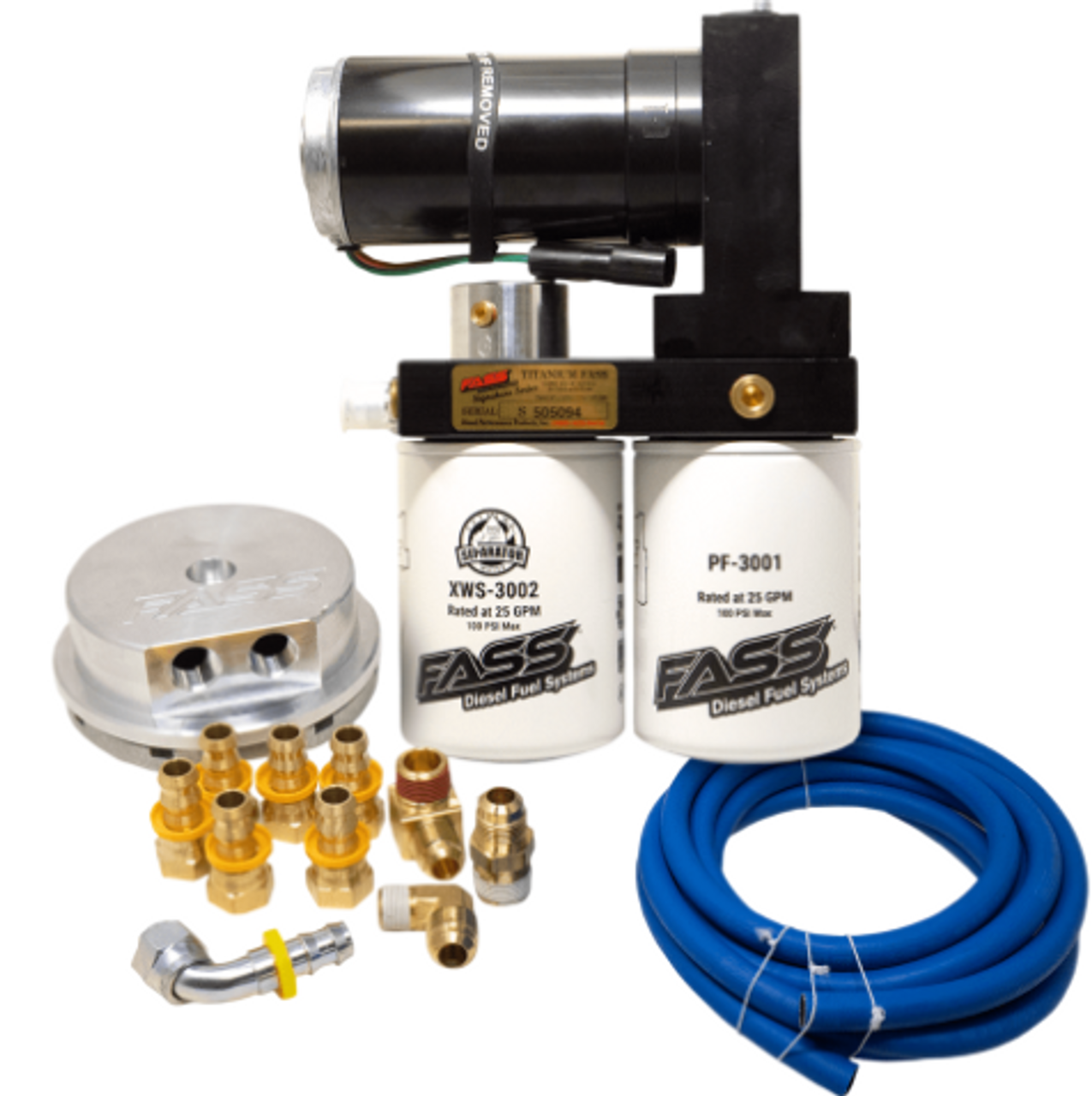

What’s in the box
- TSF16290G — Titanium Signature Series Fuel System (2008–2010 6.4L)
- SK5501 — FASS Return-Style Diesel Fuel Sump Kit
- All major hardware/brackets as supplied by FASS
Fitment
2008–2010 Ford F-250 / F-350 / F-450 6.4L Powerstroke. Designed for high-demand builds in the ~1200–1500 HP range.
Cross-Reference / Related FASS Items (CPP Diesel Only)
- FASS NDTSF16100G — No Drop (Stock–600HP)
- FASS NDTSF16165G — No Drop (600–1000HP)
- FASS NDTSF16250G — No Drop (900–1200HP)
- FASS NDTSPF16290G — No Drop PLUS (same HP; upgraded pump)
- FASS TSPF16290G — Titanium Signature Series PLUS (pump-only)
- Filters & service parts: XWS3002 water separator, PF3001 particulate filter, XWS3002XL & PF3001XL XL filters, FLP3000 fleet filter pack
- Cold weather add-ons: HK1001 heater kit, HKS1001 dual-heater splitter
Installation Instructions
Download current FASS No-Drop & Titanium Signature Series installation manuals here: https://www.fassride.com/manuals
FAQs
How much flow and pressure does this kit provide?
The included TSF16290G delivers 290 GPH and typically runs around 8–10 PSI on the 6.4L platform.
Do I need to drop the fuel tank?
No. The kit includes the SK5501 return-style sump so you can plumb the return directly to the tank and avoid tank removal.
Which filters should I use?
Use the XWS3002 water separator with the PF3001 particulate filter (or the XL pair: XWS3002XL + PF3001XL).
What horsepower range will this support?
It’s aimed at ~1200–1500 HP builds on the 6.4L Powerstroke.
Specifications for Fass NDTSF16290G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | NDTSF16290G |
| Vehicle Fitment | 2008–2010 Ford F-250 / F-350 / F-450 6.4L Powerstroke |
| Flow / Pressure | 290 GPH (typical ~8–10 PSI on 6.4L) |
| Filtration | 2-micron absolute; air/vapor & water separation |
| Included Components | TSF16290G Fuel System + SK5501 Fuel Sump |
| Package Dimensions (W×H×D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (Standard Ground) |
| UPC (Kit) | Not published by manufacturer |
| GTIN (Kit) | Not published by manufacturer |
| UPC (TSF16290G) | 850044106622 |
| GTIN (TSF16290G) | 0850044106622 |
| UPC (SK5501) | 850044137527 |
| GTIN (SK5501) | 0850044137527 |
| Prop 65 | WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
